Thermaltake

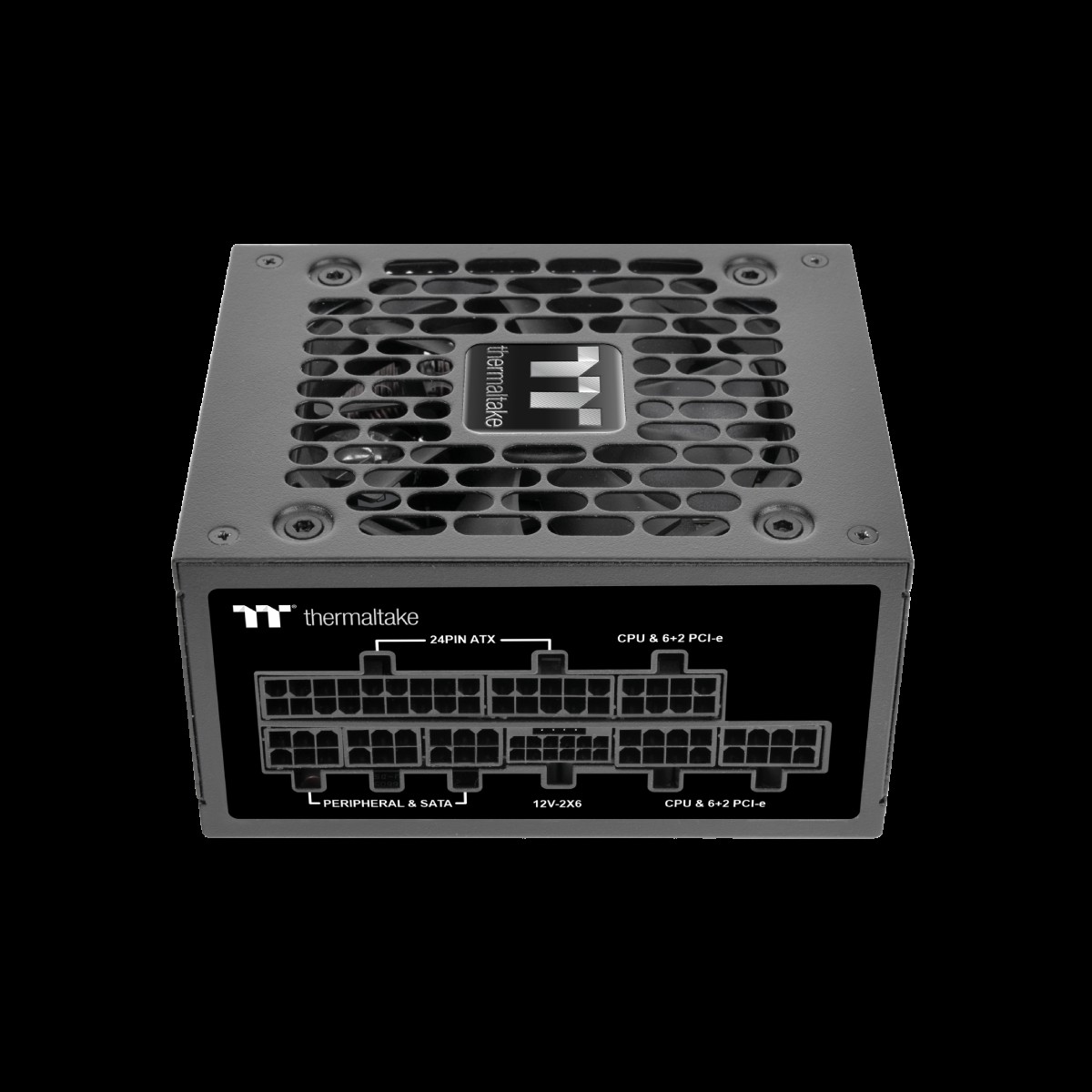

Thermaltake Toughpower SFX Platinum 850W - TT Premium Edition power

Name: Thermaltake Toughpower SFX Platinum 850W - TT Premium Edition power
Brand: Thermaltake

Toughpower SFX Platinum series is 80 PLUS Platinum certified and compatible with ATX 3.1 specifications. Designed with a native 12V-2x6 connector. Ports & interfaces Motherboard power connector: 24-pin ATX Peripheral (Molex) power connectors (4-pin): 4 Motherboard power cable length: 30 cm Number of SATA power connectors: 8 SATA power cable length: 750,600,450,300 mm Peripheral (Molex) power cable length: 750,600,450,300 mm PCI Express power connectors (6+2 pin): 2 PCI Express power connectors (12+4 pin): 1 CPU power connector (4+4 pin): Yes CPU power cable length: 40 cm Floppy drive power connector: 1 Floppy disk drive connector: Yes Cabling type: Fully-Modular Weight & dimensions Width: 125 mm Depth: 103.8 mm Height: 63.5 mm Power Total power: 850 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Input current: 15 - 8 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 120 W Combined power (+12V): 850 W Combined power (+5V): 120 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 12.5 W Max output current (+3.3V): 18 A Max output current (+12V): 70.83 A Max output current (+5V): 18 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 2.5 A Hold time: 17 ms Efficiency: 92% Power Good signal delay range: 100 - 150 ms Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage Operational conditions Operating temperature (T-T): 5 - 40 °C Storage temperature (T-T): -40 - 55 °C Operating relative humidity (H-H): 20 - 85% Storage relative humidity (H-H): 10 - 95% Packaging data Package type: Box Design Product colour: Black Cooling type: Active Fan diameter: 9 cm Number of fans: 1 fan(s) On/off switch: Yes Performance Purpose: PC Power supply unit (PSU) form factor: CFX 80 PLUS certification: 80 PLUS Platinum ATX version: 3.1 Bearing technology: FDB Mean time between failures (MTBF): 100000 h Safety regulation & standards Safety: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCMVis mere
