LevelOne AVF-1101 moltiplicatore AV Trasmettitore AV Nero - LevelOne

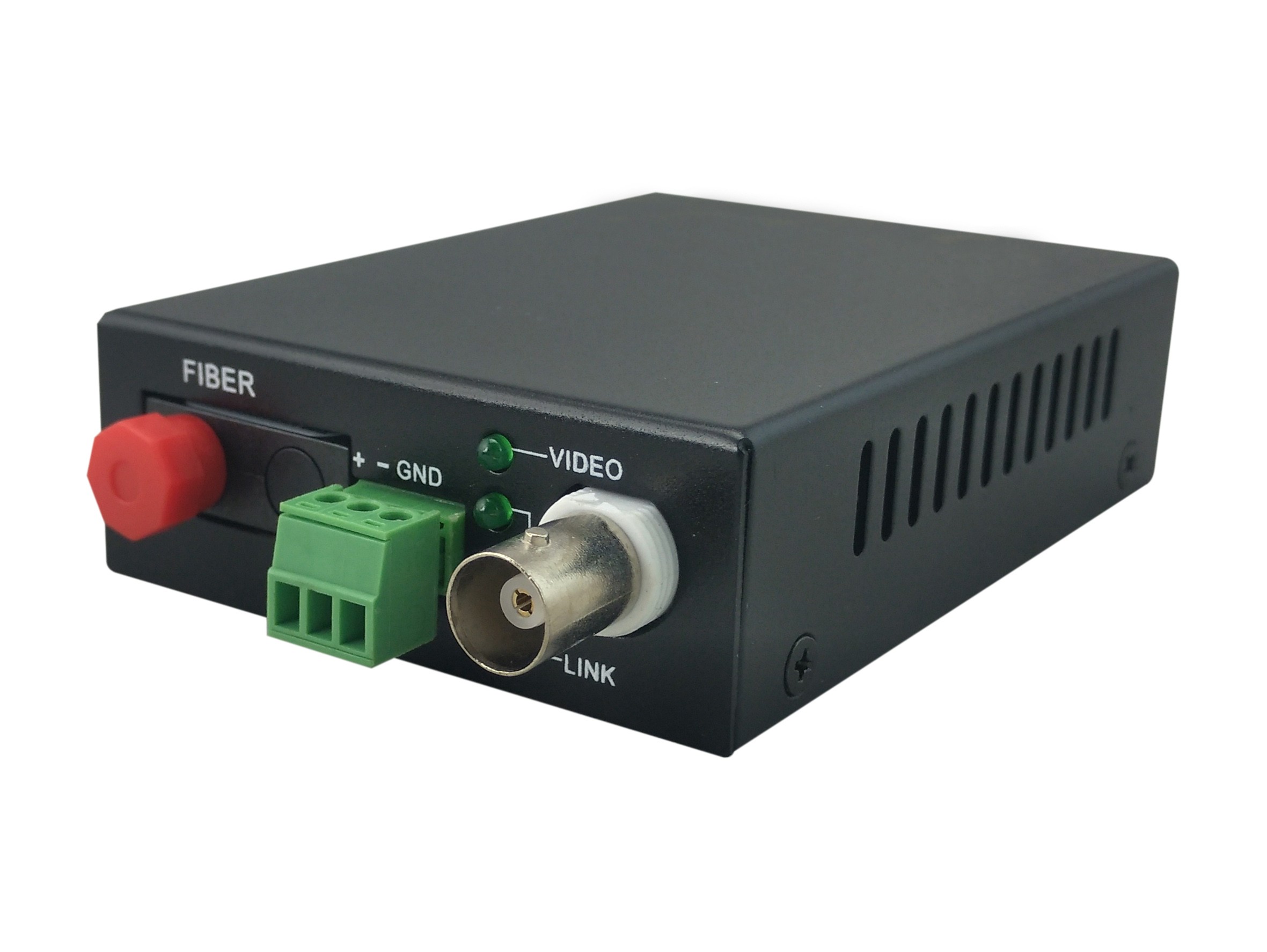

The LevelOne AVF Video over Fiber Converter series is designed to transmit composite video signals over long distances via optical fibre. On the transmitting side, video signals are digitalized and converted to optical signals, then transmitted over the fibre link to the receiver. The receiver then converts the optical signal back to analogue and displays the transmitted images on a monitor. LevelOne’s AVF solutions provide analogue surveillance and signage systems with the high quality images and long-distance transmission achievable through optical fibre, enhancing the capabilities of a traditional deployment or upgrading a legacy system. An ideal solution for analogue surveillance and Video Wall System applications. Technical details Country of origin: China Ports & interfaces Connectivity technology: Wired Fiber optic connector: FC BNC input ports: 1 Weight & dimensions Width: 70 mm Depth: 25 mm Height: 90 mm Weight: 460 g Power Operating voltage: 5 V Input current: 3 A Power consumption (typical): 12 W Operational conditions Operating temperature (T-T): -20 - 70 °C Operating relative humidity (H-H): 0 - 95% Packaging data Package width: 185 mm Package depth: 62 mm Package height: 275 mm Package weight: 600 g Package type: Box Packaging content AC adapter included: Yes Quick start guide: Yes Features Type: AV transmitter Maximum transfer distance: 20000 m Fiber optic wavelengths supported: 1470-1610,1310 nm LED indicators: Yes Bandwidth: 6.5 MHz Plug and Play: Yes RX sensitivity: -26 dB Impedance: 75 Signal-to-Noise Ratio (SNR): 60 dB Linearity: 1.3%DG, 1.3°DP Uncorrectable Bit Error Rate (UBER): < 1 per 10^9 bits read Product colour: Black Certification: CE, FCC Logistics data Master (outer) case gross weight: 11.5 kg Products per master (outer) case: 17 pc(s)Näytä lisää
alk. 305,37 €
1 tarjous
Tarjous
Kaikki hinnat sis. alv:n; toimituskulut kaupan syötteen mukaan. Klikkaus vie suoraan kaupan tuotesivulle.
Hintakehitys (alin hinta)
2026-07-12 – 2026-07-16min 305,37 € · max 305,37 €
Tuotetiedot
- Merkit
- Level One
- GTIN
- 04015867206690
