Trendnet

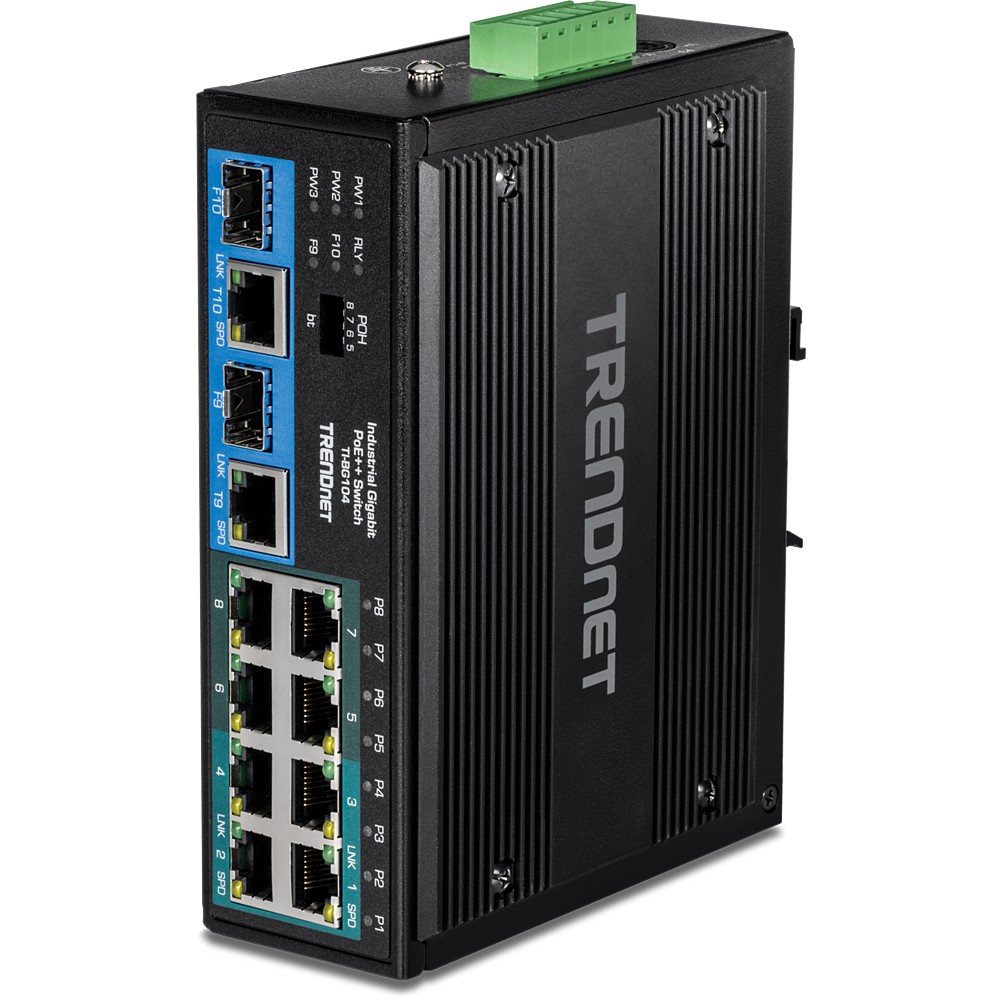

Trendnet TI-BG104 network switch Unmanaged Gigabit Ethernet (10/100/
TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° 75° C (-40° 167° F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches by delivering up to 90W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls. Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 10 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Installed SFP+ modules quantity: 0 Gigabit Ethernet (copper) ports quantity: 10 Combo SFP ports quantity: 2 Weight & dimensions Width: 122 mm Depth: 48 mm Height: 158 mm Weight: 630 g Power Power source: DC/PoE AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 2 A Input voltage: 48 - 56 V Power consumption (max): 6.2 W Operational conditions Operating temperature (T-T): -40 - 75 °C Network Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T Full duplex: Yes Flow control support: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s Auto-negotiation: Yes MAC address auto-learning supported: Yes MAC address auto-aging supported: Yes Data transmission MAC address table: 11000 entries Switching capacity: 20 Gbit/s Forwarding rate: 8.9 Mpps Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 10000 Packet buffer memory: 2 MB Certificates Compliance certificates: CE Certification: FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 Management features Switch type: Unmanaged Packaging content Quick start guide: Yes Design Rack mounting: No Product colour: Black Housing material: Metal LED indicators: Yes International Protection (IP) code: IP30 DIN rail mounting: Yes Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet plus (PoE+) ports quantity: 4 Power over Ethernet 4PPoE (PoE++) ports quantity: 4 Total Power over Ethernet (PoE) budget: 360 W Performance Mean time between failures (MTBF): 510304 h Sustainability Sustainability compliance: YesNäytä lisää
Tarjous
Kaikki hinnat sis. alv:n; toimituskulut kaupan syötteen mukaan. Klikkaus vie suoraan kaupan tuotesivulle.
Tuotetiedot
- Merkit
- Trendnet
- GTIN
- 00710931162295
