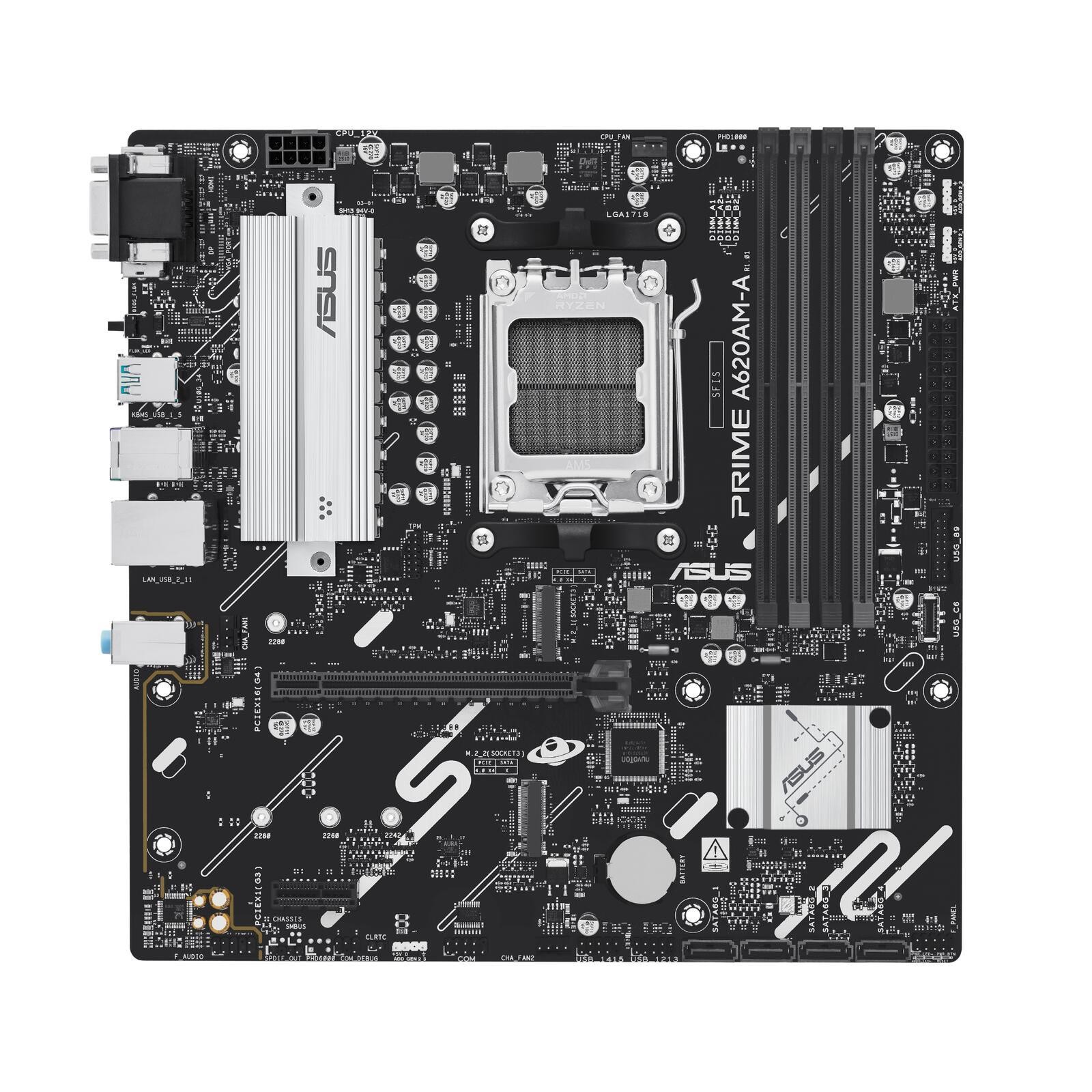

ASUS PRIME A620AM-A-CSM AMD A620A Socket AM5 micro ATX - ASUS PRIME
A620AM-A-CSM ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME A620AM-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Maximum internal memory: 256 GB Memory slots type: DIMM Memory channels: Dual-channel ECC ompatibility: ECC & Non-ECC Unbuffered memory: Yes Weight & dimensions Width: 244 mm Depth: 244 mm Network Wi-Fi: No Ethernet LAN: Yes Ethernet interface type: Gigabit Ethernet Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 1 Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of COM connectors: 1 TPM connector: Yes 12V power connector: Yes RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0 Ethernet LAN (RJ-45) ports: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 DVI-D ports quantity: 0 PS/2 ports quantity: 1 DisplayPorts quantity: 1 Storage controllers Supported storage drive interfaces: M.2, SATA III Supported storage drive types: HDD & SSD Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Packaging data Package width: 275 mm Package depth: 275 mm Package height: 67.5 mm Package weight: 1.1 kg Packaging content Cables included: SATA Screws included: Yes Expansion slots PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 4.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Graphics Parallel processing technology support: Not supported Features Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Motherboard chipset: AMD A620A Audio output channels: 7.1 channels Windows operating systems supported: Windows 10 x64, Windows 11
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Price history (lowest price)
2026-07-12 – 2026-07-17min £127.47 · max £127.83
Product details
- Brands
- Asus
- GTIN
- 04711636234405
