LevelOne

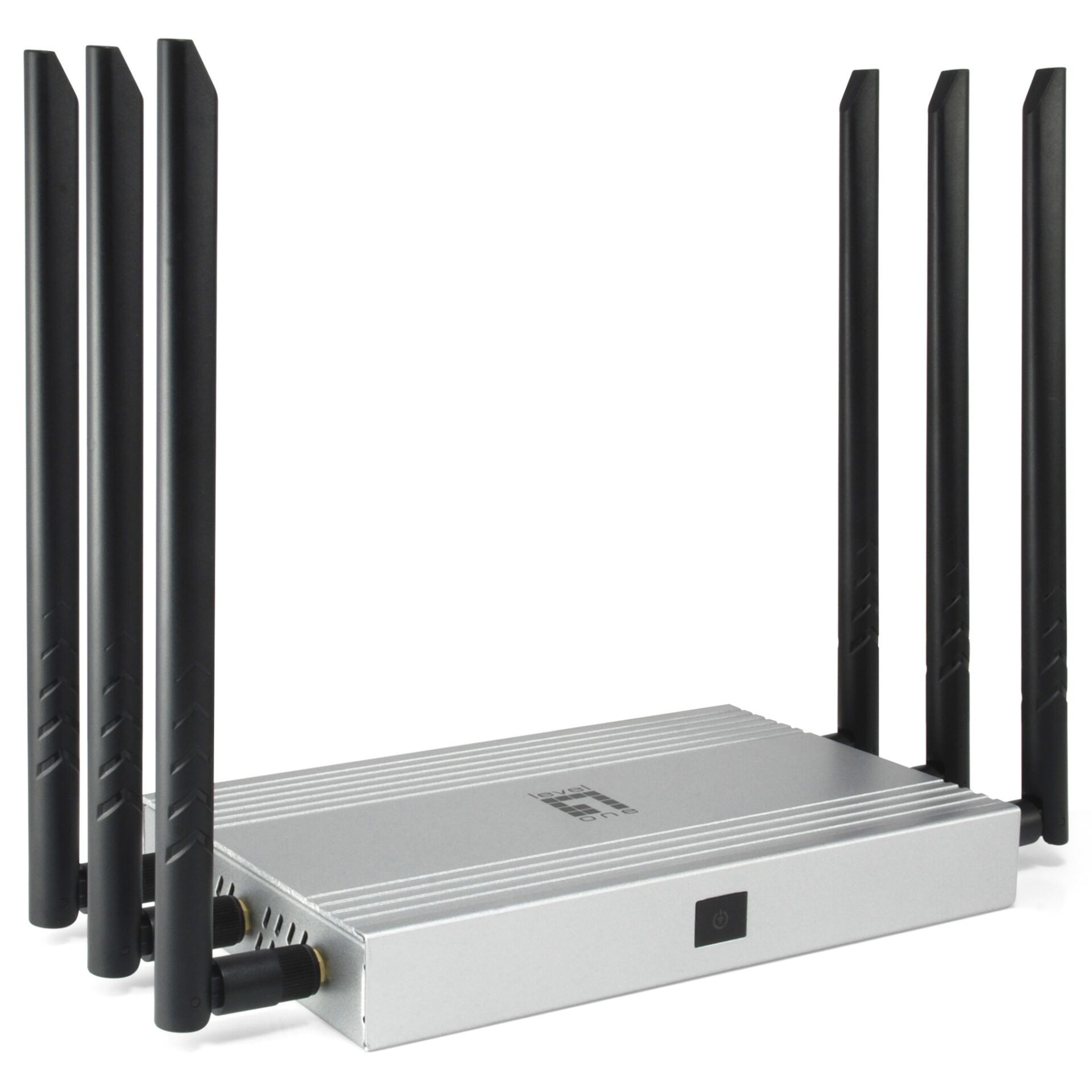

LevelOne AC1200 Dual Band Wireless Access Point, Desktop, Controller
The LevelOne WAP-8021 is a managed, dual-band wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. A fast, easy and secure access point for a wide variety of network requirements. Ports & interfaces Ethernet LAN (RJ-45) ports: 5 USB 2.0 ports quantity: 2 WAN connection: Ethernet (RJ-45) Weight & dimensions Width: 128 mm Depth: 198 mm Height: 28 mm Weight: 660 g Power AC input voltage: 12 V Input current: 1.5 A Power consumption (typical): 17 W Operational conditions Operating relative humidity (H-H): 10 - 90% Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Storage relative humidity (H-H): 5 - 90% Packaging data CD manual: Yes Package width: 220 mm Package depth: 285 mm Package height: 65 mm Package weight: 1.32 kg Package type: Box Security Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK Service Set Identifier (SSID) features: SSID broadcast on/off Number of SSID supported: 4 Management features Web-based management: Yes Firmware upgradeable: Yes Packaging content AC adapter included: Yes Cables included: LAN (RJ-45) Quick start guide: Yes Antenna Antennas quantity: 6 Antenna gain level (max): 6 dBi Design Placement: Table Product colour: Silver Reset button: Yes Country of origin: China Certification: CE Internal: No Features 2.4 GHz: Yes 5 GHz: Yes Maximum data transfer rate: 1200 Mbit/s Maximum data transfer rate (5 GHz): 867 Mbit/s Ethernet LAN data rates: 10,100,1000 Mbit/s Frequency band: 2.4 - 2.4835, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.825 GHz Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Number of users: 100 user(s) Channels quantity: 165 channels Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK Wi-Fi Multimedia (WMM)/(WME): Yes Operating modes: Access Point (AP),Gateway,Repeater,WISP Flow control support: Yes Quality of Service (QoS) support: Yes Logistics data Harmonized System (HS) code: 85176990 Master (outer) case width: 300 mm Master (outer) case length: 685 mm Master (outer) case height: 245 mm Master (outer) case gross weight: 14 kg Products per master (outer) case: 10 pc(s)Show more
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Product details
- Brands
- LevelOne
- GTIN
- 04015867200605
