MEAN WELL Stromversorgung alimentatore per computer 754 W 1U

Name: MEAN WELL Stromversorgung alimentatore per computer 754 W 1U
Brand: Mean Well

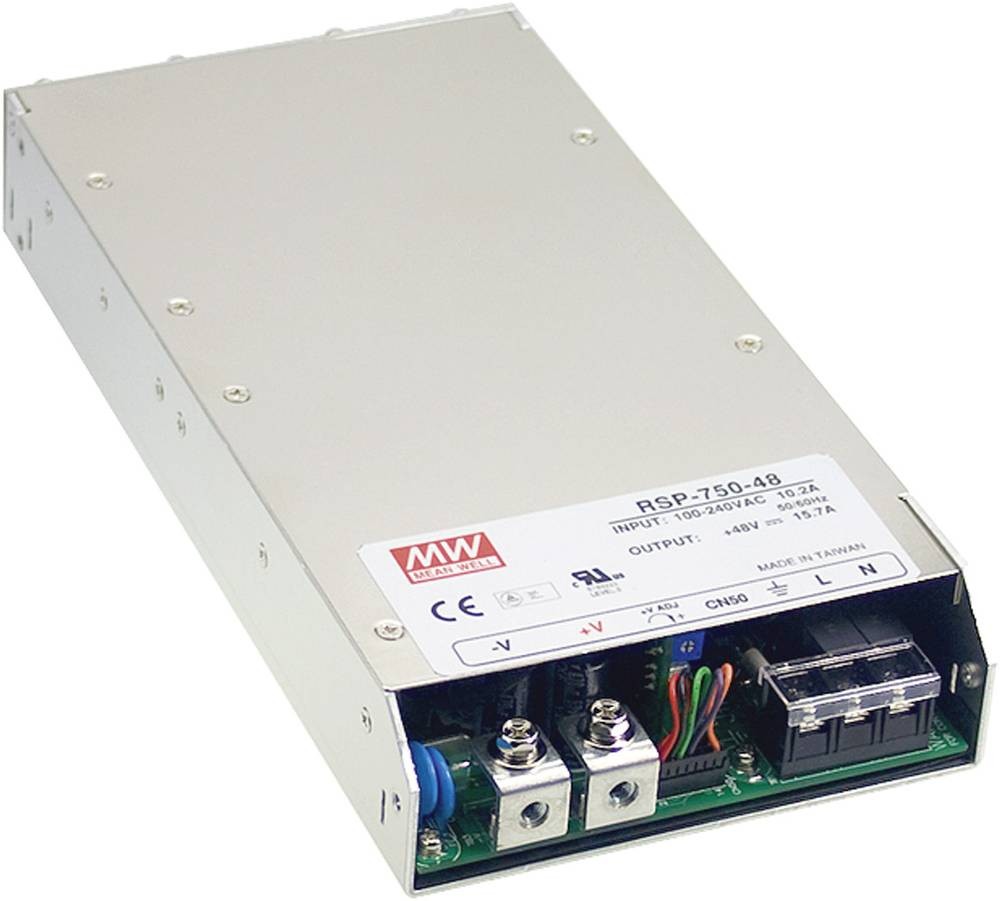

- Universal AC input / Full range - Built-in active PFC function - High efficiency up to 92% - Forced air cooling by built-in DC fan - Output voltage and constant current level programmable - Built-in remote ON-OFF control / remote sense / - auxiliary power / DC OK signal - Protections: Short circuit / Overload / Over voltage / Over temperature - Optional conformal coating RSP-750 is a 750W single output enclosed type AC/DC power supply. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70 °C . Moreover, RSP-750 provides vast design flexibility by equipping various built-in functions such as the output programming, remote ON-OFF control, auxiliary power, etc. Weight & dimensions Width: 127 mm Depth: 250 mm Height: 41 mm Weight: 1.64 kg Power Total power: 754 W AC input voltage: 90 - 264 V AC input frequency: 47 - 63 Hz Power factor: 0.97 Power Factor Correction (PFC) type: Active Hold time: 16 ms Efficiency: 92% Operational conditions Operating temperature (T-T): -30 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 20 - 90% Other features Rise time: 50 ms Design Product colour: Metallic Cooling type: Active Performance Power supply unit (PSU) form factor: 1U Mean time between failures (MTBF): 120800 h Safety regulation & standards Safety: EN60950-1, UL60950-1Show more

from £150.15

1 offer

See all offers
