Phoenix Contact

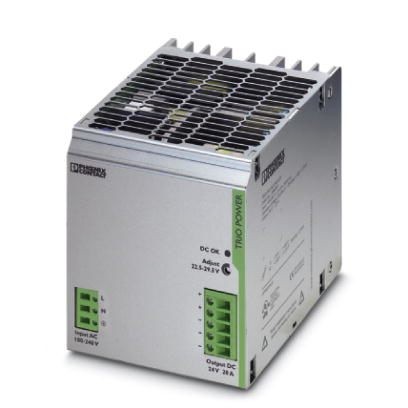

Phoenix Contact TRIO-PS/1AC/24DC/20 power supply unit 480 W Grey -

Name: Phoenix Contact TRIO-PS/1AC/24DC/20 power supply unit 480 W Grey -
Brand: Phoenix Contact

Phoenix Contact TRIO-PS/1AC/24DC/20. Total power: 480 W, AC input voltage: 85 - 264 V, AC input frequency: 45 - 65 Hz. Mean time between failures (MTBF): 915000 h. Product colour: Grey. Width: 115 mm, Depth: 152.5 mm, Height: 130 mm Weight & dimensions Width: 115 mm Depth: 152.5 mm Height: 130 mm Weight: 2.2 kg Power Total power: 480 W AC input voltage: 85 - 264 V AC input frequency: 45 - 65 Hz Maximum input current (@110V): 4.6 A Maximum input current (@220V): 2.4 A Power factor: 0.99 Efficiency: 91% Operational conditions Operating temperature (T-T): -25 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 0 - 95% Design Product colour: Grey LED indicators: Yes Performance AWG wire size (min): 20 AWG wire size (max): 10 Mean time between failures (MTBF): 915000 hShow more

from £192.76

1 offer

See all offers
