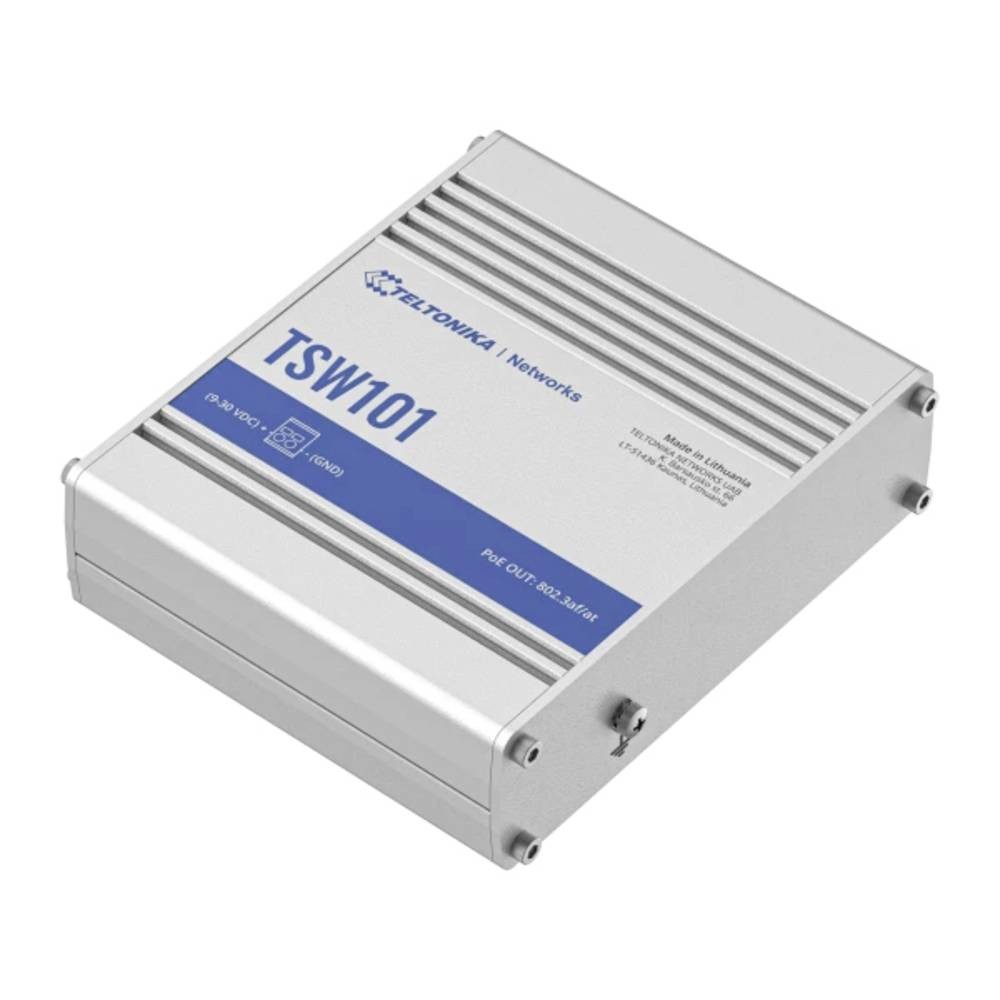

Teltonika TSW101000000 TSW101 Ethernet Switch
AUTOMOTIVE POE+ SWITCH Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution. Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 5 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Power connector: Terminal block (2-pin) Weight & dimensions Width: 115 mm Depth: 32 mm Height: 95 mm Weight: 354 g Power Power source: DC Input voltage: 9 - 30 V Power consumption (typical): 0.64 W Power consumption (max): 2.31 W Operational conditions Operating temperature (T-T): -40 - 75 °C Operating relative humidity (H-H): 10 - 90% Network Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u 10G support: No Auto MDI/MDI-X: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s Data transmission MAC address table: 2000 entries Switching capacity: 10 Gbit/s Jumbo frames support: Yes Jumbo frames: 9216 Certificates Certification: CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark Design Product colour: Metallic Housing material: Aluminium LED indicators: Power, Status International Protection (IP) code: IP30 Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) type supported: Passive PoE Power over Ethernet (PoE) ports quantity: 4 Power over Ethernet (PoE) power per port: 30 W Total Power over Ethernet (PoE) budget: 120 W Logistics data Harmonized System (HS) code: 851762Show more
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Product details
- Brands
- Teltonika
- GTIN
- 04779051840113
