V-TAC VT-81014 23430 Bewegungssensor

Name: V-TAC VT-81014 23430 Bewegungssensor
Brand: V-TAC

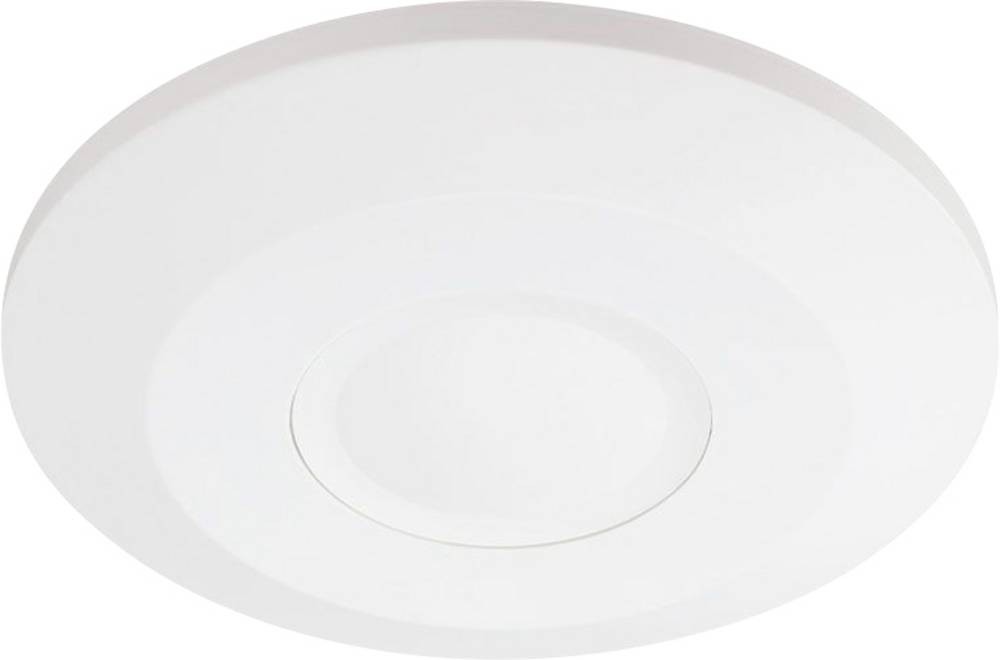

V-TAC VT-81014 surface-mounted ceiling presence sensorThe V-TAC VT-81014 is a white, round presence sensor designed for surface mounting on a ceiling. Its Ø76 mm housing has a slim 25 mm profile, making the control component visually discreet. The exact version is identified by model VT-81014, SKU 23430 and EAN 3800170219618.Microwave detection and lighting controlThis unit uses microwave technology and has a stated detection distance of up to 3 m. When presence is detected, it can control a connected lighting circuit. Both the delay time and the ambient-light threshold below 3–2000 lx are adjustable, allowing the switching behaviour to be configured for the installation location. These settings should be selected with the room and connected circuit in mind.Verified electrical limitsinput supply: AC 110–240 V, 50/60 Hz,load up to 1000 W for LED and halogen lighting,load up to 2000 W for traditional lighting,IP20 protection rating,product weight: 0.16 kg.The 1000 W figure is the permitted LED or halogen load, not the sensor’s own power consumption. Check the installation parameters and the load on the controlled circuit before connection.Interior automationUse this ceiling sensor to automate lighting in interior spaces such as circulation areas, utility rooms or an entrance to a living area. IP20 does not establish outdoor use or suitability for locations exposed to water. The simple white circular housing sits neatly against a light ceiling and provides a neutral technical finish rather than a decorative focal point.Show more

from £30.64

1 offer

↑ Best price up 7% in the last 30 days

See all offers
