Eaton

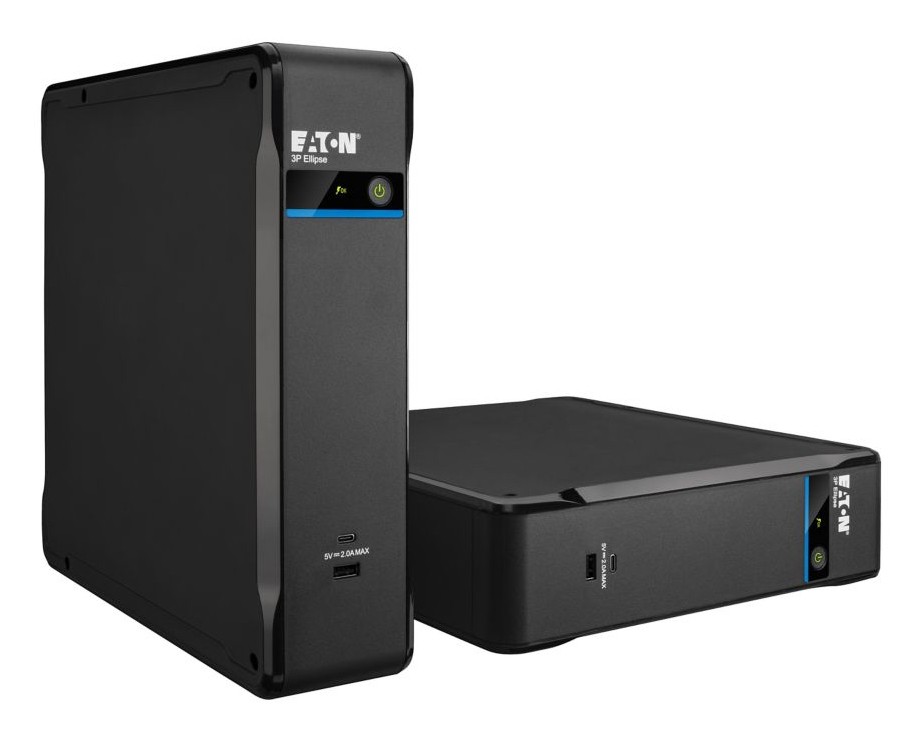

EATON 3P ELLIPSE 1300 USB DIN .
Eaton 3P Ellipse UPS USB DIN, 1300 VA, 840 W, Input: C14, Outputs: (4) Schuko, (4) Schuko surge only, USB charge, Tower Ports & interfaces AC outlet types: C13 coupler AC outlets quantity: 8 AC outlet(s) USB port: Yes USB 2.0 ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 Weight & dimensions Width: 81 mm Depth: 312 mm Height: 305 mm Weight: 7 kg Operational conditions Operating temperature (T-T): 0 - 40 °C Packaging data Package type: Box Certificates Waste Electrical and Electronic Equipment (WEEE) compliance: Yes Compliance certificates: CB, CE, RoHS, WEEE Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm Packaging content Cables included: USB cable Quick installation guide: Yes Battery Battery capacity: 7 Ah Battery voltage: 12 V Other features Input connection type: C14 Nominal input voltage: 220-240 V Relative humidity: 0 - 95% Design Form factor: Tower Product colour: Black Control type: Buttons Display type: LED Features UPS topology: Standby (Offline) Output power capacity: 1.3 kVA Output power: 840 W Waveform: Stepwise Input operation voltage (min): 161 V Input operation voltage (max): 284 V Input frequency: 46/70 Hz Output operation voltage (min): 161 V Output operation voltage (max): 284 V Output frequency: 50/60 Hz Power consumption (average operating): 26 W Number of input phases: 1 Number of output phases: 1 Efficiency: 97% Efficiency (ECO mode): 97% Output power factor: 0.6 Noise level: 25 dB Surge protection: Yes Auto shut-off: YesShow more
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Price history (lowest price)
2026-07-12 – 2026-07-16min €294.62 · max €294.62
Product details
- Brands
- Eaton
- GTIN
- 03553340621390
