Equip HDMI 2.0 Active Optical Cable, M/M, 70m - Equip HDMI 2.0 Active

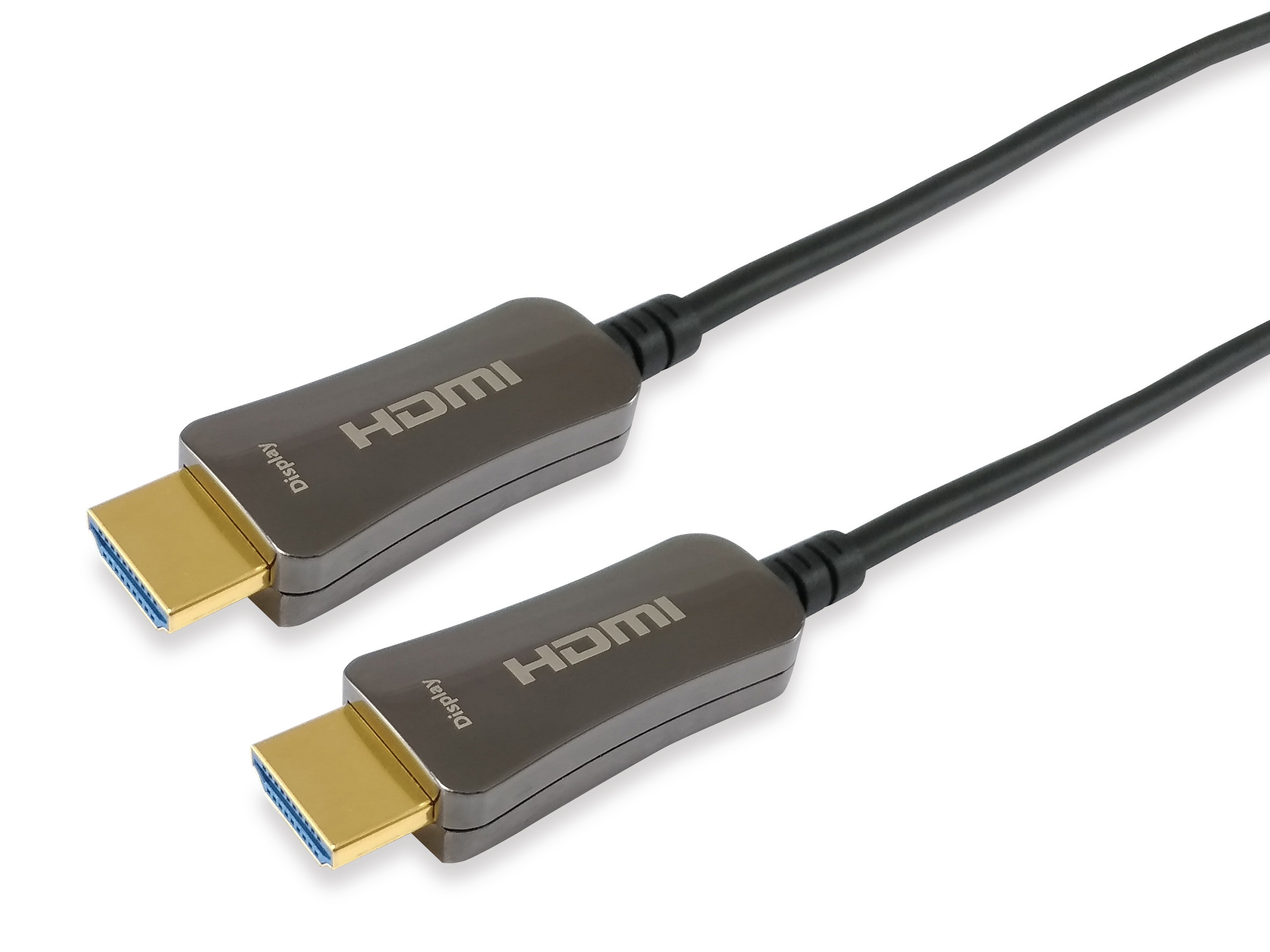

Name: Equip HDMI 2.0 Active Optical Cable, M/M, 70m - Equip HDMI 2.0 Active
Brand: equip

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply. Weight & dimensions Cable diameter: 4.8 mm Packaging data Quantity per pack: 1 pc(s) Package width: 335 mm Package depth: 326 mm Package height: 74 mm Package weight: 1.44 kg Package type: Box Certificates Certification: CE Features Cable length: 70 m Connector 1: HDMI Type A (Standard) Connector 2: HDMI Type A (Standard) Connector 1 gender: Male Connector 2 gender: Male Product colour: Black Connector 1 form factor: Straight Connector 2 form factor: Straight HDMI version: 2.0 3D: Yes Audio Return Channel (ARC): Yes HDMI Ethernet channel: Yes HDCP: Yes HDCP version: 2.0 Data transfer rate: 18 Gbit/s Cable material: Copper Plug and Play: Yes Logistics data Country of origin: China Harmonized System (HS) code: 84733080 Master (outer) case width: 480 mm Master (outer) case length: 480 mm Master (outer) case height: 420 mm Master (outer) case gross weight: 29 kg Products per master (outer) case: 16 pc(s)Show more

from €130.15

1 offer

See all offers
