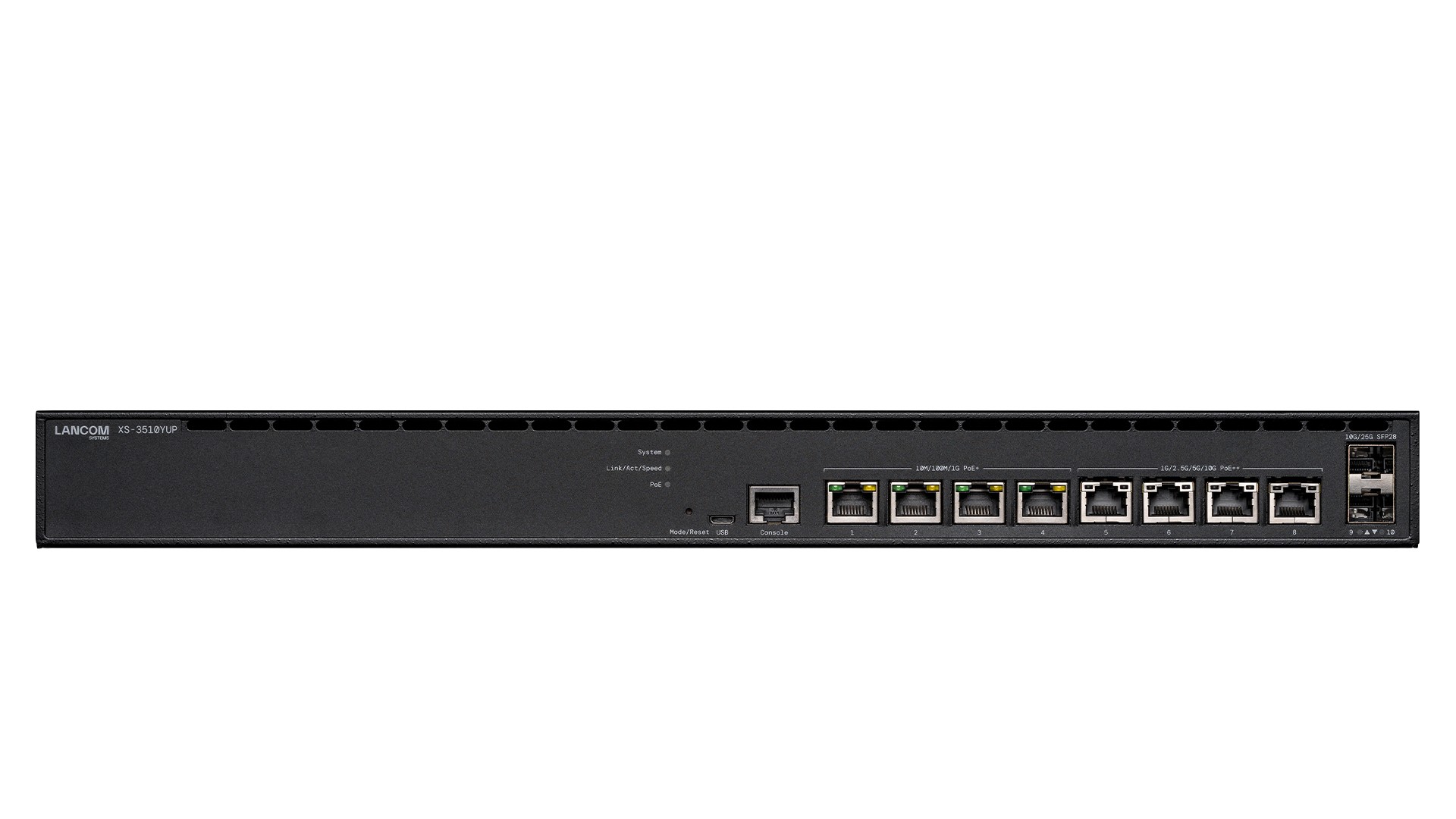

LANCOM XS-3510YUP Managed L3-Lite multi-gigabit PoE++ access switch
10G multi-Gigabit PoE++ access switch for small scenarios With the LANCOM XS-3510YUP, you can reliably integrate network components with high power and performance requirements, such as Wi-Fi 7 access points, into your network in smaller infrastructures.Four 1 Gigabit Ethernet and 10 multi-Gigabit Ethernet ports with Power over Ethernet (PoE+ resp. PoE++) are available for networking up to eight PoE-capable end devices without additional electrical installation. Two additional SFP28 uplink ports enable fast and future-proof uplink speeds of up to 25 Gbps. This 10-port multi-Gigabit access switch offers basic layer 3 functions, such as static routing and DHCP server, and numerous security functions, such as configurable access controls in accordance with IEEE 802.1X. Depending on your preference, you can switch between the management options web-based GUI, CLI, or the LANCOM Management Cloud (LMC) for centralized, automated network management. Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500) Gigabit Ethernet (copper) ports quantity: 4 2.5G Ethernet (copper) ports quantity: 4 Console port: RJ-45 SFP28 ports quantity: 2 Power connector: AC-in jack Weight & dimensions Width: 442 mm Depth: 44 mm Height: 211 mm Weight: 2.35 kg Power Power source: AC Power supply included: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power consumption (max): 35 W Operational conditions Operating temperature (T-T): 0 - 40 °C Operating relative humidity (H-H): 10 - 90% Protocols GARP VLAN Registration Protocol (GVRP): Yes Network Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 10G support: Yes Cable types supported: Cat6, Cat7 Port mirroring: Yes IP routing: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Rate limiting: Yes VLAN support: Yes Virtual LAN features: Voice VLAN Number of VLANs: 4093 Data transmission MAC address table: 16000 entries Throughput: 188 Gbit/s Static route: Yes Jumbo frames support: Yes Jumbo frames: 10240 Packaging data Package width: 570 mm Package depth: 400 mm Package height: 100 mm Package weight: 3.75 kg Security DHCP features: DHCP server Access Control List (ACL): Yes IGMP snooping: Yes IGMP entries: 1024 IGMP proxy: Yes MAC address filtering: Yes Static port security: Yes SSH/SSL support: Yes Authentication type: IEEE 802.1x, RADIUS, TACACS+ Management features Switch type: Managed Switch layer: L2/L3 Quality of Service (QoS) support: Yes Configuring Location Settings (CLI): Yes System event log: Yes MIB support: MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB Packaging content Manual: Yes Design Rack mounting: Yes Form factor: 1U Product colour: Black Housing material: Metal LED indicators: Yes Number of fans: 2 fan(s) Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) ports quantity: 4 Total Power over Ethernet (PoE) budget: 370 W Logistics data Customs product code (TARIC): 85176200 Country of origin: Taiwan Multicast features Multicast support: Yes Multicast Listener Discovery (MLD) snooping: Y
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Price history (lowest price)
2026-07-12 – 2026-07-16min €2,655.94 · max €2,655.94
Product details
- Brands
- LANCOM
- GTIN
- 04044144618895
