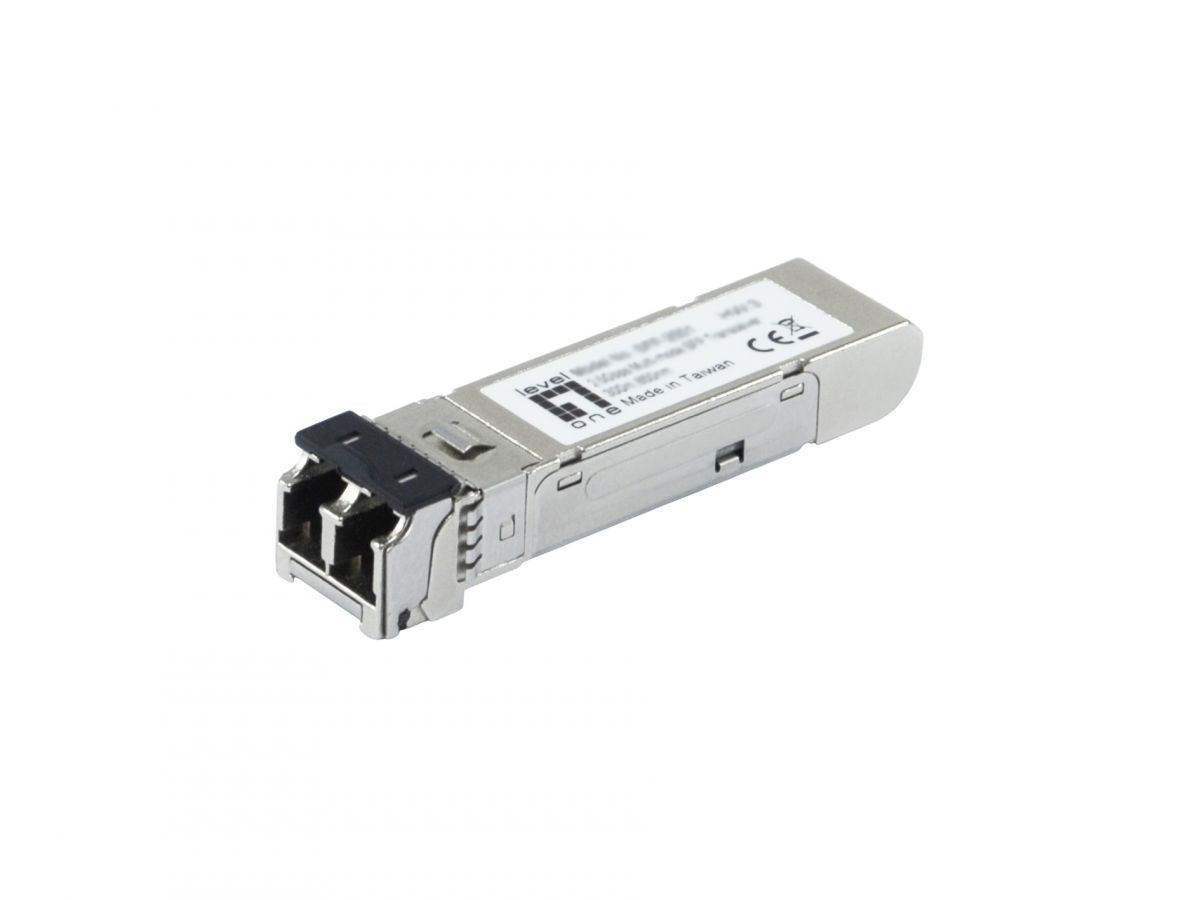

LevelOne 2.5Gbps Multi-mode Industrial SFP Transceiver, 300m, 850nm, -
The levelOne SFP-2601 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 2.5 Gbps data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-2601 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation. Weight & dimensions Width: 55.9 mm Depth: 13.4 mm Height: 13 mm Weight: 15.5 g Power Power consumption (typical): 1 W Operational conditions Operating temperature (T-T): -40 - 85 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 5 - 85% Storage relative humidity (H-H): 5 - 85% Packaging data Package width: 110 mm Package depth: 67 mm Package height: 25 mm Package weight: 41.66 g Certificates Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL Packaging content Quantity per pack: 1 pc(s) Performance SFP transceiver type: Fiber optic Maximum data transfer rate: 2500 Mbit/s Interface type: SFP Multi-mode fiber (MMF) supported: Yes Fiber optic connector: LC Fiber cable diameters supported (core/cladding): 50/125 µm Maximum transfer distance: 300 m Wavelength: 850 nm Tx power (min): -9 dBmW Tx power (max): -3 dBmW Copper ethernet cabling technology: 2.5GBASE Digital Diagnostics Monitoring (DDM): Yes Features Product colour: Silver Form factor: SFP Plug and Play: Yes Hot-swap: Yes Logistics data Pallet gross length: 80 cm Pallet gross width: 120 cm Pallet gross height: 164.4 cm Customs product code (TARIC): 8517620000 Master (outer) cases per pallet: 34 pc(s) Master (outer) case width: 365 mm Master (outer) case length: 343 mm Master (outer) case height: 250 mm Master (outer) case gross weight: 5.5 kg Products per master (outer) case: 100 pc(s) Country of origin: TaiwanShow more
Offer
All prices incl. VAT; shipping costs per shop feed. The click takes you directly to the shop's product page.
Product details
- Brands
- Level One
- GTIN
- 04015867240052
