NORLYS

Asker Pole Pro 1364AL LED garden pole light, 236 cm, 8 W, 3000 K, light grey RAL 9006 – NORLYS

Name: Asker Pole Pro 1364AL LED garden pole light, 236 cm, 8 W, 3000 K, light grey RAL 9006 – NORLYS
Brand: NORLYS

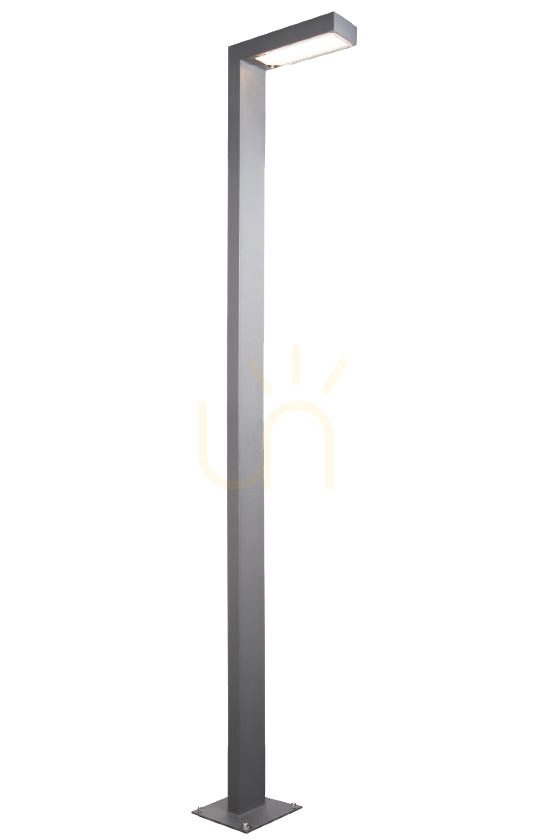

The Asker Pole Pro 1364AL is a pole light with an integrated LED head: a single-section column made of extruded aluminium profile, powder-coated in light grey RAL 9006 (listed by the maker as ALUMINIUM), ending in a horizontal arm with a flat head. It stands 236 cm tall, the column profile is 11 cm wide and the arm reaches 39 cm out from the column. How it lights a path and the ground around it The head uses a Ledil VSM lens with an IESNA type V distribution – wide and symmetrical, so the light spreads around the pole rather than in a narrow strip along the path. Norlys designed it for private grounds and parks. The ULOR value is 0.87%, meaning less than one per cent of the light goes upwards above the head. The Philips Fortimo LED module gives 3000 K, a warm white that keeps a garden and façades looking homely in the evening rather than cold and technical. A colour rendering index of Ra 70 is enough to light a path, but plants look less true to colour than under Ra 80 or 90 fittings. The whole light draws 8 W. It is not dimmable: it is switched on and off by an ordinary switch, a timer or a dusk sensor in the installation. Installation and service The column stands on a 24 cm base plate with four ø12 mm holes on a 200 × 200 mm pattern. The 116ZX0009 concrete anchor is not included and has to be bought separately. The light weighs 11 kg, and its side area of 0.258 m² is the figure needed when sizing the foundation for wind load. The terminals take cables up to 3 × 4 mm² and allow several lights to be looped, so one supply line feeds a row of poles along a path. The 5 A inrush current limits how many share one circuit: the maker gives 31 units on a B 10 A breaker and 50 on a B 16 A. The fitting is rated IP65 and IK06 and is protection class I, so it must be earthed and installed by a qualified electrician. The LED module (L90B10 lifetime 100,000 h) and the driver (50,000 h) are replaced by a professional service using the ZS1364xx0010 kit, so a failure does not mean replacing the whole pole.Show more

from 872,57 €

1 offer

See all offers
