Arcolectric (Bulgin Ltd.)
Arcolectric DPST, On-Off Rocker Switch Panel Mount - Arcolectric DPST,

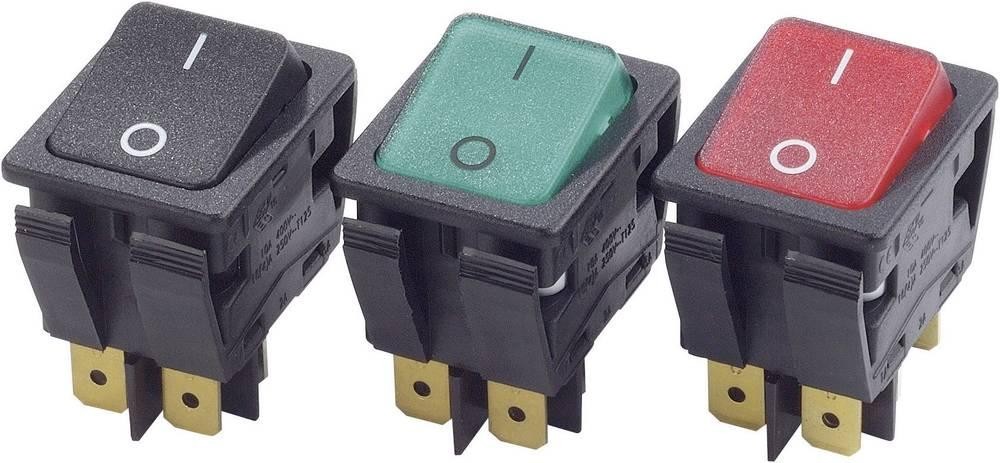

Splashproof, 6000 Series Rocker Switches A range of splashproof double pole rocker switches designed for panel mounting. The IP44 rated switches feature clever channels at each side of the Soft-line actuator directing any moisture or water droplets away from current-carrying parts. This unique feature makes the 6000 series of splash-proof rocker switches ideal for environments where equipment is exposed to damp or wet conditions. The latching on-off switches are available with a black body in a choice of illuminated or non- illuminated depending on the application and design requirements. Features and benefits I/O markings An option of red or green illumination 3 mm contact gap with positive break switching Easy touch rocker actuator Snap-in plastic prongs on the switch sides for secure panel retention 30 x 22.1 mm cut out Connection via push on receptacles DPST configuration AC Mains rated Typical applications for rocker switches Rocker switches are one of the most frequently used electrical switches in the market today. The splashproof 6000 series switches are ideal for applications where the presence of moisture is a possibility. Some of the most common areas are: Medical equipment Laboratory appliances Kitchen equipment FAQ Are the rocker switches easy to connect? Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear, so the connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required. Approvals ENEC; UL; CSAMeer tonen
Aanbieding
Alle prijzen incl. btw; verzendkosten volgens de feed van de shop. De klik leidt direct naar de productpagina van de shop.
Productdetails
- Merken
- Arcolectric (Bulgin Ltd.)
- GTIN
- 02050000221231
