DIGITUS

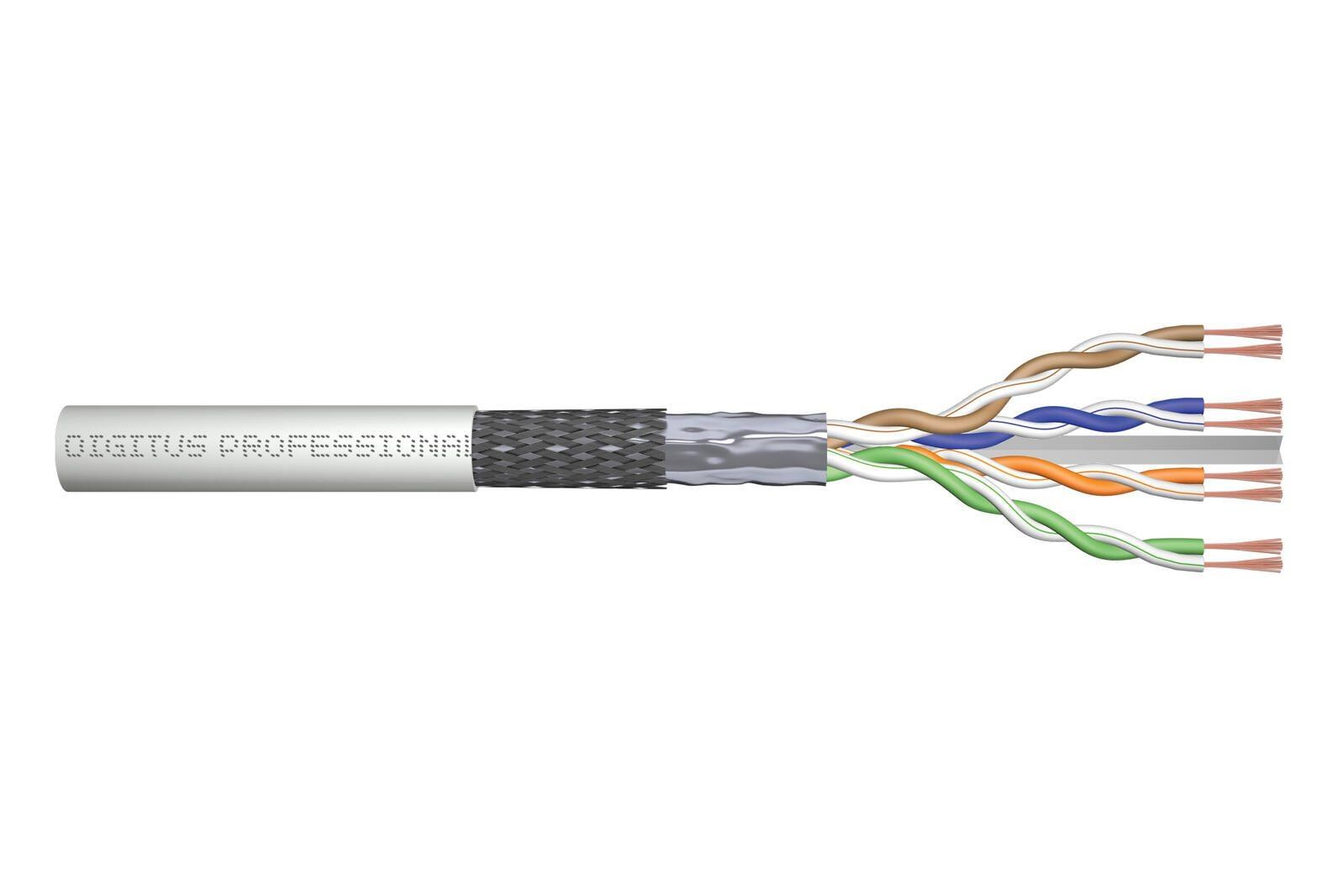

Digitus CAT 6 SF/UTP twisted pair patch cord, raw - Digitus CAT 6 SF/
Future-oriented standards and high-end quality for your network. - Suitable for direct assembly of RJ45 connectors in order to produce patch cords - Suitable for installations of class E cable lines, 250 MHz - According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-2-1 - Conductor: Copper (Cu) - PoE+ ready The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords. Weight & dimensions Outer diameter: 6.3 mm Operational conditions Operating temperature (T-T): -10 - 60 °C Storage temperature (T-T): -10 - 75 °C Packaging data Package width: 430 mm Package depth: 430 mm Package height: 200 mm Package weight: 12.3 kg Package volume: 36980 cm³ Packaging content Quantity per pack: 1 pc(s) Other features Input impedance: 100 Category: 6 Features Cable length: 305 m Cable standard: Cat6 Cable shielding: SF/UTP (S-FTP) Connector 1: No Connector 2: No Product colour: Grey Connector 1 gender: No Connector 2 gender: No Jacket material: Low smoke zero halogen (LSZH) Conductor material: Copper Twisted pair coupling type: 4x2 Cabling technology: 10GBase-T Networking standards: IEEE 802.3, IEEE 802.5 AWG wire size: 26/7 Data transfer rate: 10000 Mbit/s Frequency: 250 MHz Oil-resistant: Yes Country of origin: China Logistics data Harmonized System (HS) code: 84733080 Master (outer) case width: 450 mm Master (outer) case length: 450 mm Master (outer) case gross weight: 24.6 kg Master (outer) case height: 425 mm Products per master (outer) case: 2 pc(s) Master (outer) case volume: 86062.5 cm³ UK Trade Tariff code: 85444920 Sustainability Doesn't contain: HalogenMeer tonen
Aanbieding
Alle prijzen incl. btw; verzendkosten volgens de feed van de shop. De klik leidt direct naar de productpagina van de shop.
Productdetails
- Merken
- DIGITUS
- GTIN
- 04016032425960
