LevelOne IEC-4002 convertidor de medio 100 Mbit/s Multimodo Negro -

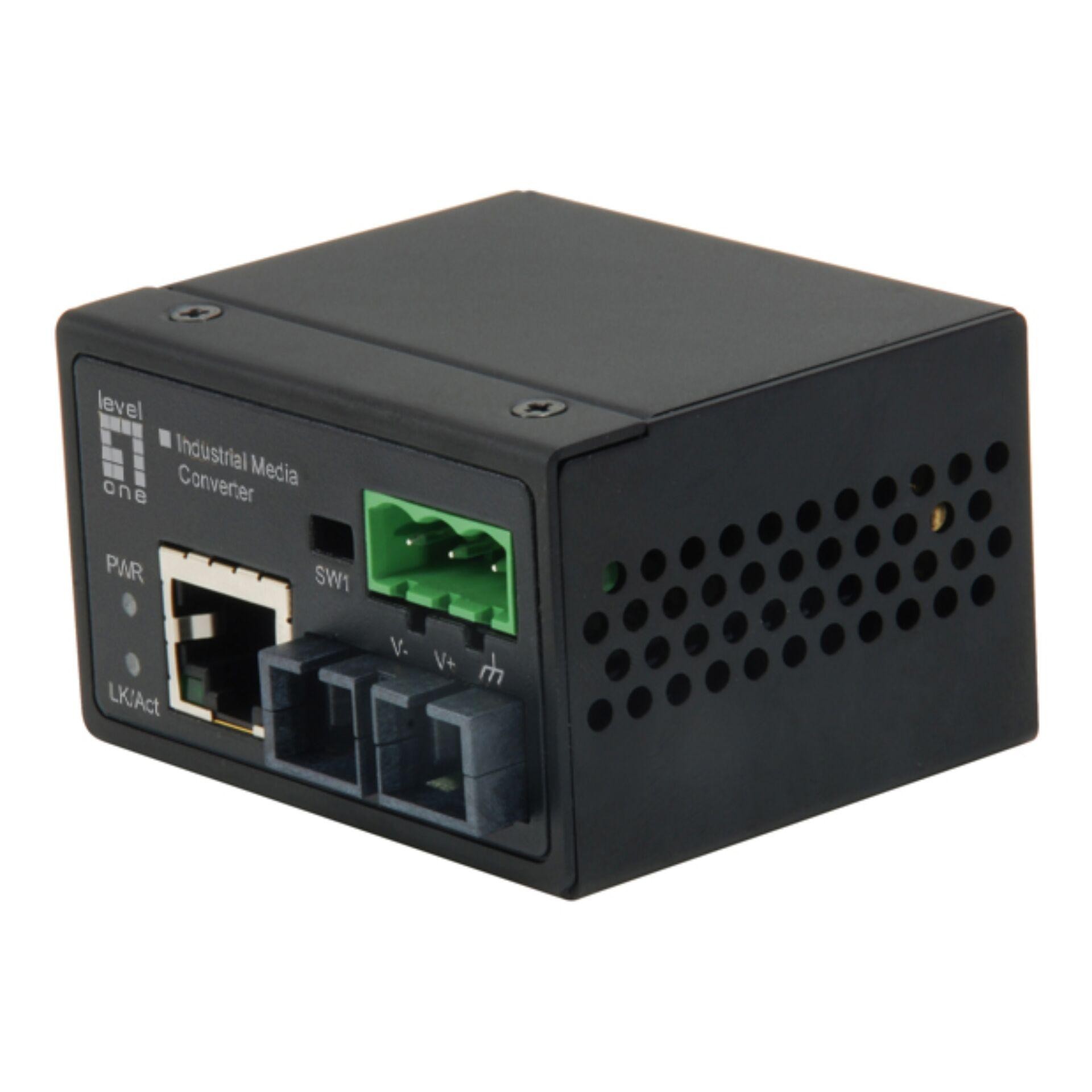

LevelOne IEC-4002 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes. - 10/100BaseT to 100Base-FX - Rugged aluminium case design in a mini size form factor - 18V-36VAC & 12V-60VDC with polarity protection - Link Fault Pass through (LFP) function - Supports switch and pure converter mode - Surge & ESD protection - Maximum noise & interference immunity - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail or panel mount installation Technical details Compliance certificates: RoHS Ports & interfaces Fiber optic connector: ST Connectivity technology: Wired Ethernet LAN (RJ-45) ports: 1 Fiber ports quantity: 1 Weight & dimensions Width: 59 mm Depth: 49 mm Height: 36 mm Weight: 90 g Power Input voltage: 12 - 60 V Power consumption (typical): 1.44 W Operational conditions Operating temperature (T-T): -40 - 75 °C Storage temperature (T-T): -40 - 75 °C Operating relative humidity (H-H): 5 - 95% Network Maximum data transfer rate: 100 Mbit/s Converter input interface: 10Base-T, 100Base-TX Converter output interface: 100Base-FX Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes Duplex system: Full, Half Packaging data Package width: 160 mm Package depth: 105 mm Package height: 65 mm Package weight: 260 g Package type: Box Packaging content Quick installation guide: Yes Design Internal: No LED indicators: Activity, Link, Power Product colour: Black Housing material: Aluminium Country of origin: Taiwan Certification: FCC Part 15 Subpart B Class A CE EN 55022 Class A FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 2 EN61000-4-4 (EFT) Level 2 EN61000-4-5 (Surge) Level 2 EN61000-4-6 (CS) Level 2 EN 61000-4-8 (PFMF) Level 1 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 Performance Maximum transfer distance: 2000 m Fiber mode structure: Multi-mode Logistics data Harmonized System (HS) code: 85176990Meer tonen
Aanbieding
Alle prijzen incl. btw; verzendkosten volgens de feed van de shop. De klik leidt direct naar de productpagina van de shop.
Productdetails
- Merken
- Level One
- GTIN
- 04015867188156
