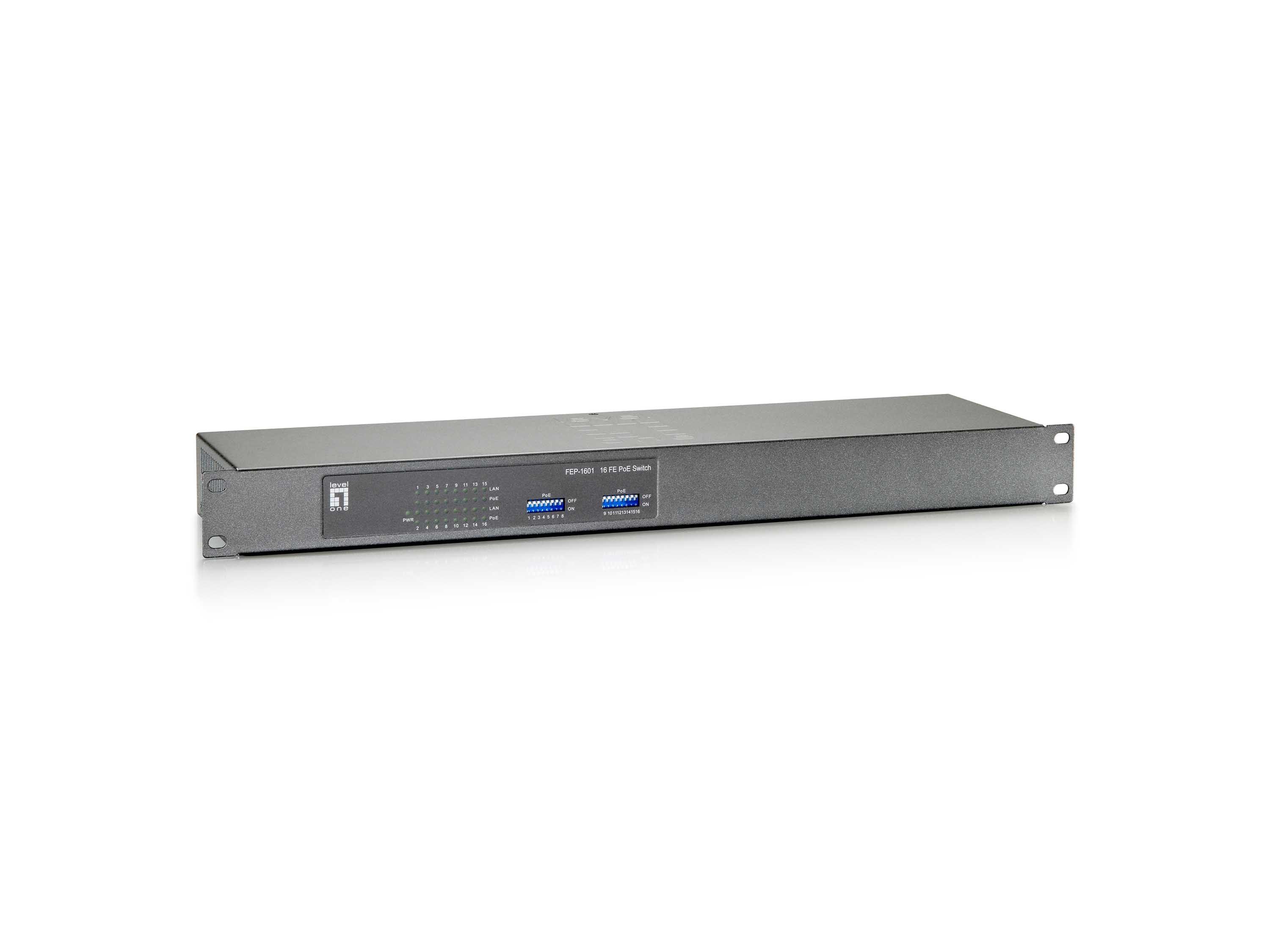

LevelOne PoE+Switch 16xFE PoE 250W 19" Metall
FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - PoE on/off control per port by dip switches - Total PoE power budget: 250W, up to 30W per port - 19-inch metal housing Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 16 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Power connector: DC-in jack Weight & dimensions Width: 480 mm Depth: 118 mm Height: 44 mm Weight: 2.2 kg Power AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 5 A Power protection features: Over current, Short circuit Operational conditions Operating temperature (T-T): 0 - 45 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 10 - 90% Network Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX Full duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes Data transmission MAC address table: 4096 entries Switching capacity: 3.2 Gbit/s Store-and-forward: Yes Packet forwarding rate (100 Mbps): 148000 pps Packet forwarding rate (10 Mbps): 14880 pps Packaging data Cables included: AC Manual: Yes Package width: 222 mm Package depth: 146 mm Package height: 78 mm Package weight: 2.6 kg Design Rack mounting: Yes Product colour: Grey, Metallic LED indicators: Activity, PoE, Power On/off switch: Yes Country of origin: Taiwan Certification: FCC, CE, RoHS Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) ports quantity: 16 Power over Ethernet (PoE) power per port: 30 W Total Power over Ethernet (PoE) budget: 240 W Performance Buffer size: 160 KB Logistics data Harmonized System (HS) code: 85176990Meer tonen
Aanbieding
Alle prijzen incl. btw; verzendkosten volgens de feed van de shop. De klik leidt direct naar de productpagina van de shop.
Productdetails
- Merken
- Level One
- GTIN
- 04015867188002
