TP-Link

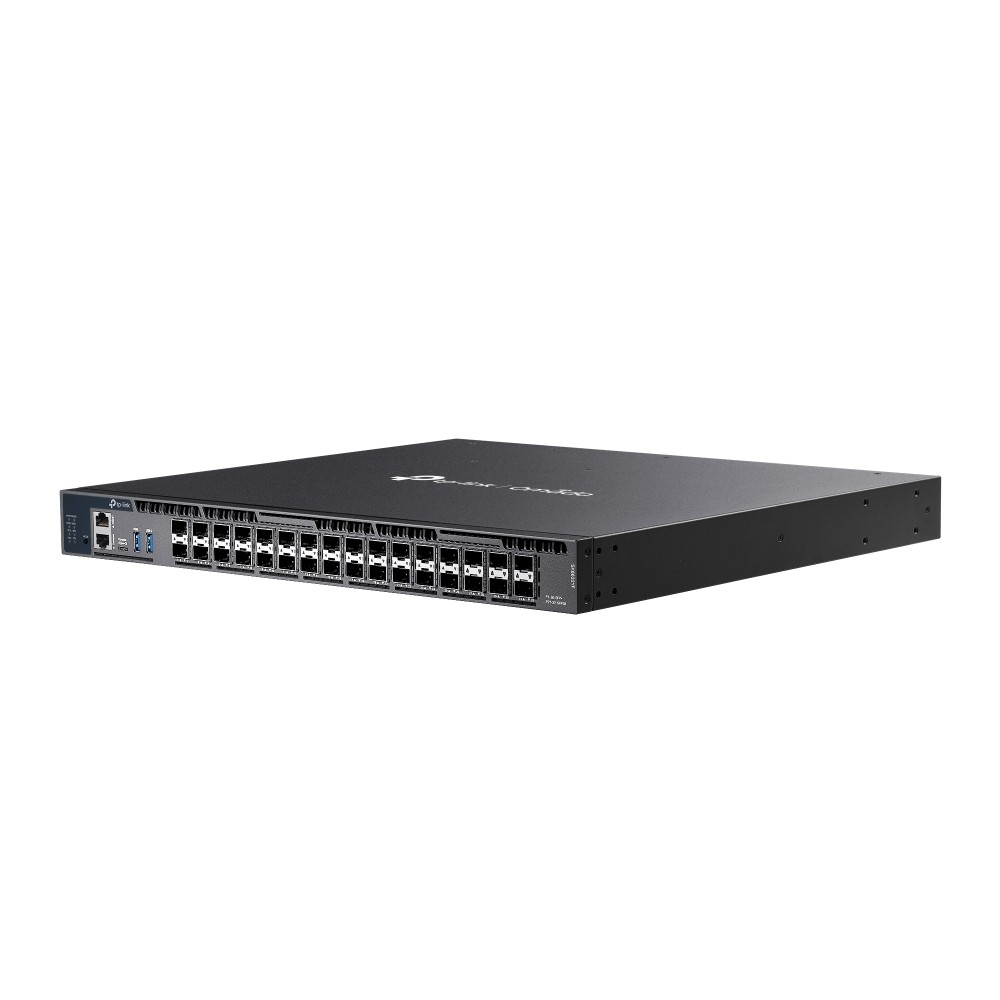

TP-Link Omada SX6632YF network switch Managed L2+/L3 Black - TP-Link
What This Product Does The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks. High-speed Connectivity and Powerful Stacking 6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance. Abundant Layer 3 Capabilities Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups. Highly Available Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology. Enhanced Security Functions Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell. Omada SDN Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud managementall controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. Ports & interfaces Basic switching RJ-45 Ethernet ports type: No SFP module slots quantity: 6 SFP+ module slots quantity: 26 USB Type-A ports quantity: 2 USB Type-C ports quantity: 1 Number of management ports: 1 pc(s) Console port: RJ-45 Weight & dimensions Width: 440 mm Depth: 380 mm Height: 44 mm Power Power source: AC Redundant power supply (RPS) support: Yes Number of power supply units: 2 AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Operational conditions Operating temperature (T-T): -5 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Protocols Management protocols: SNMPv1/v2c/v3 Network Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah 10G support: Yes Port mirroring: Yes IP routing: Yes VLAN support: Yes Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN Data transmission MAC address table: 128000 entries Switching capacity: 820 Gbit/s Forwarding rate: 610.1 Mpps Jumbo frames support: Yes Jumbo frames: 9000 Packet buffer memory: 8 MB Security DHCP features: DHCP Option 82 Access Control List (ACL): Yes IGMP snooping: Yes MAC address filtering: Yes Static port security: Yes SSH/SSL support: Yes Management features Switch type: Managed Switch layer: L2+/L3 Quality of Service (QoS) support: Yes Web-based management: Yes Cloud-managed: Yes ARP inspection: Yes Packaging content Cables included: Power Quick start guide: Yes Rack mount kit: Yes Design Rack mounting: Yes Stackable: Yes Product colour: Black Number of fans: 4 fan(s) Power over Ethernet (PoE) Power over Ethernet (PoE): No Performance Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. Multicast features MulticastMeer tonen
Aanbieding
Alle prijzen incl. btw; verzendkosten volgens de feed van de shop. De klik leidt direct naar de productpagina van de shop.
Productdetails
- Merken
- TP-Link
- GTIN
- 04895252501315
