DIGITUS
DIGITUS Switch Ind. 8-Port 10/100 PoE Unmanaged blau

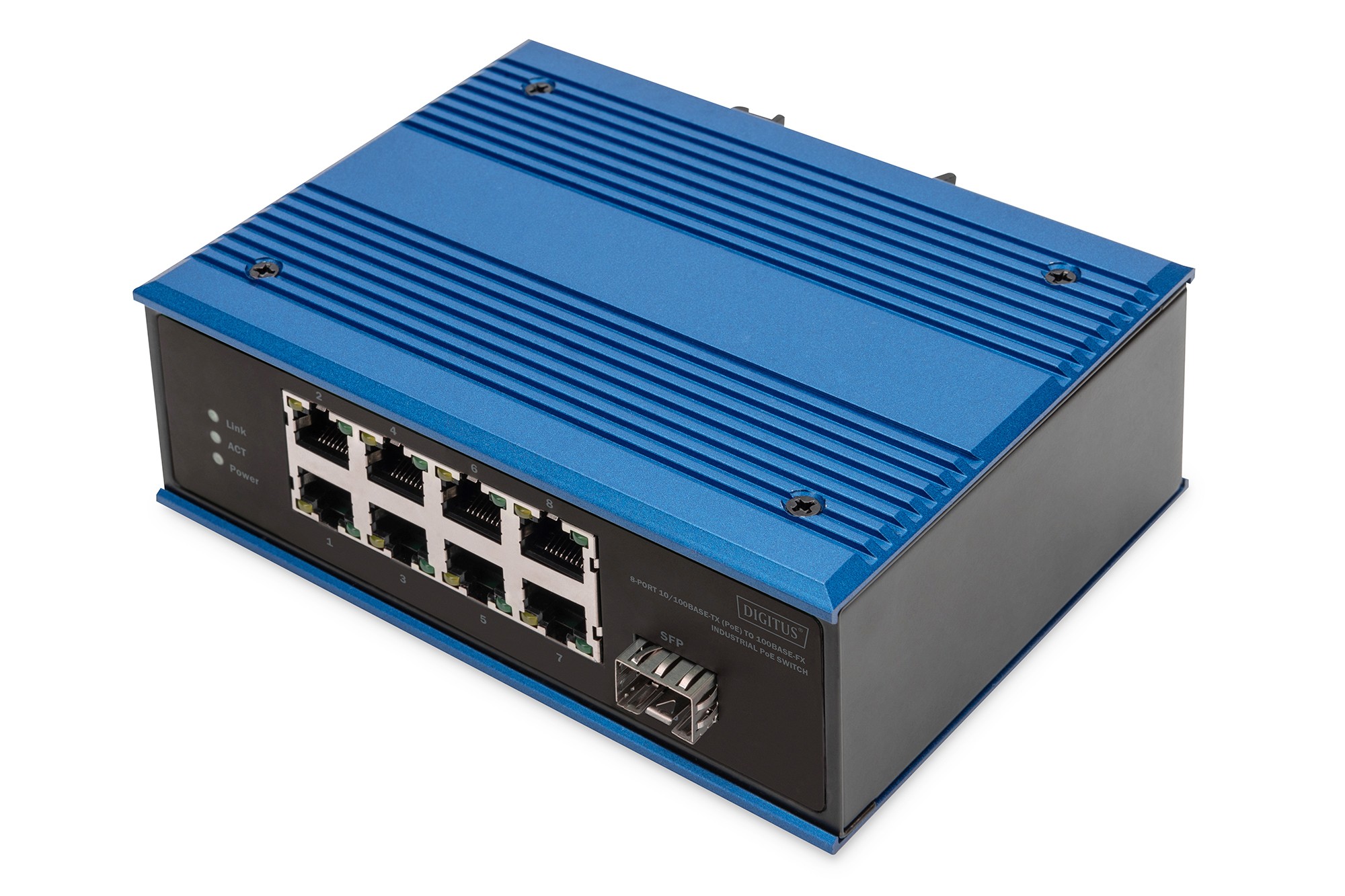

The DN-651133 is an 8+1 port PoE Ethernet switch (IEEE 802.3 af/at) suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments. - The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections. - Ensures reliable data transmission - Supports full-duplex or half-duplex mode, with automatic negotiation - Network connection supports automatic cross-identification - Uses "Store and Forward" technology The switch supports a variety of protocols - complies with industrial operating standards - Operating voltage: DC 48-57V - Lightning surge protection (power): 5000A(8/20s) DN-651133 is an industrial Fast Ethernet PoE switch with 8 port 10/100Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40 ~ 80, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651133 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices. Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Installed SFP+ modules quantity: 0 Fast Ethernet (copper) ports quantity: 8 SFP module slots quantity: 1 Uplink ports quantity: 1 Power connector: Terminal block (6-pin) Weight & dimensions Width: 143.7 mm Depth: 103 mm Height: 44.2 mm Weight: 560 g Power Power source: DC DC input voltage: 48 - 57 V Power consumption (typical): 3 W Operational conditions Operating temperature (T-T): -40 - 80 °C Storage temperature (T-T): -40 - 80 °C Operating relative humidity (H-H): 5 - 95% Storage relative humidity (H-H): 5 - 95% Network Networking standards: IEEE 802.3af 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX Full duplex: Yes Half duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Ethernet LAN data rates: 10,100 Mbit/s VLAN support: No Data transmission MAC address table: 4000 entries Switching capacity: 0.1 Gbit/s Forwarding rate: 1.4 Mpps Packet buffer memory: 1.25 MB Packaging data Package width: 158 mm Package depth: 66 mm Package height: 213 mm Package volume: 2221.16 cm³ Package weight: 917.857 g Management features Switch type: Unmanaged Packaging content Manual: Yes Other features Bandwidth: 1.8 Gbit/s Ethernet interface type: Fast Ethernet Design Rack mounting: No Stackable: No Product colour: Black, Blue Housing material: Aluminium LED indicators: Yes International Protection (IP) code: IP40 DIN rail mounting: Yes Vandal-proof: No Suitable for outdoor use: No Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Logistics data Country of origin: China UK Trade Tariff code: 85176200
Tilbud
Alle priser inkl. mva.; frakt i henhold til butikkens feed. Klikket fører direkte til produktsiden i butikken.
Prisutvikling (laveste pris)
2026-07-12 – 2026-07-15min 1 320,35 kr · max 1 321,65 kr
Produktdetaljer
- Merker
- DIGITUS
- GTIN
- 04016032485469
