HT Instruments

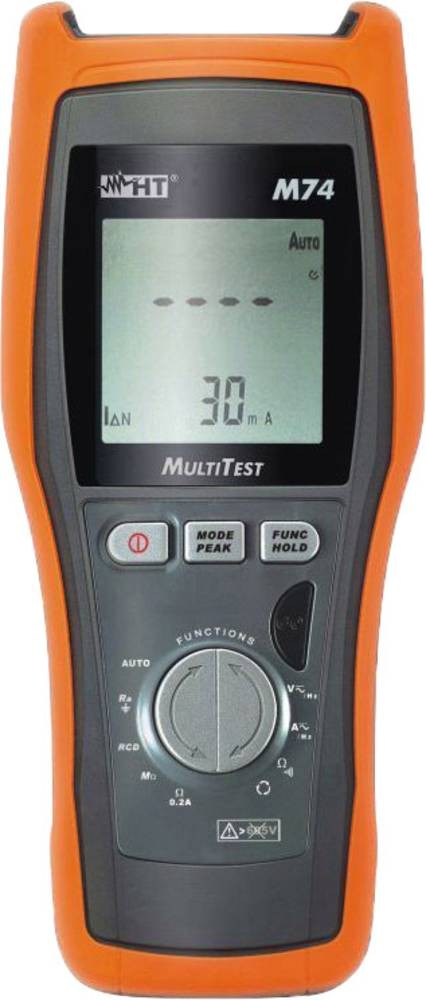

HT Instruments M74 Installationstester VDE-Norm 0100
The Multitest is an innovative instrument that combines the features of a multimeter and installation tester. The device M75 is also suitable for LAN network control. Technical Specifications: Low resistance measurement: 0.00 - 19.99 Ohms, 20.0 - 99.9 Ohms, Test current: > 200 mA DC Insulation resistance: 500V DC, 0.00 - 1999 MOhms, 20.0 - 199.9 MOhms RCD testing: 2 - 400ms Test current strengths: 30 mA, 30 mA x 5, 100 mA, 300 mA Loop resistance: 1 - 1999 Ohms, 0.1 - 199.9 Ohms Short-circuit current: 1 A - 2.3 kA Phase sequence and phase equality: 90 - 315 V Multimeter: Voltage: 1.0 mV...605.0 V AC Current: 1.0...999.9 mV AC (via optional current clamp) Frequency: 30.0...400 Hz Resistance: 0.00 Ohms...39.99 kOhms Scope of delivery: various cables, carrying case, calibration certificateVis mer
Tilbud
Alle priser inkl. mva.; frakt i henhold til butikkens feed. Klikket fører direkte til produktsiden i butikken.
Produktdetaljer
- Merker
- HT Instruments
- GTIN
- 08033100840766
