LevelOne Gigabit Ethernet over VDSL2 - LevelOne Gigabit Ethernet over

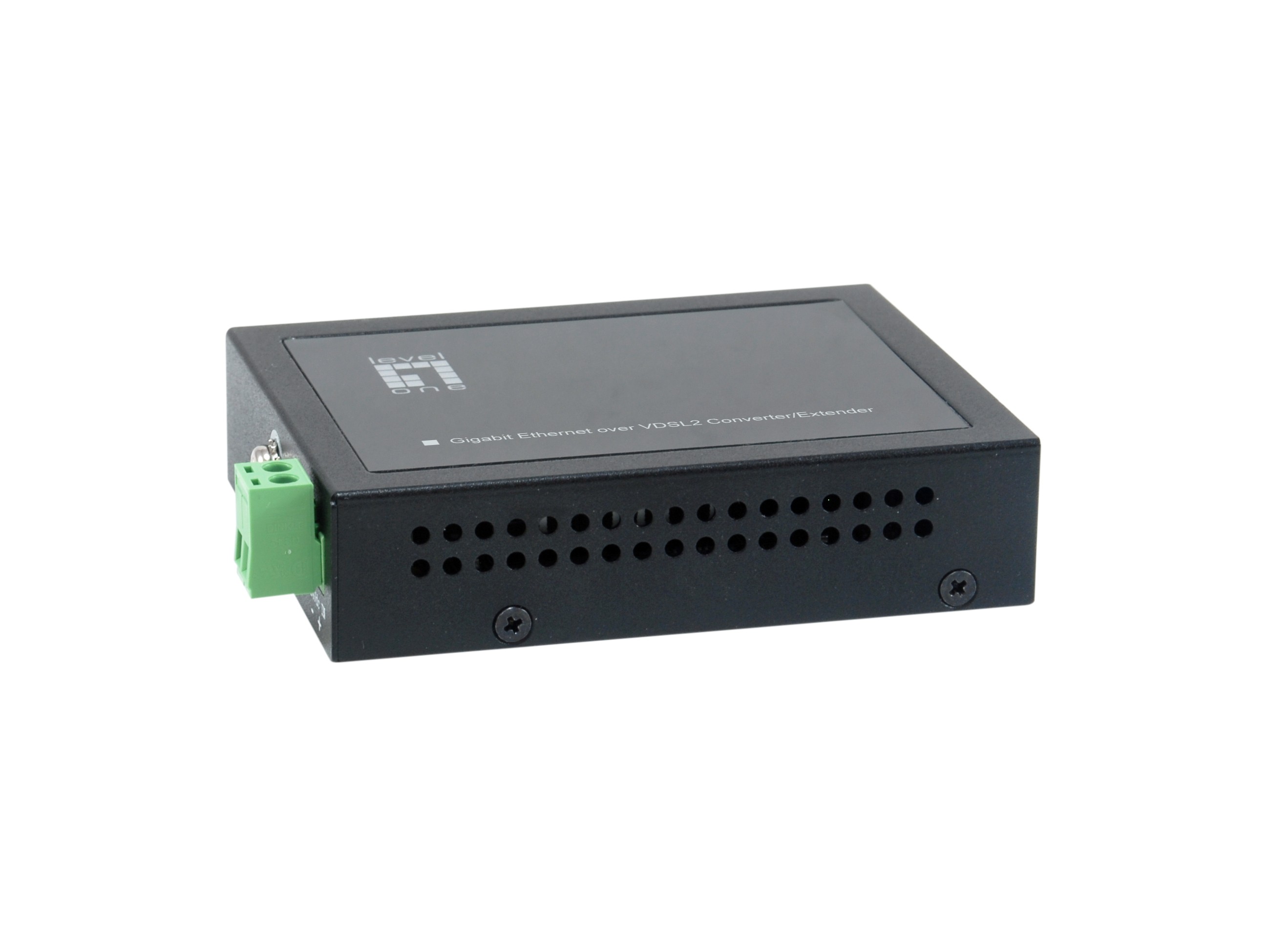

VDS-2201 is an Industrial Ultra-Speed VDSL2 Extender that supports VDSL2 profile 35b/30a/17a with a remarkable aggregated bandwidth of over 300Mbps. It delivers fiber optic-like speeds on existing copper infrastructure, enabling a good alternative in the place where fiber is not economical to deploy. VDS-2201 is equipped with a Gigabit Ethernet port (RJ45 connector) and one VDSL2 port (RJ45 connector) in the metal enclosure for easy installation in a hardened environment. The symmetric configuration can be applied as a long-reach Ethernet connection up to 3,000 meters, while an Asymmetric configuration can be used for other services like video streaming or IP surveillance services which require high traffic flow in a uni-direction configuration Ports & interfaces Connectivity technology: Wired Ethernet LAN (RJ-45) ports: 1 RJ-11 ports quantity: 1 Terminal block included: Yes Weight & dimensions Width: 94.5 mm Depth: 72.5 mm Height: 23 mm Weight: 220 g Power Output voltage: 12 - 24 V Power consumption (typical): 4.5 W Power over Ethernet (PoE): Yes Operational conditions Operating temperature (T-T): -20 - 65 °C Storage temperature (T-T): -40 - 75 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 0 - 95% Network Maximum data transfer rate: 1000 Mbit/s Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z Ethernet interface type: Fast Ethernet, Gigabit Ethernet Ethernet LAN data rates: 10,100,1000 Mbit/s Packaging data Package width: 143 mm Package depth: 132 mm Package height: 92 mm Package weight: 350 g Package type: Box Certificates Compliance certificates: CE, UKCA Performance Maximum transfer distance: 3000 m Features Internal: No Plug and Play: Yes LED indicators: Yes Product colour: Black Housing material: Metal Logistics data Country of origin: Taiwan Pallet gross length: 100 cm Pallet gross width: 120 cm Pallet gross height: 149 cm Customs product code (TARIC): 8517620000 Harmonized System (HS) code: 8517620000 Master (outer) case width: 434 mm Master (outer) case length: 307 mm Master (outer) case height: 482 mm Master (outer) case gross weight: 11.7 kg Products per master (outer) case: 30 pc(s)Vis mer
Tilbud
Alle priser inkl. mva.; frakt i henhold til butikkens feed. Klikket fører direkte til produktsiden i butikken.
Produktdetaljer
- Merker
- Level One
- GTIN
- 04015867238387
