Planet Technology Corp.

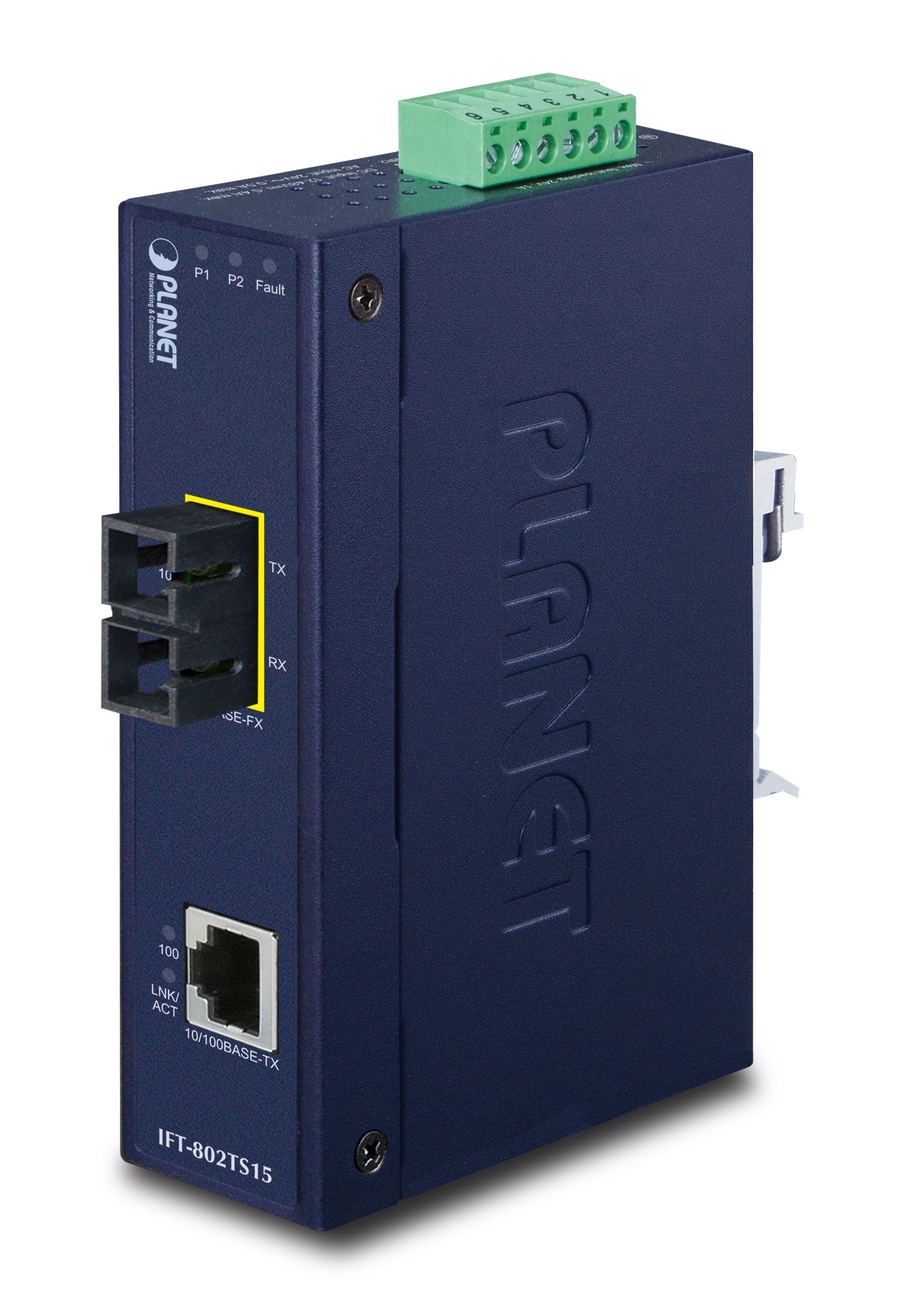

PLANET IFT-802TS15 convertitore multimediale di rete 100 Mbit/s 1310
Distance Extension with High Performance and Steady Network Communication PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment. Robust Media Converter Performance PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. Easy Installation and Wide Range of Power Usages The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. Ports & interfaces Fiber optic connector: SC Connectivity technology: Wired Ethernet LAN (RJ-45) ports: 1 Fiber ports quantity: 1 Weight & dimensions Width: 135 mm Depth: 85 mm Height: 32 mm Weight: 430 g Power Input voltage: 12 - 48 V Power consumption (typical): 3 W Operational conditions Operating temperature (T-T): -40 - 75 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 5 - 95% Storage relative humidity (H-H): 5 - 95% Network Maximum data transfer rate: 100 Mbit/s Converter input interface: 10Base-T, 100Base-TX Converter output interface: 100Base-FX Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Ethernet interface type: Fast Ethernet Ethernet LAN data rates: 10,100 Mbit/s Copper ethernet cabling technology: 10BASE-T, 100BASE-TX Fiber ethernet cabling technology: 100BASE-FX Data transfer rate: 100 Mbit/s Certificates Certification: FCC Class A, CE Class A Performance Maximum transfer distance: 15000 m Wavelength: 1310 nm Fiber mode structure: Single-mode Features Internal: No LED indicators: Yes Product colour: Blue Housing material: Metal International Protection (IP) code: IP30 DIN rail mounting: Yes Logistics data Harmonized System (HS) code: 85176990Vis mer
Tilbud
Alle priser inkl. mva.; frakt i henhold til butikkens feed. Klikket fører direkte til produktsiden i butikken.
Produktdetaljer
- Merker
- Planet Technology Corp.
- GTIN
- 04711213687563
