TDK-Lambda

TDK-Lambda Switching Power Supply, , 12V dc, 8.5A, 100W, 1 Output,

Name: TDK-Lambda Switching Power Supply, , 12V dc, 8.5A, 100W, 1 Output,
Brand: TDK-Lambda

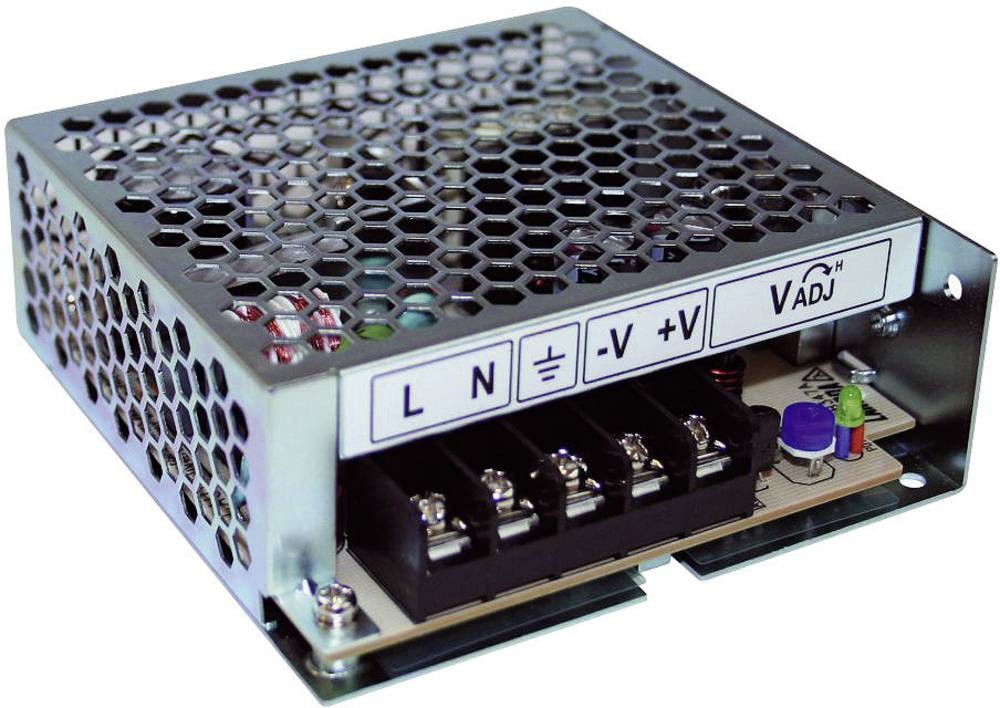

TDK-Lambda Switch Mode Power Supply The TDK-Lambda LS series 100W single output AC to DC embedded switch mode power supply has an output current rating of 8.5A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC. Note: Operating temperatures are with de-rating MTBF to MIL-HDBK-217F Features and Benefits Compact size High MTBF up to 900,000 hours Low cost Overcurrent protection Overvoltage protection Superior operating temperature performance up to 70°C Very high efficiency up to 87% Withstands 300VAC surges (minimum 5 seconds) Easier system cooling Applications Automated service Factory automation General purpose LED lighting and display Test and measurement Certifications EN 60950-1 EN 61000-3-2 (power factor correction) EN55011/EN55022-B FCC-B IEC 60950-1 UL 60950-1Vis mer

fra 477,88 kr

1 tilbud

Se tilbud
