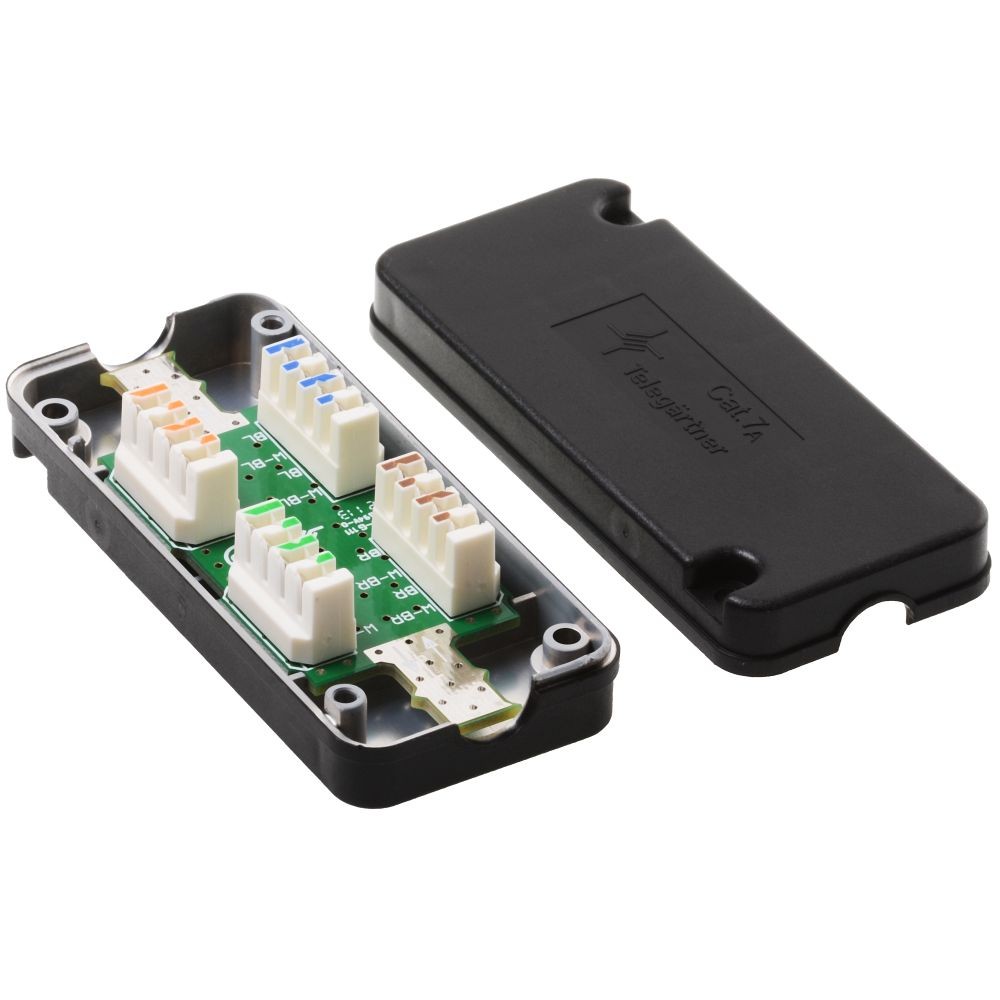

Telegärtner J00060A0069 network extender - Telegärtner J00060A0069
The VM 8-8 modules are employed as connections/extensions of commercially available, shielded/unshielded twisted-pair installation cables (Cat. 5e/Cat. 6/Cat. 7) in the following applications: damaged cables, cable extensions, cable rerouting. When VM 8-8 modules are used, the cable segments in a structured wiring system do not need to be laid out again. This reduces the expenses for alterations and the overall costs to a minimum. Depending on the connection module type, up to 12 incoming and 12 outgoing 8-wire cables can be permanently connected together without any significant reduction in the transmission characteristics or limitation of the maximum link lengths. Performance Characteristics - Connection via LSA Plus terminals on a common PCB. - Colour coding in acc. with EIA/TIA 568A and B. - Connection of 4-pair shielded/unshielded installation cables from AWG 24-22. - Pairs can be brought directly up to the terminal without untwisting the pairs. - Secure shielded contact using screw-on terminals directly on the PCB. - Variable cable feeds. - Separate cable strain relief using commercially available cable ties. - Tool-free installation of shielding cover made of stainless steel (19" and on-wall mounted version). - Surface mount (AP) type: incoming and outgoing cables in the same direction. - Surface mount, 19", and basic (for loose connection) version: incoming and outgoing cables offset by 180degrees. - Ground connection option directly on the PCB (M4 screw). - EMC compatible in accordance with EN 50081-2 and 50082-2.Vis mer
Tilbud
Alle priser inkl. mva.; frakt i henhold til butikkens feed. Klikket fører direkte til produktsiden i butikken.
Produktdetaljer
- Merker
- Telegärtner
- GTIN
- 04018359187682
