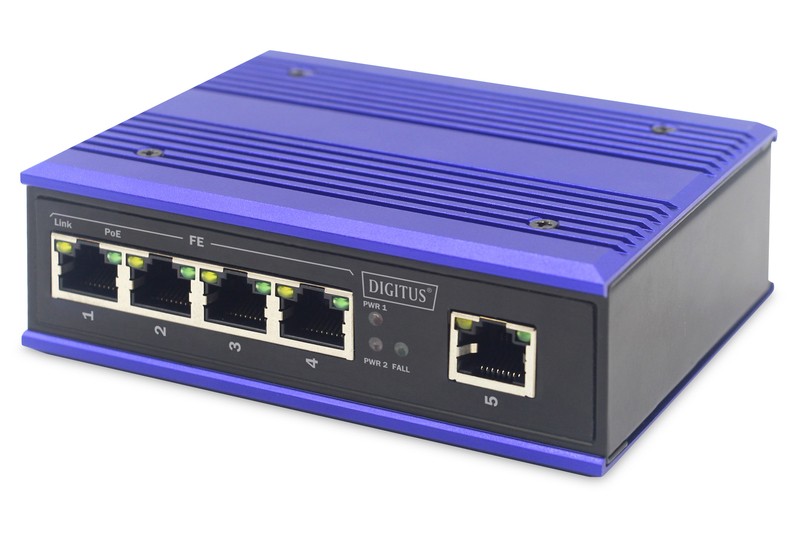

ASSMANN Electronic DN-650107 network switch Fast Ethernet (10/100)

Beschreibung

<p>ASSMANN Electronic DN-650107. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 5</li> <li>Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 86 mm</li> <li>Depth: 128 mm</li> <li>Height: 34 mm</li> </ul> <h3>Power</h3> <ul><li>Power supply included: No</li> <li>Redundant power supply (RPS) support: Yes</li> <li>DC input voltage: 48 - 57 V</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -40 - 85 °C</li> <li>Storage temperature (T-T): -40 - 85 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> <li>Storage relative humidity (H-H): 5 - 95%</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x</li> <li>10G support: No</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-TX</li> <li>Cable types supported: Cat3, Cat4, Cat5</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> <li>Auto MDI/MDI-X: Yes</li> <li>MAC address auto-learning supported: Yes</li> <li>MAC address auto-aging supported: Yes</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 2000 entries</li> <li>Switching capacity: 1 Gbit/s</li> <li>Store-and-forward: Yes</li> </ul> <h3>Packaging data</h3> <ul><li>User guide: Yes</li> </ul> <h3>Design</h3> <ul><li>Product colour: Black, Blue</li> <li>Housing material: Metal</li> <li>LED indicators: Yes</li> <li>Wall mountable: Yes</li> <li>DIN rail mounting: Yes</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet (PoE) ports quantity: 4</li> <li>Power over Ethernet (PoE) power per port: 30 W</li> </ul> <h3>Performance</h3> <ul><li>Mean time between failures (MTBF): 300000 h</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85176990</li> </ul>
