Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps - Axis

Beschreibung

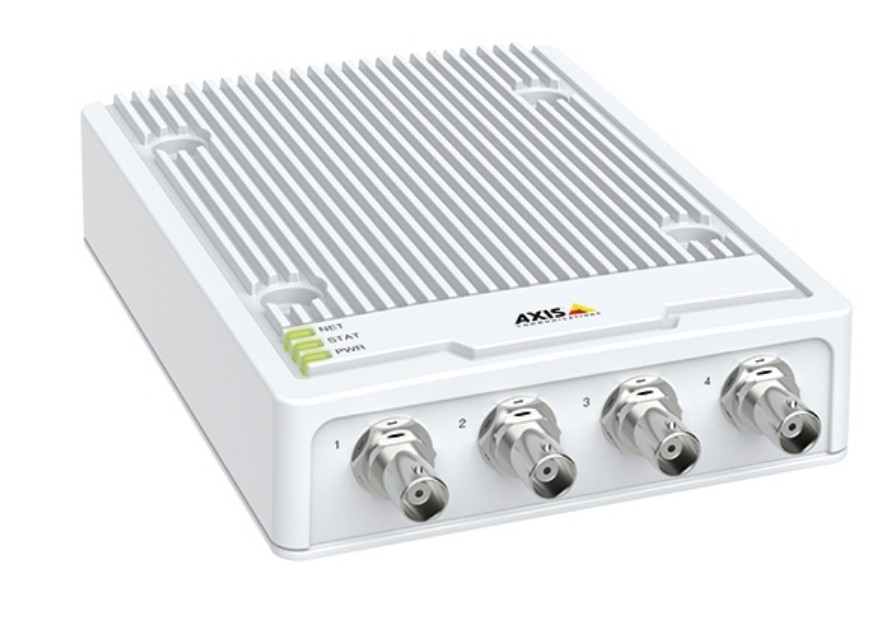

<p>AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoders firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.</p> <h3>Ports &amp; interfaces</h3> <ul><li>BNC input ports: 4</li> <li>Ethernet LAN (RJ-45) ports: 1</li> <li>RS-485 ports: 2</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 187 mm</li> <li>Height: 37 mm</li> <li>Weight: 650 g</li> </ul> <h3>Power</h3> <ul><li>Power consumption (typical): 4.7 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -40 - 65 °C</li> <li>Operating relative humidity (H-H): 10 - 85%</li> </ul> <h3>Network</h3> <ul><li>Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH</li> <li>Quality of Service (QoS) support: Yes</li> <li>Power over Ethernet (PoE): Yes</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T</li> <li>Networking standards: IEEE 802.3af, IEEE 802.3at</li> </ul> <h3>Video</h3> <ul><li>Maximum video resolution: 720 x 576 pixels</li> <li>Maximum frame rate: 30 fps</li> <li>Video compression formats: AVC, H.264, H.265, HEVC, MPEG4</li> <li>NTSC resolutions: 720x480 pixels</li> <li>PAL resolutions: 720x576 pixels</li> <li>Channels quantity: 4 channels</li> </ul> <h3>Security</h3> <ul><li>Security algorithms: HTTPS</li> <li>Video motion detection: Yes</li> <li>IP address filtering: Yes</li> <li>Active tampering alarm: Yes</li> </ul> <h3>Packaging content</h3> <ul><li>Manual: Yes</li> </ul> <h3>Design</h3> <ul><li>Product colour: White</li> <li>LED indicators: Status</li> <li>Wall mountable: Yes</li> <li>Certification: 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267</li> </ul> <h3>Performance</h3> <ul><li>Internal memory: 1024 MB</li> <li>Flash memory: 512 MB</li> <li>Card reader integrated: Yes</li> <li>Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC</li> <li>PTZ control: Yes</li> <li>Image settings: Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness</li> </ul>
