Bulgin Circular Connector, 2 Contacts, Cable Mount, Socket, Female,

Beschreibung

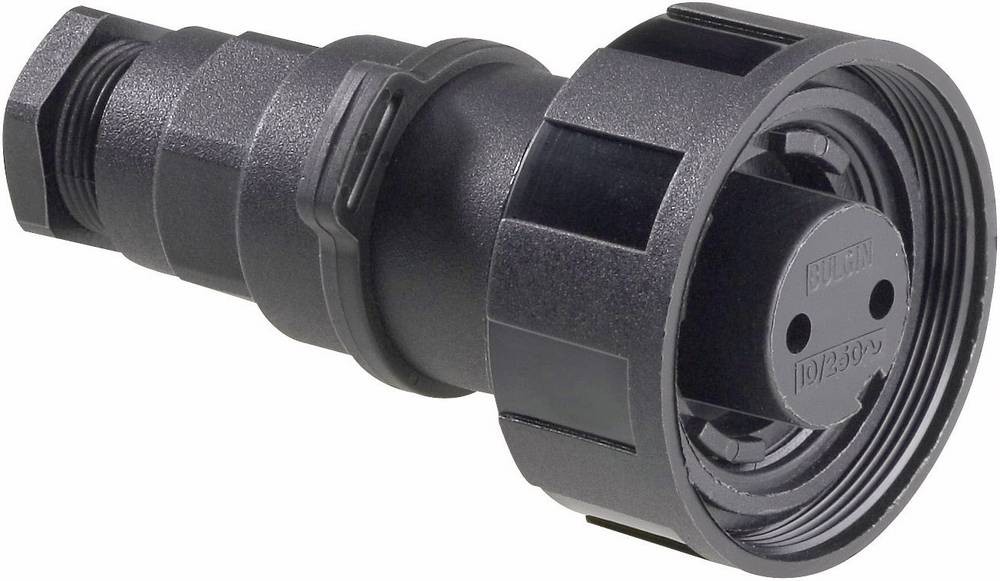

<p>Bulgin Circular Connector<br>The Bulgin Buccaneer series 2-poles female circular flex cable connector has a socket type connection. This connector has a voltage rating of 250VAC/DC and current rating is up to 12A per contact. This cable mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.<br>Environment<br>The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.<br>Frequently asked questions (FAQs)Q: Are there accessories available for this connector?<br>A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.<br>Q: How durable is the connector?<br>A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater.<br>Q: What are the mating requirements of this connector?<br>A: the buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable-to-cable connection, or with a panel, chassis and PCB connectors.<br>Q: Are contacts supplied with this connector?<br>A: Flange connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.<br>Features and Benefits<br>Screw termination<br>Straight body orientation<br>Easy assembly, no special tools required<br>Insulation resistance is greater than 104Mohm<br>Operation temperature ranges between -20°C and 70°C<br>Positive locking keyways<br>Shell size is 38mm<br>Unshielded<br>Water and dustproof<br>Applications<br>Electrical equipment<br>Industrial automation<br>Certifications<br>CSA certified<br>IP68 rated<br>UL approved<br>VDE approved<br>Approvals<br>CSA; UL; VDE</p>
