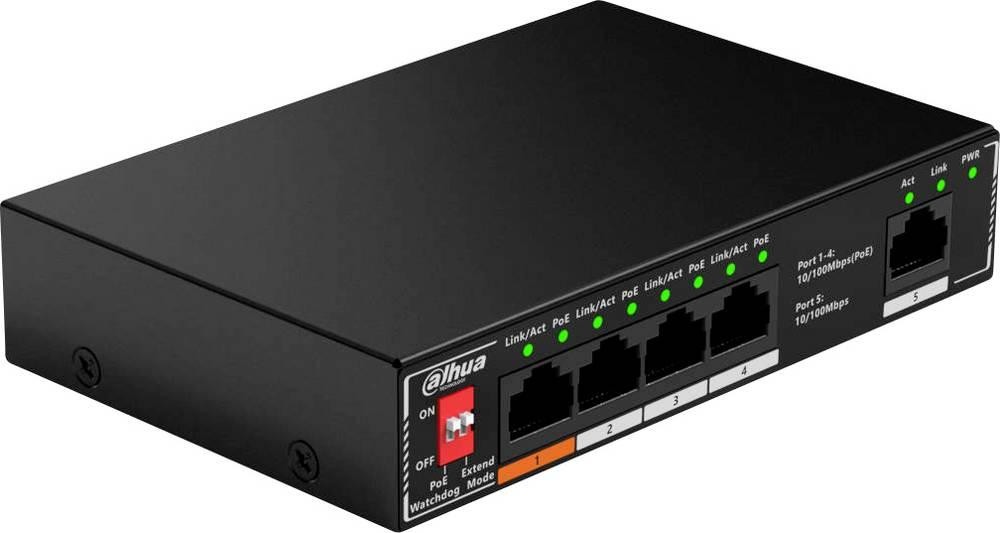

Dahua Technology PoE SF1005P Unmanaged L2 Fast Ethernet (10/100)

Beschreibung

<p>DH-SF1005P is an unmanaged desktop switch with 4 × 10/100 Mbps PoE Ports. It provides 4 × 10/100 Mbps Ethernet ports and 1 × 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On and Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.<br><br><b>Intelligent PoE</b><br>Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.<br><br><b>Hi-PoE 60W (Orange Port)</b><br>In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.<br><br><b>PoE Watchdog</b><br>Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.<br><br><b>Long Distance PoE</b><br>Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.<br><br><b>8-pin Assignment PoE Power Supply</b><br>The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility.<br>Reduce cable loss and promote loading capacity.</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 5</li> <li>Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)</li> <li>Fast Ethernet (copper) ports quantity: 5</li> <li>Uplink ports quantity: 1</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 130 mm</li> <li>Depth: 85 mm</li> <li>Height: 26 mm</li> <li>Weight: 300 g</li> </ul> <h3>Power</h3> <ul><li>Power source: DC/PoE</li> <li>DC input voltage: 48 - 57 V</li> <li>Power consumption (max): 60 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -10 - 55 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x</li> <li>10G support: No</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-TX</li> <li>Cable types supported: Cat5e, Cat6</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> <li>Ethernet LAN data rates: 10,100 Mbit/s</li> </ul> <h3>Data transmission</h3> <ul><li>Switching capacity: 1.8 Gbit/s</li> <li>Forwarding rate: 0.744 Mpps</li> <li>Packet buffer memory: 0.125 MB</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Unmanaged</li> <li>Switch layer: L2</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: No</li> <li>Product colour: Black</li> <li>LED indicators: Yes</li> <li>Wall mountable: Yes</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet (PoE) ports quantity: 4</li> <li>Total Power over Ethernet (PoE) budget: 60 W</li> </ul>
