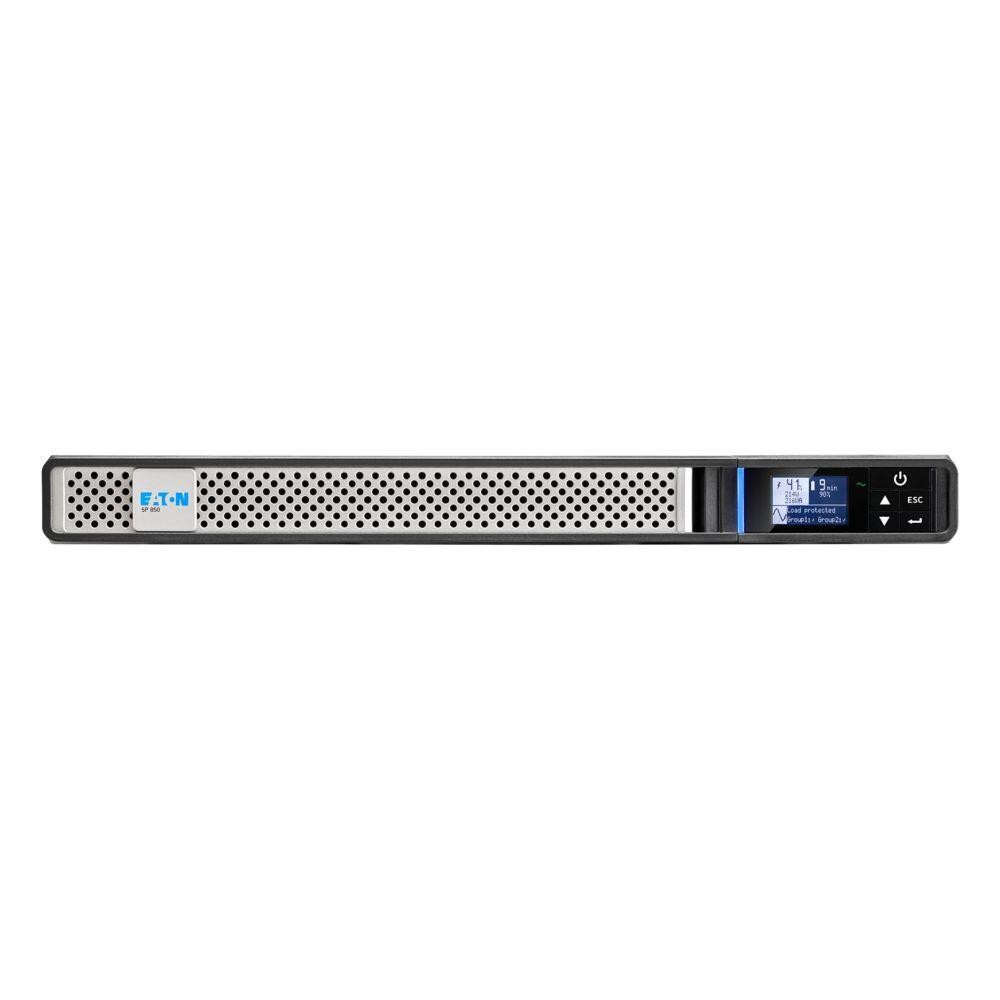

Eaton 5P850IRNG2 uninterruptible power supply (UPS) Line-Interactive

Beschreibung

<p>Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS</p> <h3>Ports &amp; interfaces</h3> <ul><li>AC outlet types: C13 coupler</li> <li>Power plug: C14 coupler</li> <li>AC outlets quantity: 4 AC outlet(s)</li> <li>USB port: Yes</li> <li>USB port type: USB Type-B</li> <li>Serial interface: Yes</li> <li>Serial interface type: RS-232</li> <li>Serial ports quantity: 1</li> <li>RS-232 ports: 1</li> <li>Network card slot: Yes</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 438 mm</li> <li>Depth: 509 mm</li> <li>Height: 43.2 mm</li> <li>Weight: 13.8 kg</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 40 °C</li> <li>Operating relative humidity (H-H): 0 - 90%</li> <li>Operating altitude: 0 - 3000 m</li> </ul> <h3>Certificates</h3> <ul><li>Waste Electrical and Electronic Equipment (WEEE) compliance: Yes</li> <li>Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS</li> <li>Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS</li> </ul> <h3>Packaging content</h3> <ul><li>Rack mount kit: Yes</li> <li>Cables included: USB cable</li> <li>Quick installation guide: Yes</li> </ul> <h3>Battery</h3> <ul><li>Battery technology: Sealed Lead Acid (VRLA)</li> <li>Battery capacity: 7 Ah</li> <li>Battery voltage: 6 V</li> <li>Number of battery cells: 4</li> <li>Typical backup time at half load: 13 min</li> <li>Hot-swap battery: Yes</li> </ul> <h3>Design</h3> <ul><li>Form factor: Rackmount</li> <li>Product colour: Black, Silver</li> <li>Display type: LCD</li> </ul> <h3>Features</h3> <ul><li>UPS topology: Line-Interactive</li> <li>Output power capacity: 0.85 kVA</li> <li>Output power: 680 W</li> <li>Waveform: Sine</li> <li>Input operation voltage (min): 150 V</li> <li>Input operation voltage (max): 294 V</li> <li>Input frequency: 47/70 Hz</li> <li>Output operation voltage (min): 200 V</li> <li>Output operation voltage (max): 240 V</li> <li>Output frequency: 50/60 Hz</li> <li>Automatic Voltage Regulation (AVR): Yes</li> <li>Heat dissipation: 307 BTU/h</li> <li>Number of input phases: 1</li> <li>Number of output phases: 1</li> <li>Efficiency: 98%</li> <li>Power factor: 0.8</li> <li>Noise level: 35 dB</li> </ul>
