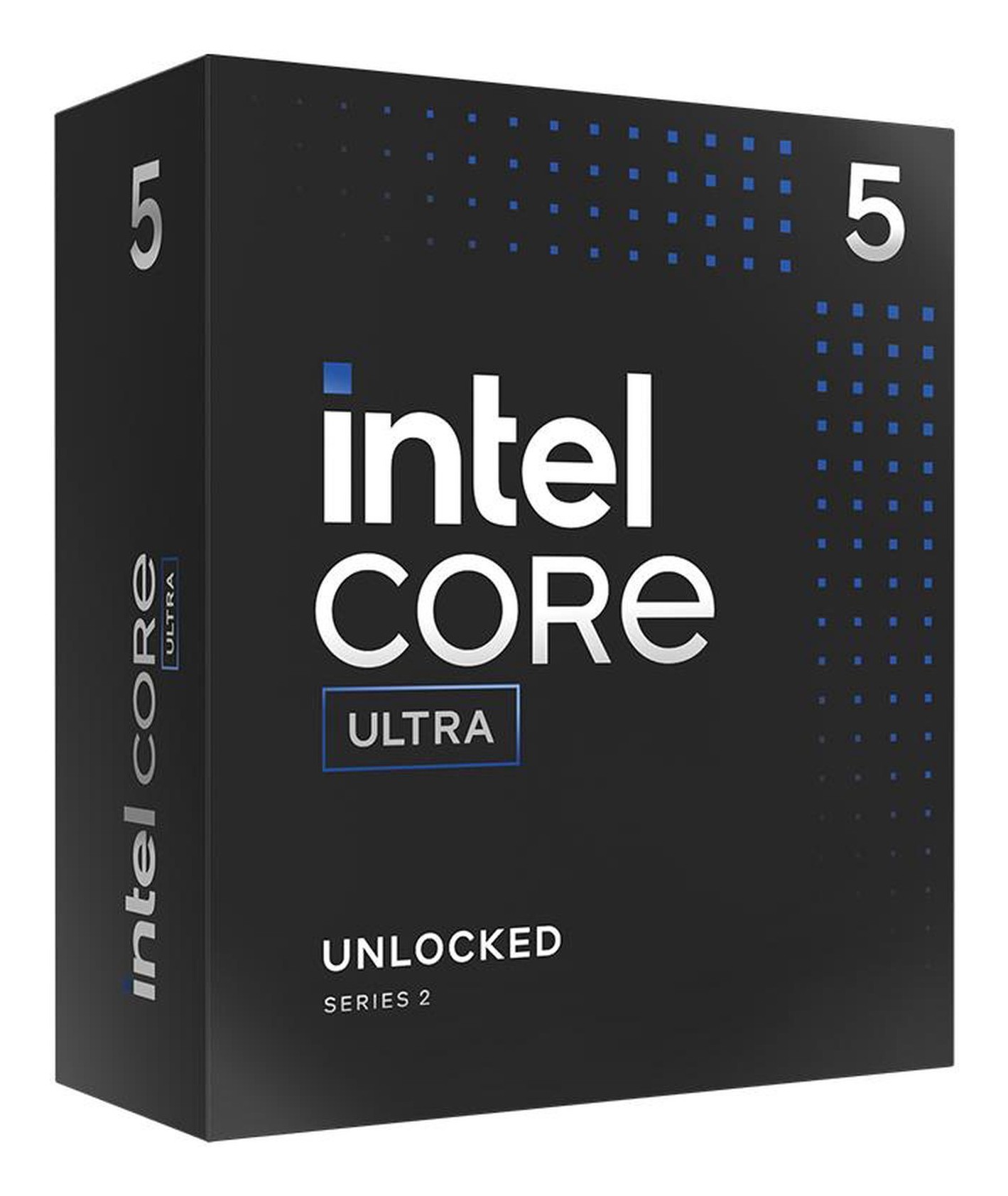

Intel Core Ultra 5 245K processor 24 MB Smart Cache Box - Intel Core

Beschreibung

<p>Intel Core Ultra 5 245K. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 30 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0</p> <h3>Technical details</h3> <ul><li>OpenCL version: 3.0</li> <li>Launch date: Q4&#039;24</li> <li>Status: Launched</li> <li>Memory speed (max): 6400 MHz</li> </ul> <h3>Processor</h3> <ul><li>Processor family: Intel Core Ultra 5</li> <li>Processor cores: 14</li> <li>Processor socket: LGA 1851 (Socket V1)</li> <li>Package type: Box</li> <li>Cooler included: No</li> <li>Processor manufacturer: Intel</li> <li>Processor model: 245K</li> <li>Processor operating modes: 64-bit</li> <li>Processor generation: Intel Core Ultra (Series 2)</li> <li>Performance cores: 6</li> <li>Efficient cores: 8</li> <li>Processor boost frequency: 5.2 GHz</li> <li>Performance-core boost frequency: 5.2 GHz</li> <li>Performance-core base frequency: 4.2 GHz</li> <li>Efficient-core boost frequency: 4.6 GHz</li> <li>Efficient-core base frequency: 3.6 GHz</li> <li>Processor cache: 24 MB</li> <li>Processor cache type: Smart Cache</li> <li>Processor base power: 125 W</li> <li>Maximum turbo power: 159 W</li> <li>AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN</li> <li>Stepping: B0</li> <li>Maximum number of DMI lanes: 8</li> <li>Processor codename: Arrow Lake</li> <li>Processor ARK ID: 241067</li> </ul> <h3>Memory</h3> <ul><li>Memory channels: Dual-channel</li> <li>Maximum internal memory supported by processor: 192 GB</li> <li>Memory types supported by processor: DDR5-SDRAM</li> <li>Memory clock speeds supported by processor: 6400 MHz</li> <li>ECC: Yes</li> </ul> <h3>Operational conditions</h3> <ul><li>Maximum operating temperature: 105 °C</li> </ul> <h3>Other features</h3> <ul><li>L2 cache: 26624 KB</li> <li>Maximum internal memory: 192 GB</li> <li>Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b</li> </ul> <h3>Graphics</h3> <ul><li>On-board graphics card: Yes</li> <li>Discrete graphics card: No</li> <li>On-board graphics card model: Intel Graphics</li> <li>Discrete graphics card model: Not available</li> <li>On-board graphics card outputs supported: DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1</li> <li>On-board graphics card base frequency: 300 MHz</li> <li>On-board graphics card dynamic frequency (max): 1900 MHz</li> <li>Number of displays supported (on-board graphics): 4</li> <li>On-board graphics card DirectX version: 12.0</li> <li>On-board graphics card OpenGL version: 4.5</li> <li>On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz</li> <li>On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz</li> <li>On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz</li> <li>On-board graphics card ID: 0x7D67</li> <li>Xe-cores: 4</li> </ul> <h3>Processor special features</h3> <ul><li>Intel® Turbo Boost Technology: 2.0</li> <li>Intel® Quick Sync Video Technology: Yes</li> <li>Intel® AES New Instructions (Intel® AES-NI): Yes</li> <li>Enhanced Intel SpeedStep Technology: Yes</li> <li>Intel Trusted Execution Technology: Yes</li> <li>Intel® Speed Shift Technology: Yes</li> <li>Intel® Thunderbolt 4: Yes</li> <li>Intel® Control-flow Enforcement Technology (CET): Yes</li> <li>Intel® Thread Director: Yes</li> <li>Intel VT-x with Extended Page Tables (EPT): Yes</li> <li>Intel® Secure Key: Yes</li> <li>Intel® Active Management Technology (Intel® AMT): Yes</li> <li>Intel® OS Guard: Yes</li> <li>Intel 64: Yes</li> <li>Intel Virtualization Technology (VT-x): Yes</li> <li>Intel Virtualization Technology for Directed I/O (VT-d): Yes</li> <li>Intel® Boot Guard: Yes</li> <li>Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes</li> <li>Intel® Volume Management Device (VMD): Yes</li> <li>Mode-based Execute Control (MBE): Yes</li> <li>Intel® Standard Manageability (ISM): Yes</li> <li>Intel® One-Click Recovery: Yes</li> <li>Intel® Stable IT Platform Program (SIPP): Yes</li> <li>Intel® Remote Platform Erase (RPE): Yes</li> <li>Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes</li> <li>Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes</li> <li>Intel vPro® Enterprise Platform Eligibility: Yes</li> <li>Intel® Threat Detection Technology (TDT): Yes</li> <li>Intel® Hardware Shield Eligibility: Yes</li> <li>Intel® Total Memory
