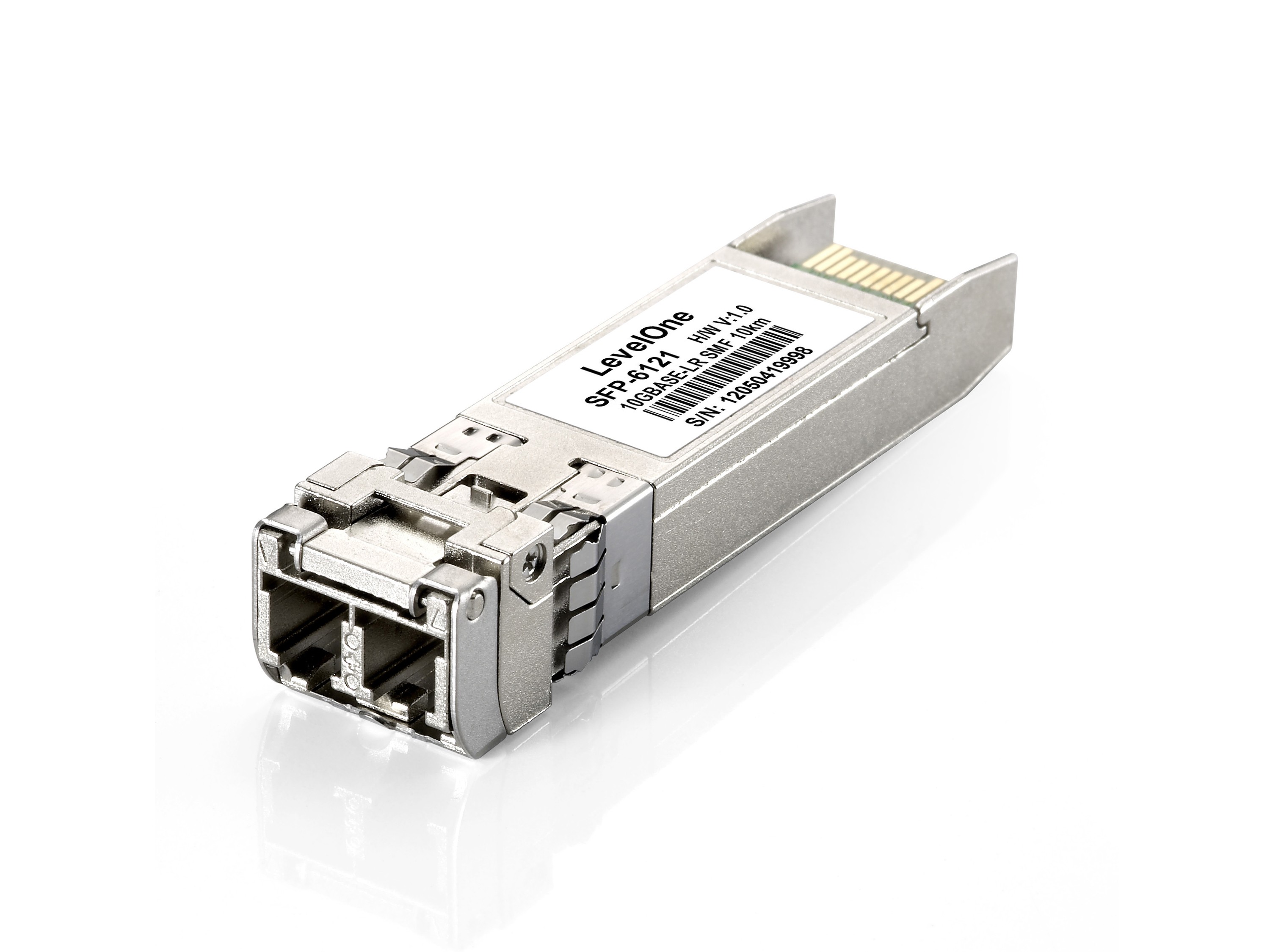

LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm - LevelOne

Beschreibung

<p>LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.<br><br>- High-quality 10Gbase short range SFP-Plus transceiver<br>- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices<br>- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring<br>- Hot-swappable providing non-stop service<br>- Provides duplex LC connector<br>- Operating temperature: 0°C ~ 70°C</p> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 57 mm</li> <li>Depth: 12 mm</li> <li>Height: 13.7 mm</li> <li>Weight: 20 g</li> </ul> <h3>Power</h3> <ul><li>Input voltage: 3.3 V</li> <li>Maximum voltage: 3.6 V</li> <li>Maximum current: 0.33 A</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 70 °C</li> <li>Storage temperature (T-T): -40 - 85 °C</li> </ul> <h3>Packaging data</h3> <ul><li>Package width: 106 mm</li> <li>Package depth: 20 mm</li> <li>Package height: 65 mm</li> <li>Package weight: 35 g</li> </ul> <h3>Certificates</h3> <ul><li>Compliance certificates: RoHS</li> <li>Safety: EN 60825-1</li> <li>Certification: CE, FCC</li> </ul> <h3>Packaging content</h3> <ul><li>Quantity per pack: 1 pc(s)</li> </ul> <h3>Performance</h3> <ul><li>SFP transceiver type: Fiber optic</li> <li>Maximum data transfer rate: 10000 Mbit/s</li> <li>Interface type: SFP+</li> <li>Single-mode fiber (SMF) supported: Yes</li> <li>Fiber optic connector: LC</li> <li>Fiber cable diameters supported (core/cladding): 9/125 µm</li> <li>Maximum transfer distance: 10000 m</li> <li>Wavelength: 1310 nm</li> <li>Tx power (min): -8.2 dBmW</li> <li>Tx power (max): 0.5 dBmW</li> <li>Networking standards: IEEE 802.3ae</li> <li>Duplex system: Full</li> <li>Fiber ports quantity: 1</li> </ul> <h3>Features</h3> <ul><li>Hot-swap: Yes</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85369010</li> </ul>
