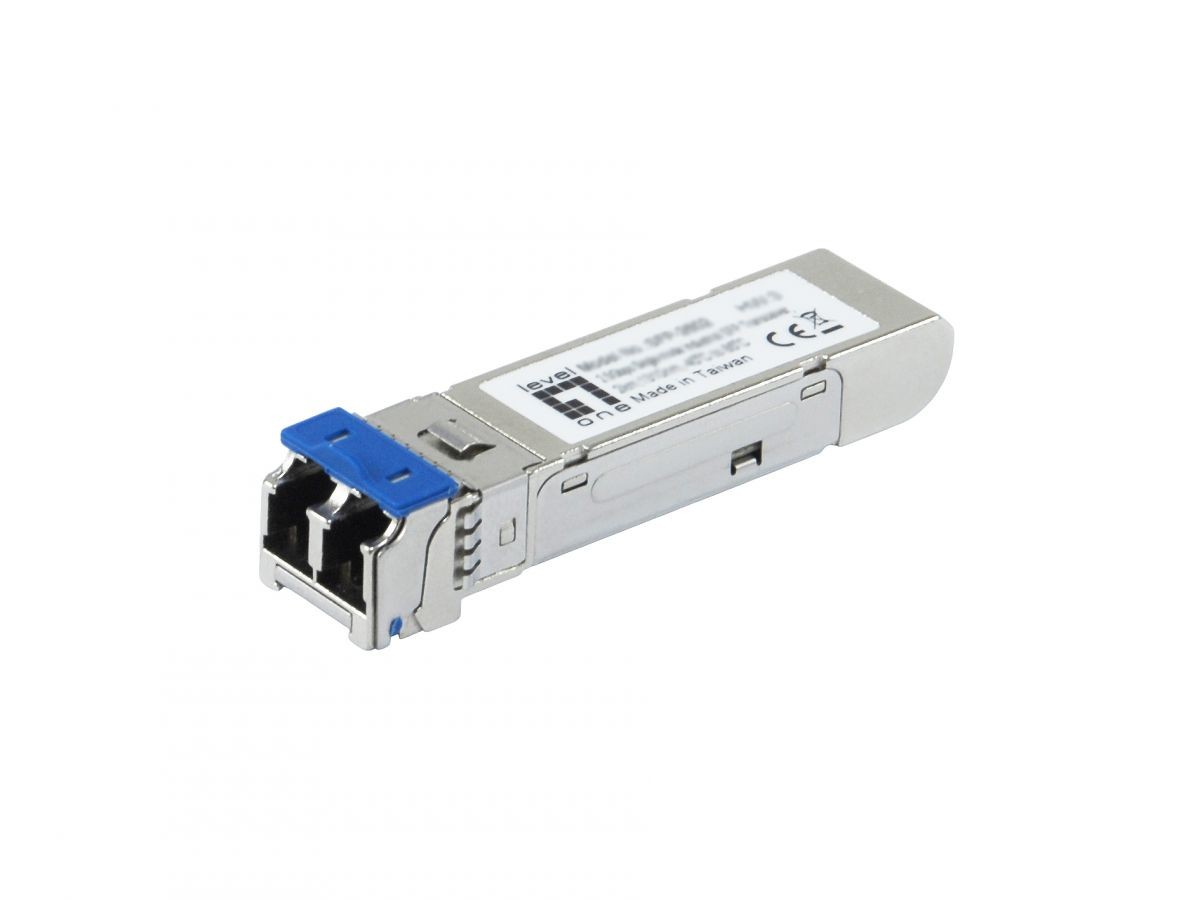

LevelOne 2.5Gbps Single-mode Industrial SFP Transceiver, 20km, 1310nm,

Beschreibung

<p> The levelOne SFP-2603 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 2.5 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 20km. The SFP-2603 transceiver operates using a wavelength of 1310nm with a DFB Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation. </p> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 55.9 mm</li> <li>Depth: 13.4 mm</li> <li>Height: 13 mm</li> <li>Weight: 15.5 g</li> </ul> <h3>Power</h3> <ul><li>Power consumption (typical): 1 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -40 - 85 °C</li> <li>Storage temperature (T-T): -40 - 85 °C</li> <li>Operating relative humidity (H-H): 5 - 85%</li> <li>Storage relative humidity (H-H): 5 - 85%</li> </ul> <h3>Packaging data</h3> <ul><li>Package width: 110 mm</li> <li>Package depth: 67 mm</li> <li>Package height: 25 mm</li> <li>Package weight: 41.66 g</li> </ul> <h3>Certificates</h3> <ul><li>Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL</li> </ul> <h3>Packaging content</h3> <ul><li>Quantity per pack: 1 pc(s)</li> </ul> <h3>Performance</h3> <ul><li>SFP transceiver type: Fiber optic</li> <li>Maximum data transfer rate: 2500 Mbit/s</li> <li>Interface type: SFP</li> <li>Single-mode fiber (SMF) supported: Yes</li> <li>Fiber optic connector: LC</li> <li>Fiber cable diameters supported (core/cladding): 9/125 µm</li> <li>Maximum transfer distance: 20000 m</li> <li>Wavelength: 1310 nm</li> <li>Tx power (min): -5 dBmW</li> <li>Tx power (max): 0 dBmW</li> <li>Copper ethernet cabling technology: 2.5GBASE</li> <li>Digital Diagnostics Monitoring (DDM): Yes</li> </ul> <h3>Features</h3> <ul><li>Product colour: Silver</li> <li>Form factor: SFP</li> <li>Plug and Play: Yes</li> <li>Hot-swap: Yes</li> </ul> <h3>Logistics data</h3> <ul><li>Pallet gross length: 80 cm</li> <li>Pallet gross width: 120 cm</li> <li>Pallet gross height: 164.4 cm</li> <li>Customs product code (TARIC): 8517620000</li> <li>Master (outer) cases per pallet: 34 pc(s)</li> <li>Master (outer) case width: 365 mm</li> <li>Master (outer) case length: 343 mm</li> <li>Master (outer) case height: 250 mm</li> <li>Master (outer) case gross weight: 5.5 kg</li> <li>Products per master (outer) case: 100 pc(s)</li> <li>Country of origin: Taiwan</li> </ul>
