LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x

Beschreibung

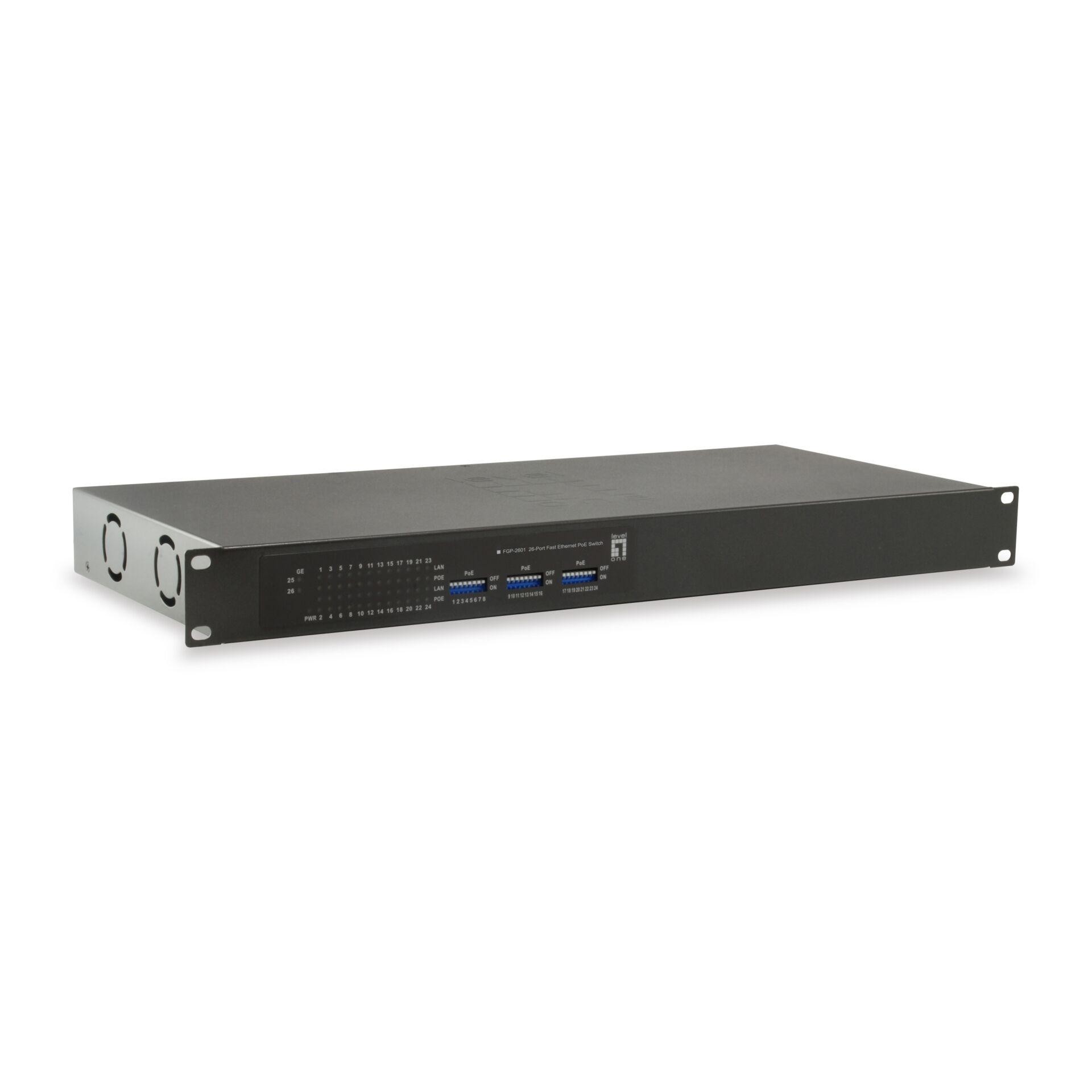

<p>The LevelOne FGP-2601 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2601 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 26</li> <li>Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)</li> <li>Fast Ethernet (copper) ports quantity: 24</li> <li>Gigabit Ethernet (copper) ports quantity: 2</li> <li>Power connector: AC-in jack</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 200 mm</li> <li>Depth: 44 mm</li> <li>Height: 440 mm</li> <li>Weight: 2.9 kg</li> </ul> <h3>Power</h3> <ul><li>AC input voltage: 100 - 240 V</li> <li>AC input frequency: 50 - 60 Hz</li> <li>Power protection features: Over current, Over voltage, Overheating</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -20 - 70 °C</li> <li>Operating relative humidity (H-H): 10 - 90%</li> <li>Storage relative humidity (H-H): 10 - 90%</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x</li> <li>10G support: No</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T</li> <li>Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 4000 entries</li> <li>Switching capacity: 8.8 Gbit/s</li> <li>Jumbo frames support: Yes</li> <li>Jumbo frames: 10000</li> <li>Packet forwarding rate (1 Gbps): 1488000 pps</li> <li>Packet forwarding rate (100 Mbps): 148800 pps</li> <li>Packet forwarding rate (10 Mbps): 14880 pps</li> <li>Packet buffer memory: 0.512 MB</li> </ul> <h3>Packaging data</h3> <ul><li>Cables included: AC</li> <li>Manual: Yes</li> <li>Package width: 260 mm</li> <li>Package depth: 95 mm</li> <li>Package height: 540 mm</li> <li>Package weight: 3.5 kg</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Unmanaged</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: Yes</li> <li>Product colour: Black</li> <li>Housing material: Metal</li> <li>LED indicators: LAN, PoE, Power, Uplink</li> <li>On/off switch: Yes</li> <li>Country of origin: Taiwan</li> <li>Certification: FCC Class A, CE</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet plus (PoE+) ports quantity: 24</li> <li>Power over Ethernet (PoE) power per port: 30 W</li> <li>Total Power over Ethernet (PoE) budget: 150 W</li> </ul> <h3>Performance</h3> <ul><li>Mean time between failures (MTBF): 50000 h</li> </ul> <h3>Logistics data</h3> <ul><li>Master (outer) case width: 510 mm</li> <li>Master (outer) case length: 280 mm</li> <li>Master (outer) case height: 555 mm</li> <li>Harmonized System (HS) code: 85176990</li> <li>Master (outer) case gross weight: 18 kg</li> </ul>
