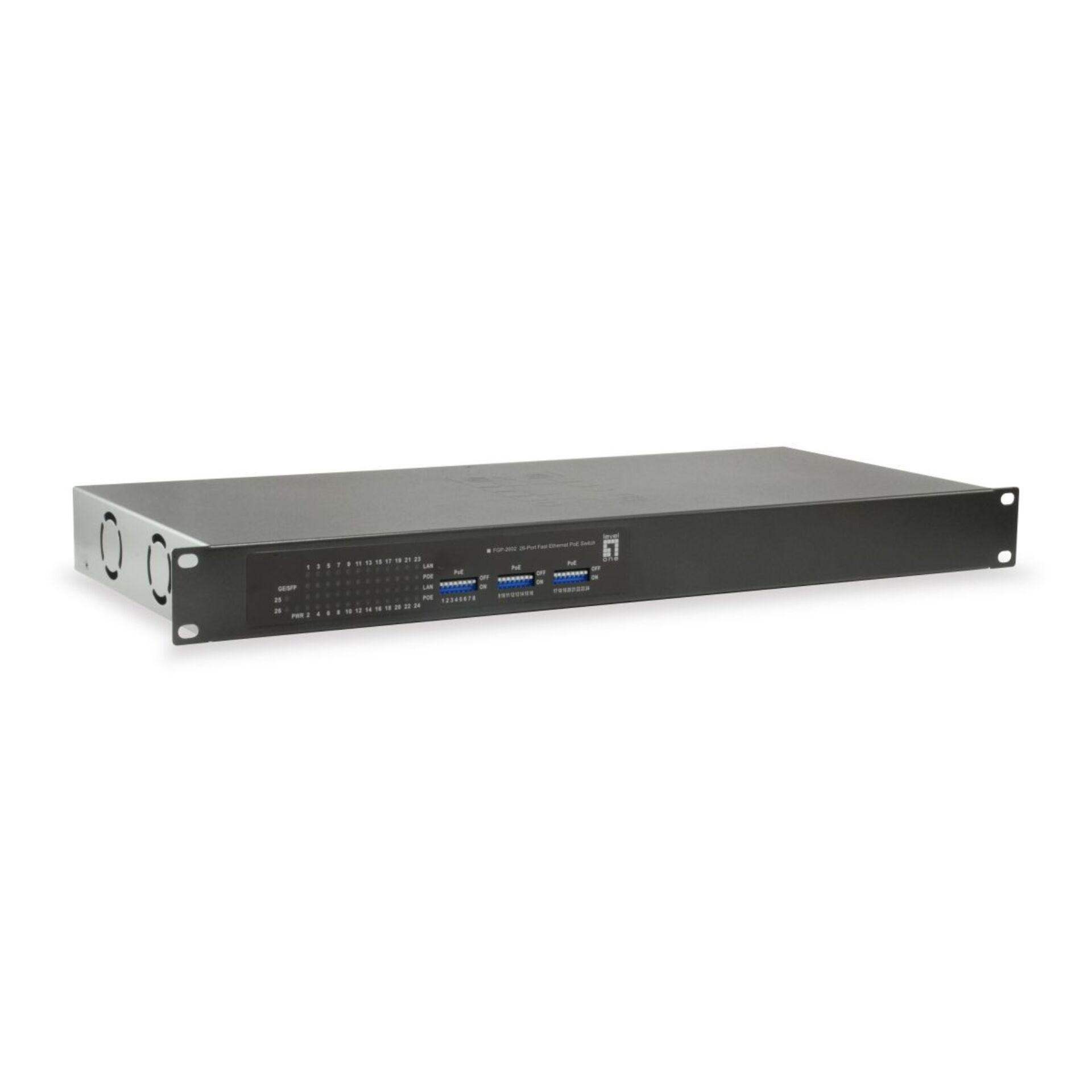

LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x

Beschreibung

<p>The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2602 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 26</li> <li>Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)</li> <li>Fast Ethernet (copper) ports quantity: 24</li> <li>Gigabit Ethernet (copper) ports quantity: 2</li> <li>SFP module slots quantity: 2</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 200 mm</li> <li>Depth: 44 mm</li> <li>Height: 440 mm</li> <li>Weight: 2.9 kg</li> </ul> <h3>Power</h3> <ul><li>AC input voltage: 100 - 240 V</li> <li>AC input frequency: 50 - 60 Hz</li> <li>Power protection features: Over current, Over voltage, Overheating</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -20 - 70 °C</li> <li>Operating relative humidity (H-H): 10 - 90%</li> <li>Storage relative humidity (H-H): 10 - 90%</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX</li> <li>Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 4000 entries</li> <li>Switching capacity: 8.8 Gbit/s</li> <li>Jumbo frames support: Yes</li> <li>Jumbo frames: 10000</li> <li>Packet forwarding rate (1 Gbps): 1488000 pps</li> <li>Packet forwarding rate (100 Mbps): 148800 pps</li> <li>Packet forwarding rate (10 Mbps): 14880 pps</li> </ul> <h3>Packaging data</h3> <ul><li>Cables included: AC</li> <li>Manual: Yes</li> <li>Package width: 260 mm</li> <li>Package depth: 95 mm</li> <li>Package height: 540 mm</li> <li>Package weight: 3.5 kg</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Unmanaged</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: Yes</li> <li>Product colour: Black</li> <li>Housing material: Metal</li> <li>LED indicators: LAN, PoE, Power, Uplink</li> <li>Safety: FCC Class A, CE</li> <li>Regulatory Approvals: EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet plus (PoE+) ports quantity: 24</li> <li>Power over Ethernet (PoE) power per port: 30 W</li> <li>Total Power over Ethernet (PoE) budget: 380 W</li> </ul> <h3>Performance</h3> <ul><li>Buffer size: 512 KB</li> <li>Mean time between failures (MTBF): 50000 h</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85176990</li> </ul>
