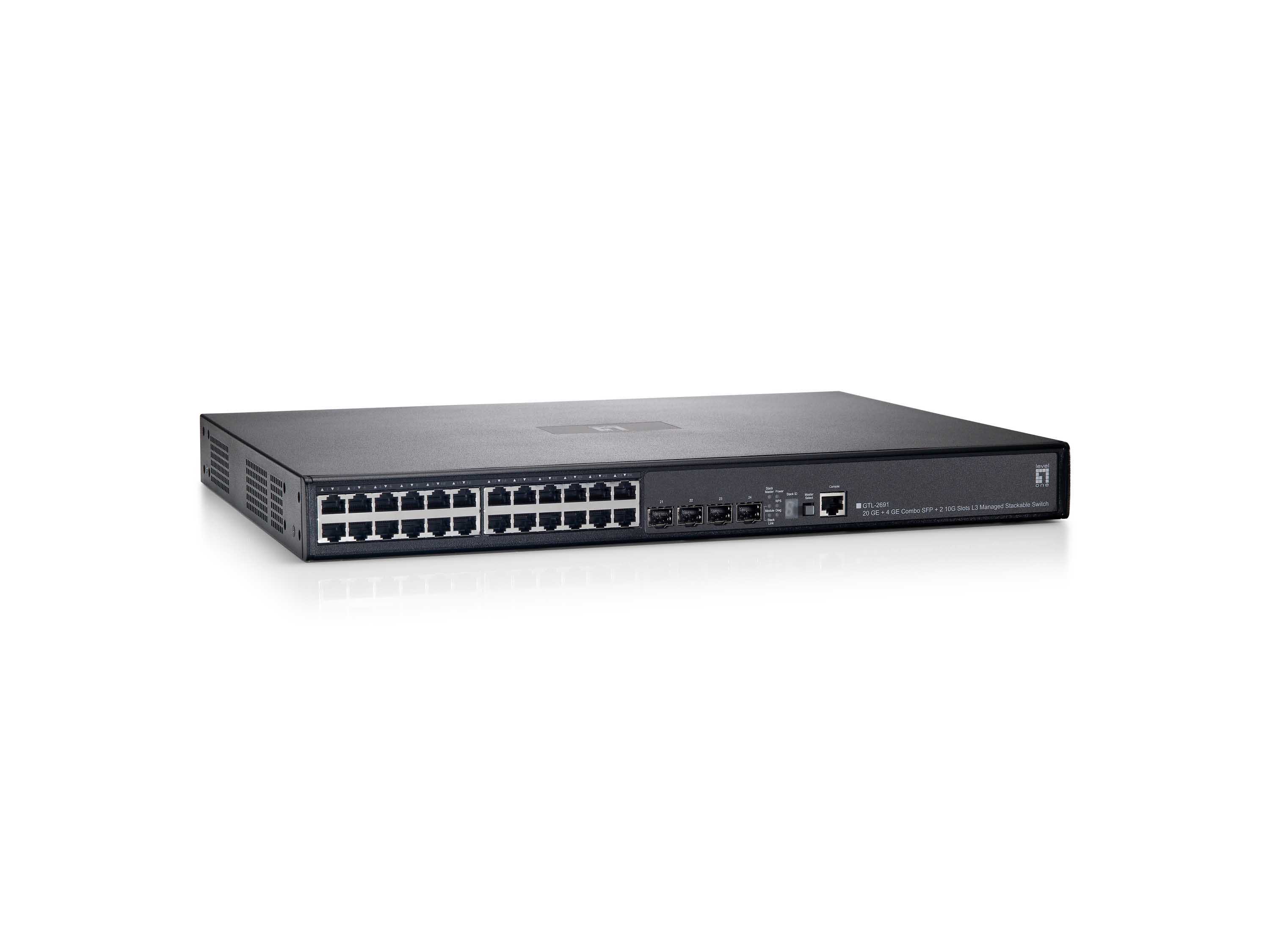

LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4

Beschreibung

<p>The LevelOne GEL-2691 is a Layer 3 Managed switch with 24 x 1000Base-T ports associated with 4 x Gigabit SFP (Small Form Factor Pluggable) slots + 2 optional 10 Gigabit Ethernet Slots for SFP/XFP. This switch is also 19-inch rack-mountable and 1 x redundant power supply connector, which provides convenient and flexible installation.<br><br>The switch provides a flexible, web-based management interface SNMP for both IPv4 and IPv6 as well as layer 3 management features. Despite its affordable pricing, the GEL-2691 is equipped with many advanced features such as unicast routes, multicast routing IGMP V1/V2/V3, IGMP v3 proxy, IP VLANs, VLAN trunk, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL) of up to 512 entries for easy network security, Link Aggregation Control (LACP), IEEE 802.1p QoS with 8 priority queues much more.<br><br>An ideal network solution for workgroups and edge deployments, or anyone looking for an affordable and efficient way to expand their network.<br><br>- 24 Gigabit Ethernet ports with 4 shared SFP and 2 10-Gigabit slots<br>- Multicast routing IGMP V1/V2/V3, MLD<br>- Supports DHCP relay features under Layer 3 protocol<br>- Supports Access Control List (ACL) authentication of up to 256 entries and port-based security with IEEE802.1X<br>- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring<br>- IEEE 802.3ad LACP for auto port aggregation<br>- IEEE 802.1p QoS with 8 priority queues<br>- Supports IPv4/IPv6 network operation<br>- Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 24</li> <li>Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)</li> <li>Installed SFP modules quantity: 0</li> <li>Installed SFP+ modules quantity: 0</li> <li>Combo SFP ports quantity: 4</li> <li>SFP/SFP+ slots quantity: 2</li> <li>SFP module slots quantity: 4</li> <li>Console port: RJ-45</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 440 mm</li> <li>Depth: 415 mm</li> <li>Height: 44 mm</li> <li>Weight: 5.7 kg</li> </ul> <h3>Power</h3> <ul><li>AC input voltage: 100 - 240 V</li> <li>AC input frequency: 47/63 Hz</li> <li>Power consumption (typical): 49.6 W</li> <li>Power consumption (max): 63.96 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -40 - 70 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> </ul> <h3>Protocols</h3> <ul><li>Management protocols: Telnet, SNMP, SNTP, RMON,</li> <li>Supported network protocols: IPv6, IPv4, BOOTP</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x</li> <li>10G support: Yes</li> <li>Port mirroring: Yes</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> <li>Rate limiting: Yes</li> <li>Spanning tree protocol: Yes</li> <li>Active link detection: Yes</li> <li>MAC address auto-learning supported: Yes</li> <li>MAC address auto-aging supported: Yes</li> <li>VLAN support: Yes</li> <li>Virtual LAN features: Private VLAN, Port-based VLAN</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 16000 entries</li> <li>Switching capacity: 128 Gbit/s</li> <li>Forwarding rate: 95.2 Mpps</li> <li>Store-and-forward: Yes</li> <li>Number of queues: 8</li> <li>Number of static routes: 512</li> <li>Jumbo frames support: Yes</li> <li>Jumbo frames: 9000</li> <li>Packet forwarding rate (1 Gbps): 1488000 pps</li> <li>Packet forwarding rate (100 Mbps): 148000 pps</li> <li>Packet forwarding rate (10 Mbps): 14880 pps</li> </ul> <h3>Packaging data</h3> <ul><li>Package type: Box</li> <li>Package width: 530 mm</li> <li>Package depth: 420 mm</li> <li>Package height: 135 mm</li> </ul> <h3>Security</h3> <ul><li>Access Control List (ACL): Yes</li> <li>IGMP snooping: Yes</li> <li>SSH/SSL support: Yes</li> <li>Loop protection: Yes</li> <li>BPDU filtering/protection: Yes</li> <li>Auto-edge port: Yes</li> <li>Authentication: MAC-based authentication</li> </ul> <h3>Certificates</h3> <ul><li>Certification: FCC Part 15 Class A, CE, RoHS</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Managed</li> <li>Switch layer: L3</li> <li>Quality of Service (QoS) support: Yes</li> <li>Web-based management: Yes</li> <li>Traffic classification: Yes</li> <li>ARP inspection: Yes</li> <li>System event log: Yes</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: Yes</li> <li>Stackable: Yes</li> <li>Product colour: Black</li> <li>LED indicators: Yes</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): No</li> </ul> <h3>Performance</h3> <ul><li>Firmware upgradeable: Yes</li> <li>Buffer size: 2048 KB</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85176990</li> </ul> <h3>
