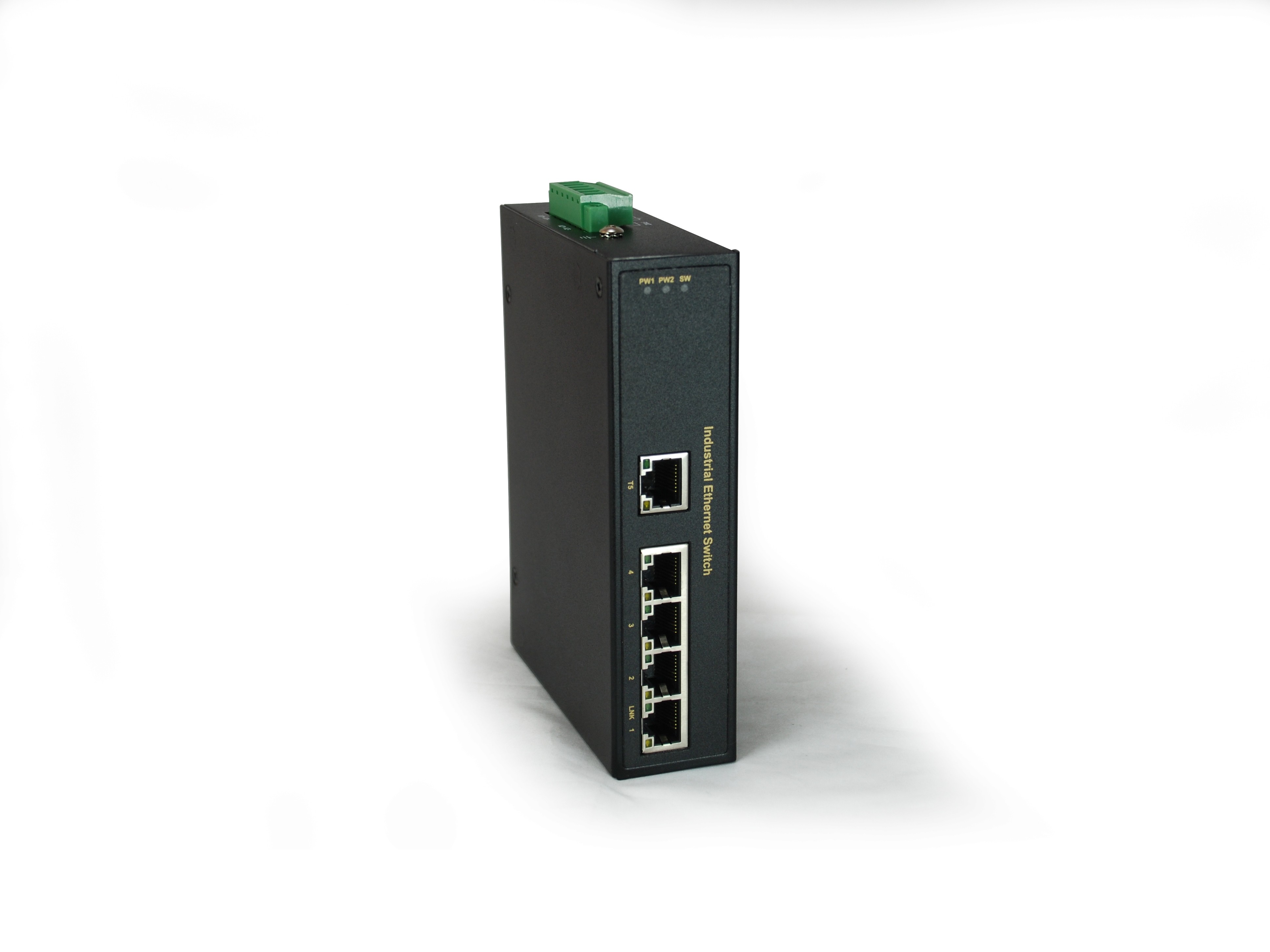

LevelOne 5-Port Fast Ethernet Industrial Switch, -40°C to 75°C -

Beschreibung

<p>The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 5</li> <li>Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)</li> <li>Installed SFP modules quantity: 0</li> <li>Installed SFP+ modules quantity: 0</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 36 mm</li> <li>Depth: 105 mm</li> <li>Height: 142 mm</li> <li>Weight: 470 g</li> </ul> <h3>Power</h3> <ul><li>Output voltage: 24 V</li> <li>Output current: 1 A</li> <li>Power consumption (typical): 3.76 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -40 - 75 °C</li> <li>Storage temperature (T-T): -40 - 85 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> <li>Storage relative humidity (H-H): 5 - 95%</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x</li> <li>10G support: No</li> <li>Copper ethernet cabling technology: 10BASE-T, 100BASE-TX</li> <li>Full duplex: Yes</li> <li>Flow control support: Yes</li> <li>Auto MDI/MDI-X: Yes</li> <li>Auto-negotiation: Yes</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 1024 entries</li> <li>Switching capacity: 1 Gbit/s</li> <li>Store-and-forward: Yes</li> <li>Packet forwarding rate (100 Mbps): 148000 pps</li> <li>Packet forwarding rate (10 Mbps): 14880 pps</li> <li>Packet buffer memory: 1 MB</li> </ul> <h3>Packaging data</h3> <ul><li>Wall mounting kit: Yes</li> <li>Terminal block included: Yes</li> <li>Package type: Box</li> <li>Package width: 65 mm</li> <li>Package depth: 165 mm</li> <li>Package height: 215 mm</li> <li>Package weight: 180 g</li> </ul> <h3>Certificates</h3> <ul><li>Certification: FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN50121-4 (pending) EN50155 (pending) EN60068-2-6 EN60068-2-27 EN60068-2-32</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Unmanaged</li> </ul> <h3>Packaging content</h3> <ul><li>Quick start guide: Yes</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: No</li> <li>Product colour: Black</li> <li>Housing material: Metal</li> <li>LED indicators: Link, Power</li> <li>International Protection (IP) code: IP30</li> <li>Wall mountable: Yes</li> <li>Safety: EN60950-1</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): No</li> </ul> <h3>Performance</h3> <ul><li>Internal memory: 1 MB</li> <li>Maximum data transfer rate: 100 Mbit/s</li> </ul> <h3>Logistics data</h3> <ul><li>Country of origin: Taiwan</li> <li>Harmonized System (HS) code: 85176990</li> </ul>
