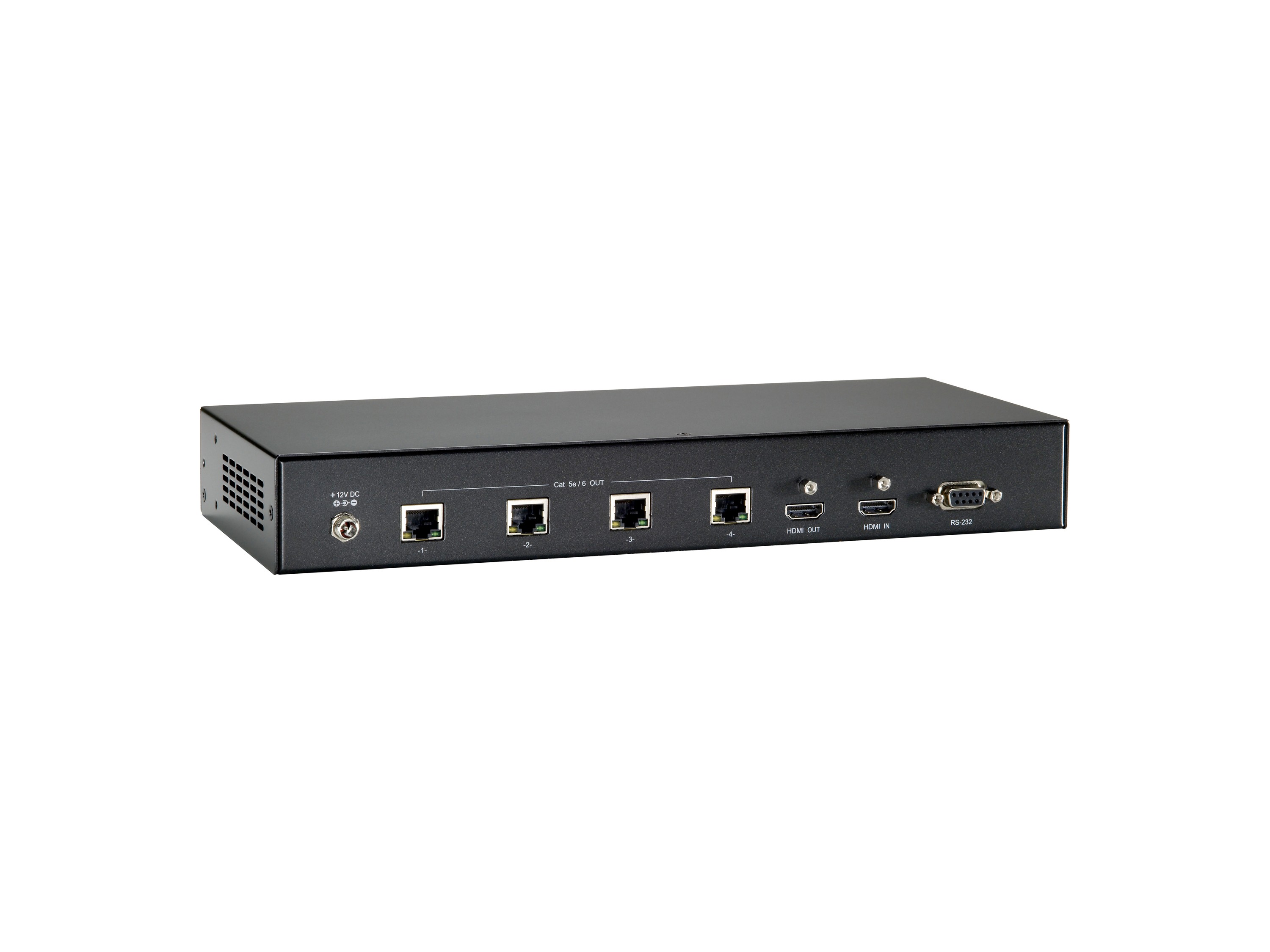

LevelOne HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel

Beschreibung

<p>The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.<br><br>The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.<br><br>All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.<br><br><b>Key Features</b><br>- Simple Plug and Play installation<br>- Built-in EDID Hot Plug Detection (HPD)<br>- HDMI outputs with EDID management<br>- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232<br>- Bi-Directional RS-232 pass through & IR Control<br>- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz<br>- HDMI and HDCP complaint<br>- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio<br>- Supports 3D, CEC & Lip Sync pass-through<br>- Screw-in power socket for added safety</p> <h3>Ports &amp; interfaces</h3> <ul><li>RJ-45 output ports: 4</li> <li>HDMI in: 1</li> <li>Number of HDMI outputs: 1</li> <li>RS-232 input ports: 1</li> <li>3.5 mm (1/8-inch) in: Yes</li> <li>3.5 mm (1/8-inch) out: Yes</li> <li>DC-in jack: Yes</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 300 mm</li> <li>Depth: 160 mm</li> <li>Height: 44 mm</li> <li>Weight: 1.27 kg</li> <li>Transmitter dimensions (WxDxH): 300 x 160 x 44 mm</li> <li>Transmitter weight: 1.22 kg</li> </ul> <h3>Power</h3> <ul><li>Operating voltage: 12 V</li> <li>Power consumption (transmitter) (max): 5000 mA</li> <li>Current: 6.6 A</li> </ul> <h3>Packaging data</h3> <ul><li>Package dimensions (WxDxH): 280 x 160 x 120 mm</li> <li>Package width: 280 mm</li> <li>Package depth: 160 mm</li> <li>Package height: 120 mm</li> <li>Package weight: 2.2 kg</li> <li>Package type: Box</li> </ul> <h3>Packaging content</h3> <ul><li>AC adapter included: Yes</li> <li>Cables included: AC</li> <li>Manual: Yes</li> <li>Remote control included: Yes</li> </ul> <h3>Features</h3> <ul><li>Type: AV transmitter</li> <li>Maximum resolution: 3840 x 2160 pixels</li> <li>Cable types supported: Cat5e, Cat6</li> <li>Maximum transfer distance: 100 m</li> <li>Audio system: Multichannel</li> <li>Audio output channels: 7.1 channels</li> <li>Supported video modes: 720p, 1080p</li> <li>Bandwidth: 10.2 Gbit/s</li> <li>HDCP: Yes</li> <li>Material: Metal</li> <li>Colour depth: 36 bit</li> <li>3D: Yes</li> <li>HDCP &amp; EDID bypass: Yes</li> <li>Consumer Electronics Control (CEC) support: Yes</li> <li>Carrier frequency: 38 kHz</li> <li>Baud rate: 115.2 Kbit/s</li> <li>Plug and Play: Yes</li> <li>Product colour: Black</li> </ul>
