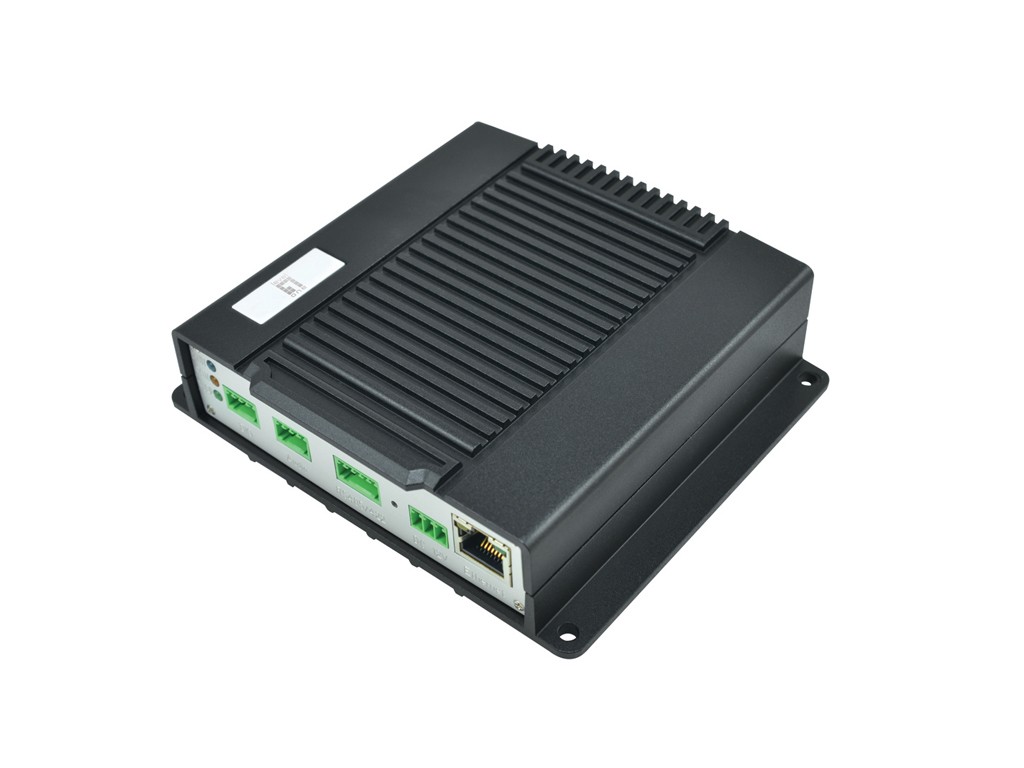

LevelOne HUBBLE 4-Channel Video Encoder, 802.3af PoE - LevelOne

Beschreibung

<p><b>Key Features</b><br>- 4 channels of up to 120fps in D1 resolution - 30fps per channel<br>- Real time H.264, MJPEG compression<br>- Dual Stream simultaneously<br>- Powered by 12VDC/ PoE 802.3af<br>- 2-way audio (Line, line out) X 4<br>- Free bundle 64-channel software with Smart Search<br>- IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime<br>- DI/DO X4<br>- RS-485 & RS-422<br>- MicroSD/MicroSDHC/MicroSDXC memory card slot</p> <h3>Ports &amp; interfaces</h3> <ul><li>BNC input ports: 4</li> <li>I/O terminal ports: 3</li> <li>Ethernet LAN (RJ-45) ports: 1</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 137 mm</li> <li>Depth: 122 mm</li> <li>Height: 36 mm</li> <li>Weight: 462 g</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -10 - 50 °C</li> <li>Operating relative humidity (H-H): 10 - 85%</li> </ul> <h3>Network</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Networking standards: IEEE 802.3af</li> </ul> <h3>Video</h3> <ul><li>Maximum video resolution: 960 x 480 pixels</li> <li>Maximum frame rate: 30 fps</li> <li>Video compression formats: H.264, M-JPEG</li> <li>NTSC resolutions: 960 x 480, pixels</li> <li>PAL resolutions: 960 x 576, 720 x 576 pixels</li> <li>Channels quantity: 4 channels</li> </ul> <h3>Packaging data</h3> <ul><li>Package width: 200 mm</li> <li>Package depth: 90 mm</li> <li>Package height: 200 mm</li> <li>Package weight: 146 g</li> </ul> <h3>Security</h3> <ul><li>Video motion detection: Yes</li> </ul> <h3>Packaging content</h3> <ul><li>Resource CD: Yes</li> </ul> <h3>Design</h3> <ul><li>Certification: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)</li> </ul> <h3>Performance</h3> <ul><li>Card reader integrated: Yes</li> <li>Compatible memory cards: SD, SDHC, SDXC</li> <li>PTZ control: Yes</li> </ul>
