LevelOne PoE Repeater, 802.3at/af PoE - LevelOne PoE Repeater, 802.

Beschreibung

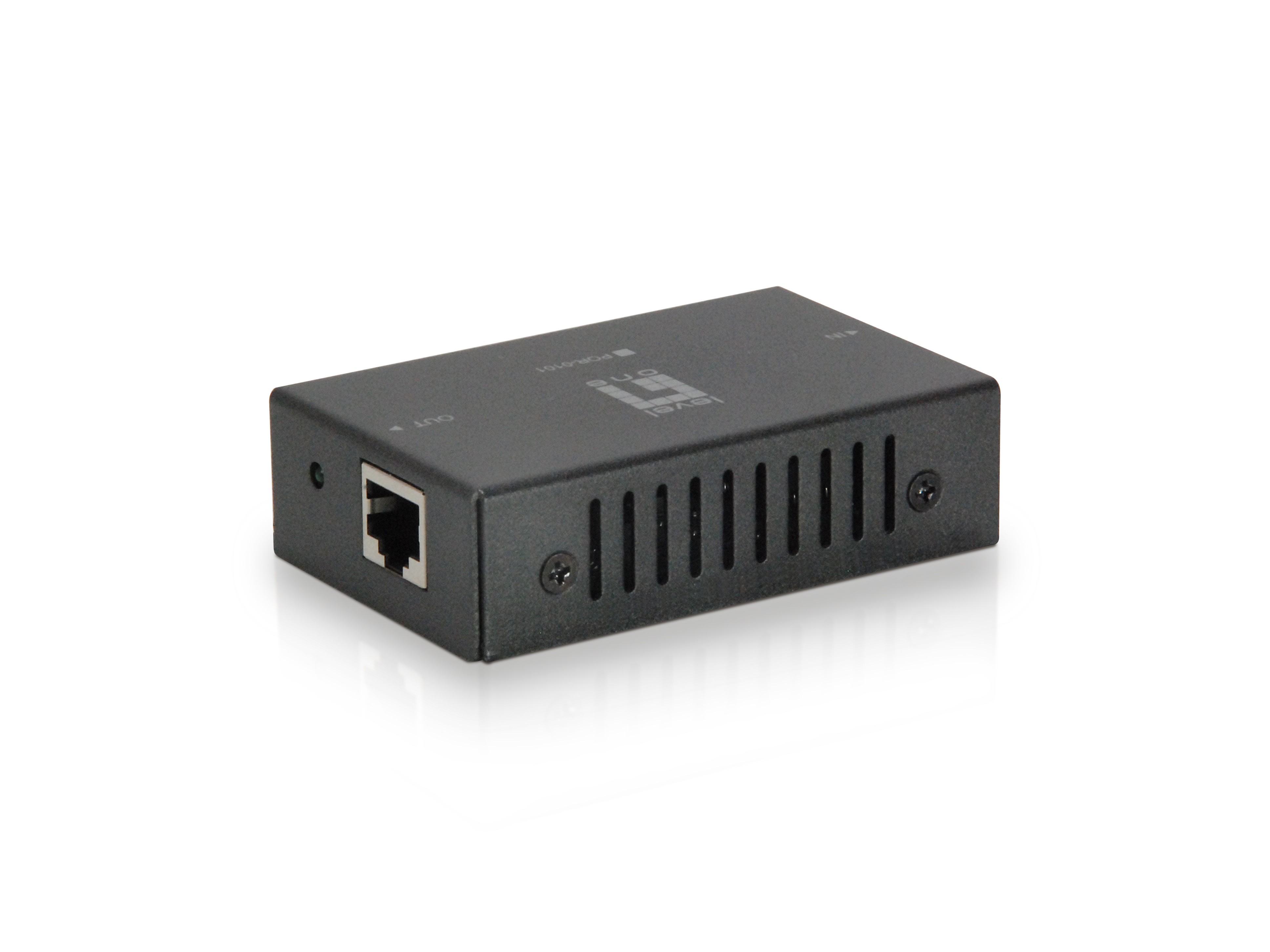

<p>For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN Access Points, Network Cameras and other appliances with high-speed to the network for greater deployment flexibility.<br><br>- High Power Midspan PoE compliant to simplify deployment and installation<br>- 10/100Mbps wire speed transmission and reception<br>- Forwards Power over Ethernet to remote device<br>- Extends PoE connection for another 100 meters<br>- Simple Plug and Play installation, no additional power supply required</p> <h3>Ports &amp; interfaces</h3> <ul><li>Ethernet LAN (RJ-45) ports: 2</li> <li>Power over Ethernet (PoE) ports quantity: 2</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 80 mm</li> <li>Depth: 70 mm</li> <li>Height: 23 mm</li> <li>Weight: 200 g</li> </ul> <h3>Power</h3> <ul><li>Power consumption (max): 2.5 W</li> <li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet (PoE) voltage range: 46 - 57 V</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -20 - 70 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> <li>Storage relative humidity (H-H): 5 - 95%</li> </ul> <h3>Network</h3> <ul><li>Cabling technology: 10/100Base-T(X)</li> <li>Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x</li> </ul> <h3>Packaging data</h3> <ul><li>Package type: Box</li> <li>Package width: 93 mm</li> <li>Package depth: 43 mm</li> <li>Package height: 140 mm</li> <li>Package weight: 100 g</li> </ul> <h3>Certificates</h3> <ul><li>Compliance certificates: RoHS</li> </ul> <h3>Packaging content</h3> <ul><li>Quick start guide: Yes</li> </ul> <h3>Design</h3> <ul><li>Product colour: Black</li> <li>Mounting type: Wall</li> <li>LED indicators: PoE, Power</li> <li>Country of origin: Taiwan</li> <li>Certification: FCC Part 15, Class B, CE</li> </ul> <h3>Performance</h3> <ul><li>Type: Network repeater</li> <li>Maximum transfer distance: 100 m</li> <li>Data transfer rate: 100 Mbit/s</li> <li>Plug and Play: Yes</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85176990</li> </ul>
