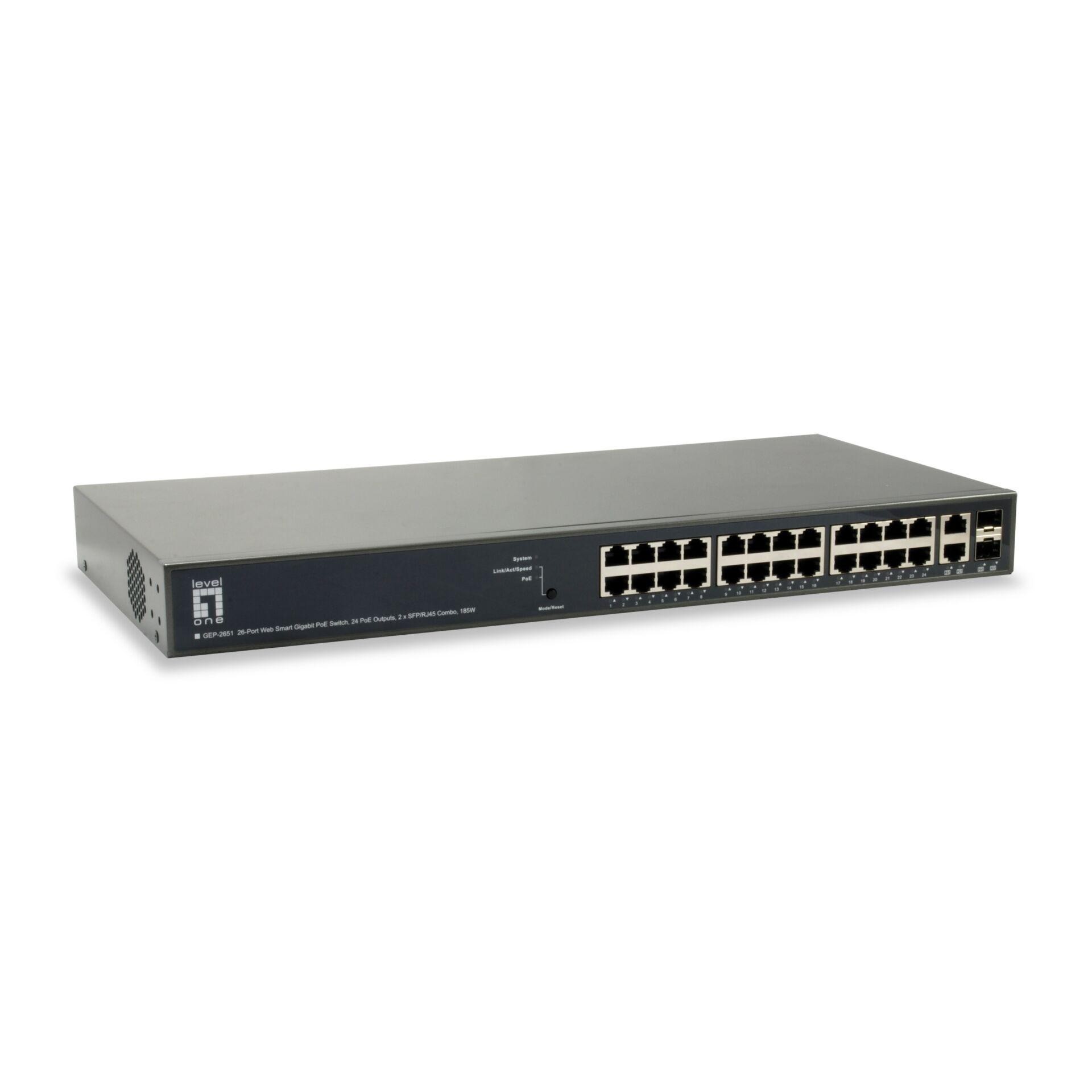

LevelOne TURING 26-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs,

Beschreibung

<p>GEP-2651 Web Smart Gigabit PoE Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GEP-2651 delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports and 2 Combo GbE RJ45/SFP ports. GEP-2651 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2651 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications. <br><br><b>Key Features</b><br>- 24 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots<br>- QoS control for traffic prioritization and bandwidth management<br>- DHCP Client/Server<br>- Supports IPv4/IPv6 network operation<br>- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)<br>- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring<br>- IP Multicast Filtering through IGMP Snooping V1 / V2 / V3<br>- Supports port-based VLAN, IEEE 802.1Q VLAN Tagging<br>- IEEE 802.3ad LACP for auto port aggregation</p> <h3>Ports &amp; interfaces</h3> <ul><li>Basic switching RJ-45 Ethernet ports quantity: 24</li> <li>Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)</li> <li>Gigabit Ethernet (copper) ports quantity: 24</li> <li>Combo SFP ports quantity: 2</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 442 mm</li> <li>Depth: 211 mm</li> <li>Height: 44 mm</li> <li>Weight: 3.1 kg</li> </ul> <h3>Power</h3> <ul><li>AC input voltage: 100 - 240 V</li> <li>AC input frequency: 50 - 60 Hz</li> <li>Power consumption (typical): 18.29 W</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 45 °C</li> <li>Storage temperature (T-T): -20 - 70 °C</li> <li>Operating relative humidity (H-H): 10 - 90%</li> <li>Storage relative humidity (H-H): 10 - 90%</li> </ul> <h3>Protocols</h3> <ul><li>Supported network protocols: IPv4/IPv6</li> </ul> <h3>Network</h3> <ul><li>Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z</li> <li>Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T</li> <li>Port mirroring: Yes</li> <li>Flow control support: Yes</li> <li>Link aggregation: Yes</li> <li>Broadcast storm control: Yes</li> <li>Spanning tree protocol: Yes</li> <li>Cable length detection: Yes</li> <li>MAC address auto-learning supported: Yes</li> <li>MAC address auto-aging supported: Yes</li> <li>VLAN support: Yes</li> <li>Virtual LAN features: Tagged VLAN, MAC address-based VLAN, Port-based VLAN</li> <li>Number of VLANs: 256</li> </ul> <h3>Data transmission</h3> <ul><li>MAC address table: 8000 entries</li> <li>Switching capacity: 52 Gbit/s</li> <li>Forwarding rate: 38.7 Mpps</li> <li>Store-and-forward: Yes</li> <li>Static route: Yes</li> <li>Jumbo frames support: Yes</li> <li>Jumbo frames: 9600</li> </ul> <h3>Packaging data</h3> <ul><li>Cables included: AC</li> <li>Quick start guide: Yes</li> <li>Manual: Yes</li> <li>Package width: 300 mm</li> <li>Package depth: 520 mm</li> <li>Package height: 90 mm</li> <li>Package weight: 3.5 kg</li> </ul> <h3>Security</h3> <ul><li>DHCP features: DHCP server, DHCP snooping, DHCP client</li> <li>Access Control List (ACL): Yes</li> <li>IGMP snooping: Yes</li> <li>Security algorithms: 802.1x RADIUS</li> <li>Static port security: Yes</li> <li>Loop protection: Yes</li> <li>BPDU filtering/protection: Yes</li> </ul> <h3>Management features</h3> <ul><li>Switch type: Managed</li> <li>Switch layer: L3</li> <li>Quality of Service (QoS) support: Yes</li> <li>Web-based management: Yes</li> <li>System event log: Yes</li> </ul> <h3>Optical fiber</h3> <ul><li>Fiber ethernet cabling technology: 1000BASE-X</li> </ul> <h3>Design</h3> <ul><li>Rack mounting: Yes</li> <li>Product colour: Black</li> <li>Reset button: Yes</li> <li>LED indicators: Activity, Link, PoE, Speed</li> <li>Country of origin: Taiwan</li> <li>Safety: UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10</li> <li>Certification: CE, FCC Part 15 Class A, RoHS</li> </ul> <h3>Power over Ethernet (PoE)</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Power over Ethernet plus (PoE+) ports quantity: 24</li> <li>Power over Ethernet (PoE) power per port: 30 W</li> <li>Total Power over Ethernet (PoE) budget: 185 W</li> </ul> <h3>Performance</h3> <ul><li>Internal memory: 128 MB</li> <li>Flash memory: 32 MB</li> <li>Firmware upgradeable: Yes</li> <li>Buffer size: 512 KB</li> <li>Mean time between failures (MTBF): 211272 h</li> </ul> <h3>Logistics data</h3> <ul><li>Master (outer) case width: 482 mm</li> <li>Master (outer) case length:
