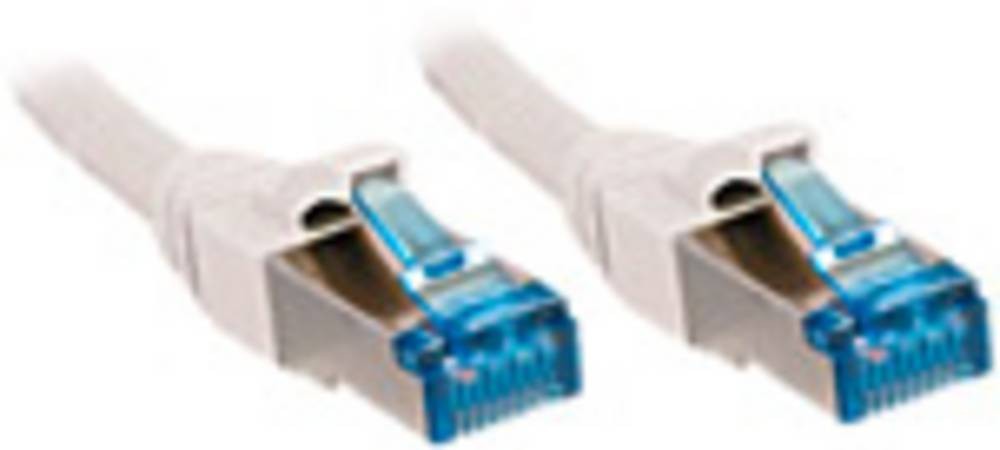

Lindy 47200 networking cable White 20 m Cat6a S/FTP (S-STP) - Lindy

Beschreibung

<p>Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.<br>Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.<br>The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.<br>The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.<br>Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.<br>Available colours: Black, Blue, Grey, Red, White</p> <h3>Weight &amp; dimensions</h3> <ul><li>Outer diameter: 6 mm</li> <li>Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm</li> <li>Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -10 - 60 °C</li> <li>Storage temperature (T-T): -20 - 75 °C</li> </ul> <h3>Packaging data</h3> <ul><li>Package type: Polybag</li> </ul> <h3>Certificates</h3> <ul><li>Certification: RoHS, REACH, UL</li> </ul> <h3>Packaging content</h3> <ul><li>Quantity per pack: 1 pc(s)</li> </ul> <h3>Features</h3> <ul><li>Cable length: 20 m</li> <li>Cable standard: Cat6a</li> <li>Cable shielding: S/FTP (S-STP)</li> <li>Connector 1: RJ-45</li> <li>Connector 2: RJ-45</li> <li>Product colour: White</li> <li>Connector 1 gender: Male</li> <li>Connector 2 gender: Male</li> <li>Connector contacts plating: Nickel/Gold</li> <li>Connector shielding: Yes</li> <li>Connector shield material: Aluminium</li> <li>Jacket material: Low smoke zero halogen (LSZH)</li> <li>Conductor material: Copper</li> <li>Cable class: E</li> <li>Cabling technology: 10/100/1000Base-T(X)</li> <li>AWG wire size: 27</li> <li>Data transfer rate: 1000 Mbit/s</li> <li>Frequency: 500 MHz</li> <li>Bend radius (min): 7.2 cm</li> <li>Plug and Play: Yes</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 84733080</li> </ul>
