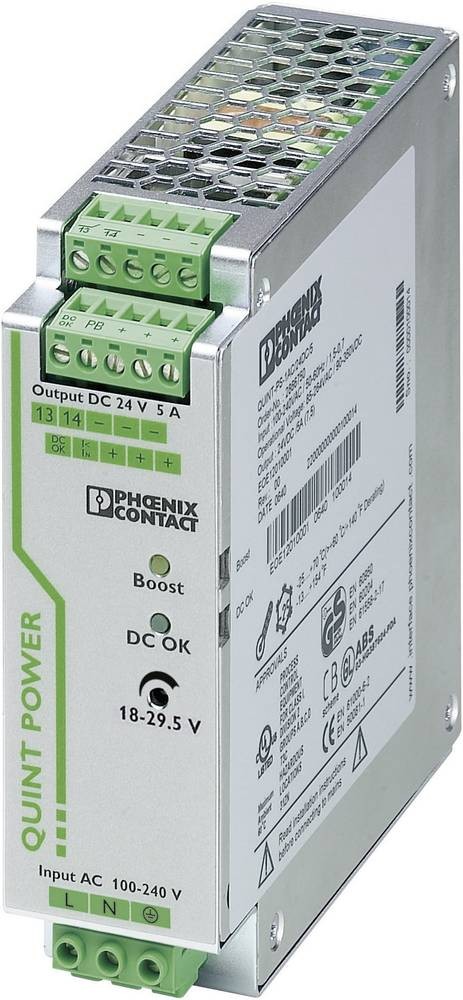

Phoenix Contact QUINT-PS/1AC/24DC/5 power supply unit 120 W Grey -

Beschreibung

<p>Phoenix Contact QUINT-PS/1AC/24DC/5. Total power: 120 W, AC input voltage: 85 - 264 V, AC input frequency: 45 - 65 Hz. Mean time between failures (MTBF): 1134000 h. Product colour: Grey. Compliance certificates: RoHS. Width: 40 mm, Depth: 125 mm, Height: 130 mm</p> <h3>Ports &amp; interfaces</h3> <ul><li>Peripheral (Molex) power connectors (4-pin): 0</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 40 mm</li> <li>Depth: 125 mm</li> <li>Height: 130 mm</li> <li>Weight: 700 g</li> </ul> <h3>Power</h3> <ul><li>Total power: 120 W</li> <li>AC input voltage: 85 - 264 V</li> <li>AC input frequency: 45 - 65 Hz</li> <li>Efficiency: 90%</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): -25 - 70 °C</li> <li>Storage temperature (T-T): -40 - 85 °C</li> <li>Operating relative humidity (H-H): 0 - 95%</li> </ul> <h3>Certificates</h3> <ul><li>Compliance certificates: RoHS</li> </ul> <h3>Design</h3> <ul><li>Product colour: Grey</li> <li>Number of fans: 0 fan(s)</li> <li>LED indicators: Yes</li> </ul> <h3>Performance</h3> <ul><li>AWG wire size (min): 20</li> <li>AWG wire size (max): 12</li> <li>Mean time between failures (MTBF): 1134000 h</li> </ul>
