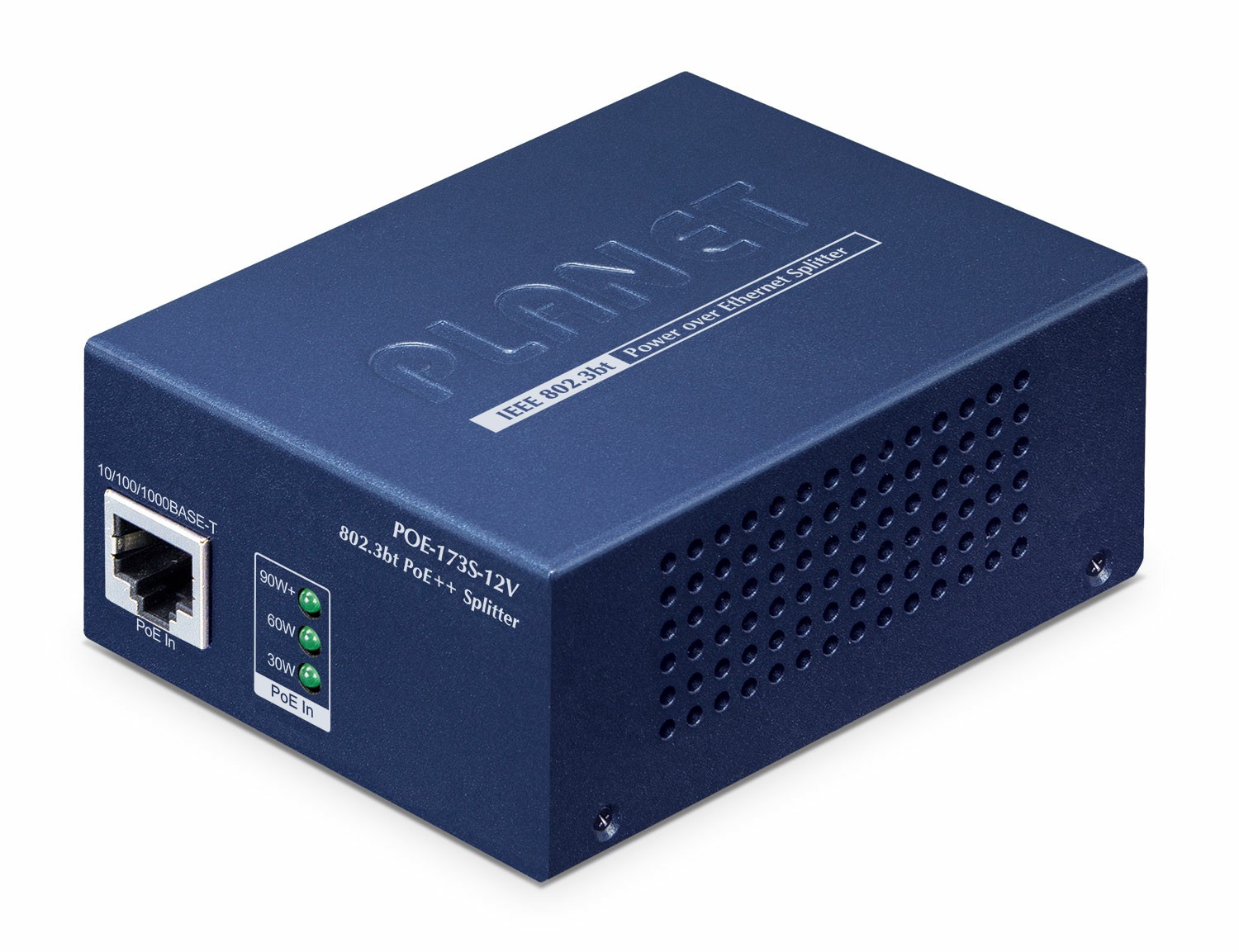

PLANET POE-173S-12V network splitter Power over Ethernet (PoE) Blue -

Beschreibung

<p>Quick and Easy Gigabit 802.3bt PoE++ Network Deployment<br><br>PLANET POE-173S-12V Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a DC 12V output, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.<br><br>The POE-173S-12V, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices, such as:<br><br>- PTZ speed dome camera<br>- Thin client<br>- AIO (All-in-One) touch PC<br>- Remote digital signage display<br>- Non-PoE network devices that need higher power to work normally<br><br>The POE-173S-12V frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.<br><br><br>Stable DC 12V Power Output Voltage<br><br>The POE-173S-12V can supply 12V DC output to the common network devices, it highly increases the flexibility of the product applications.<br> <br><br>802.3bt PoE++ Power over 4-pair UTP Cable<br><br>The POE-173S-12V and 802.3bt type-4 PoE++ switches use cables that meet the IEEE 802.3bt standard. Instead of delivering power over 2-pair twisted UTP cable be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.<br><br><br>Environment-friendly Structure<br><br>The POE-173S-12V comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S-12V is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.<br><br><br><br>Learn more: https://www.planet.com.tw/en/product/poe-173s-12v</p> <h3>Ports &amp; interfaces</h3> <ul><li>Ethernet LAN (RJ-45) ports: 1</li> <li>RJ-45 input ports: 1</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 94 mm</li> <li>Depth: 70.3 mm</li> <li>Height: 39.2 mm</li> <li>Weight: 265 g</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Storage temperature (T-T): -10 - 70 °C</li> <li>Operating relative humidity (H-H): 5 - 95%</li> </ul> <h3>Certificates</h3> <ul><li>Certification: FCC, CE, UL</li> </ul> <h3>Features</h3> <ul><li>Power over Ethernet (PoE): Yes</li> <li>Product colour: Blue</li> <li>Housing material: Metal</li> <li>Wall mountable: Yes</li> <li>LED indicators: PoE</li> <li>Plug and Play: Yes</li> </ul>
