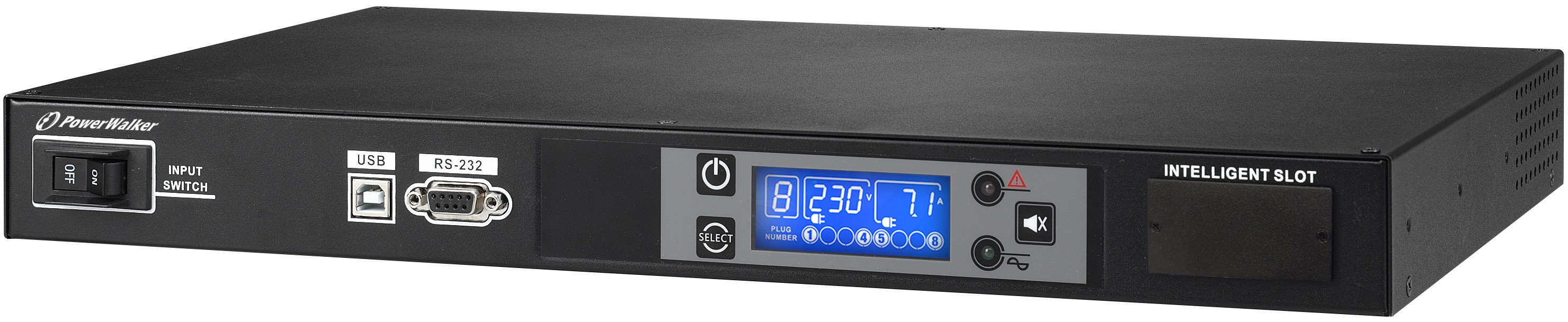

PowerWalker RC-16A power distribution unit (PDU) 8 AC outlet(s) 1U

Beschreibung

<p>PowerWalker PDU RC-16A is designed to distribute AC power from a single source to 8 outputs with advanced load monitoring and local or remote ON/OFF switching control of individual outlets.<br><br>- 1U form factor for horizontal or vertical installation<br>- Individual real-time current measurement<br>- Total active power measurement<br>- Schedule On/Off control for all outlets<br>- Sequential turn-on outlets delay setting to prevent high peak current<br>- RS-232/USB and SNMP multiple communication<br>- Over-current threshold for output socket</p> <h3>Ports &amp; interfaces</h3> <ul><li>AC outlets quantity: 8 AC outlet(s)</li> <li>AC outlet types: C13 coupler</li> <li>Power plug: C20 coupler</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 250 mm</li> <li>Depth: 430 mm</li> <li>Dimensions (WxDxH): 250 x 430 x 44 mm</li> <li>Height: 44 mm</li> <li>Weight: 3.5 kg</li> </ul> <h3>Power</h3> <ul><li>Nominal input voltage: 250 V</li> <li>Maximum current: 16 A</li> <li>AC input frequency: 50 - 60 Hz</li> <li>Nominal output voltage: 220-240 V</li> <li>Output voltage: 300 V</li> <li>Load capacity: 3680 VA</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 50 °C</li> <li>Operating relative humidity (H-H): 0 - 90%</li> <li>Operating altitude: 0 - 1000 m</li> </ul> <h3>Packaging data</h3> <ul><li>Package type: Box</li> </ul> <h3>Certificates</h3> <ul><li>Certification: EN 55022 Class B EN 61000-3-2 EN 61000-3-3 EN 55024 EN60950-1</li> </ul> <h3>Design</h3> <ul><li>Rack capacity: 1U</li> <li>Mounting: Horizontal</li> <li>Product colour: Black</li> <li>Display: LCD</li> <li>On/off switch: Yes</li> </ul> <h3>Features</h3> <ul><li>LED indicators: Yes</li> </ul>
