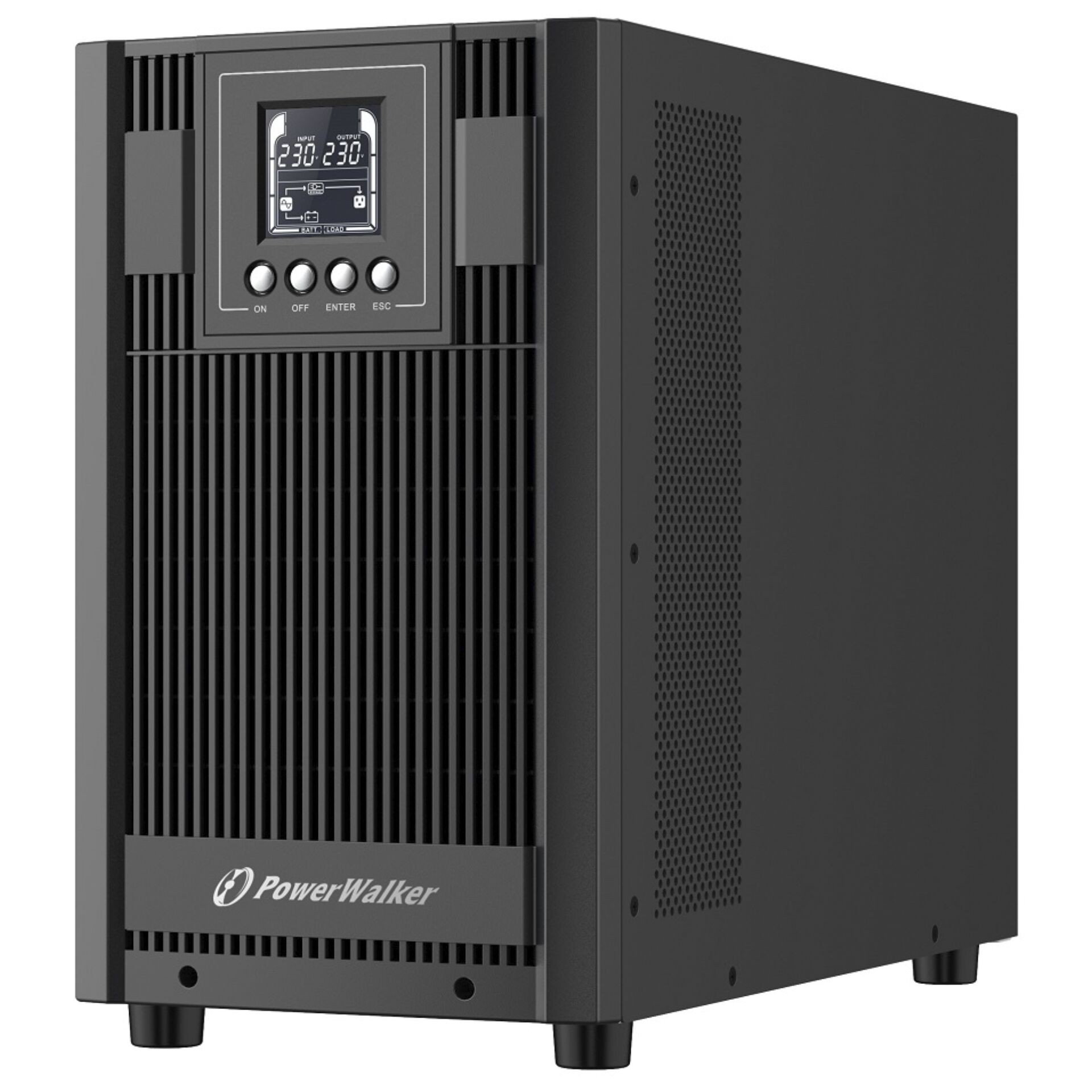

PowerWalker VFI 3000 AT uninterruptible power supply (UPS) Double-

Beschreibung

<p><b>PowerWalker VFI 3000 AT</b><br><br>PowerWalker VFI 1000-3000 AT is an Online UPS series with double conversion technology, designed to safeguard your mission-critical equipment. Despite its professional application, the VFI AT series is easy to operate and comes inside a compact and economic package. Rather uniquely among Online UPS, the VFI AT series features outlet sockets for Type F, Type E and Type G plugs. This broadens its usability and allows for different types of application. Multiple optional accessories such as external battery packs and communication cards, enhance the functionality of the UPS and allow for a greater backup time.</p> <h3>Ports &amp; interfaces</h3> <ul><li>AC outlet types: Terminal, Type F</li> <li>Power plug: C20 coupler</li> <li>AC outlets quantity: 4 AC outlet(s)</li> <li>USB port: Yes</li> <li>USB 2.0 ports quantity: 1</li> <li>USB port type: USB Type-B</li> <li>RS-232 ports: 1</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 196 mm</li> <li>Depth: 416 mm</li> <li>Height: 342 mm</li> <li>Weight: 21 kg</li> <li>Package width: 294 mm</li> <li>Package depth: 512 mm</li> <li>Package height: 458 mm</li> <li>Package weight: 27.7 kg</li> </ul> <h3>Operational conditions</h3> <ul><li>Operating temperature (T-T): 0 - 40 °C</li> <li>Operating relative humidity (H-H): 20 - 90%</li> </ul> <h3>Battery</h3> <ul><li>Battery capacity: 9 Ah</li> <li>Battery voltage: 12 V</li> <li>Number of batteries supported: 6</li> </ul> <h3>Design</h3> <ul><li>Form factor: Tower</li> <li>Product colour: Black</li> <li>Built-in fan: Yes</li> <li>Display type: LCD</li> </ul> <h3>Features</h3> <ul><li>UPS topology: Double-conversion (Online)</li> <li>Output power capacity: 3 kVA</li> <li>Output power: 2700 W</li> <li>Waveform: Pure sine</li> <li>Input operation voltage (min): 80 V</li> <li>Input operation voltage (max): 300 V</li> <li>Input frequency: 40/70 Hz</li> <li>Output operation voltage (min): 208 V</li> <li>Output operation voltage (max): 240 V</li> <li>Output frequency regulation: -0.5 - 0.5 Hz</li> <li>Output voltage regulation: -1 - 1%</li> <li>Automatic Voltage Regulation (AVR): Yes</li> <li>Input power factor: 0.99</li> <li>Output power factor: 0.9</li> <li>Crest factor: 3:1</li> <li>Emergency Power Off (EPO): Yes</li> <li>Output voltage Total Harmonic Distortion (THD): 5%</li> <li>Surge protection: Yes</li> </ul> <h3>Logistics data</h3> <ul><li>Harmonized System (HS) code: 85078000</li> </ul>
