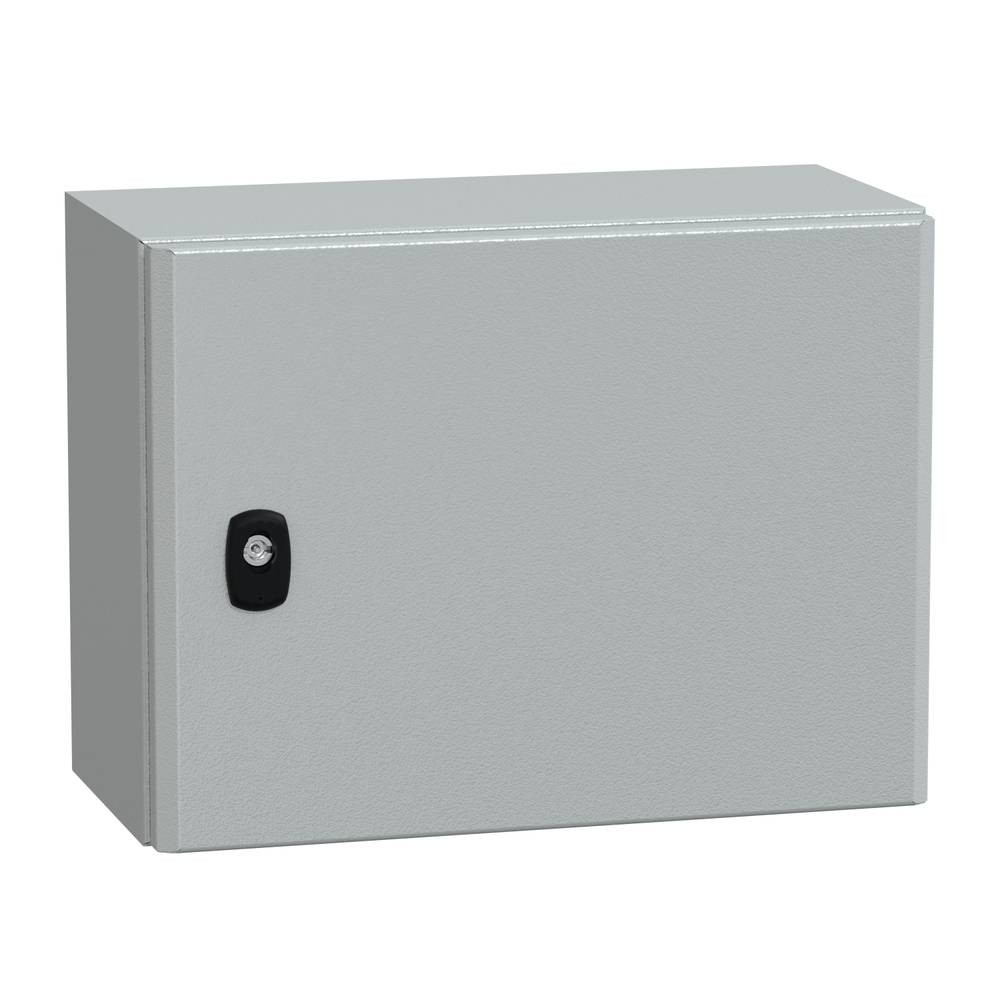

Schneider Electric NSYS3D3420P - Schneider Electric NSYS3D3420P, 400

Beschreibung

<p>- One-piece folded and welded body, double plate thickness gutter shaped front profile. Flat rear panel.<br>- Degree of protection: IP 66 for all single door enclosures, IP 55 for double door enclosures.<br>- A light and resistant enclosure with folded cross structure sheet steel.<br>- External mechanical impact resistance: IK 10 for enclosures with plain door, IK 08 for enclosures with glazed door.<br>- Time saving : 54 dimensions with or without plain chassis, customized offer, wide range of accessories...<br>- Wide range of sizes : from 300X200X150 to 1400X1000X300.<br>- Choice : plain door or glazed door.<br>- Paint finish : colour grey RAL 7035.<br>- Certifications : EN 62208 (LCIE), UL, CUL, BV, DNV, LR, GL, ATEX (modified enclosure).<br><br><b>A complete range of enclosures that can be equipped with modular chassis comprising 10 references from 24 to 240 modules :</b><br>- Spacial S3DB Terminals enclosure.<br>- An offer developed for centralization and transmission of signals in industrial installations or on machines.<br>And also...<br><br>- Spacial S3CM Control and dialogue system.<br>- CaSys VDM 19" network and electronics enclosure.<br><br>Enclosures Spare Parts<br>Schneider Electric selected a wide variety of spare parts for your enclosure. No matter if the enclosure is recently built or has several years, you can have the replacement parts you need.<br><br><b>Your ideal universal enclosure designed for time saving !</b><br><br>Global approach universal enclosure with dedicated accessories regarding the application.<br>Optimized approach regarding the application with Spacial S3D dedicated enclosure (dimensions) with dedicated accessories.<br>Customization services (configurated offer and specific solutions).<br>Water tightness :<br>IP66 for single door and IP55 for double door.<br>Ruggedness :<br>IK 10 for plain door and IK08 for glazed door.<br>Durable : with high UV resistance, treated hinges, aluminium hinge pins.<br>Smart : Door easily removable and reversible with double thickness 20 mm return fold for excellent rigidity, 120° opening, 2 or 3 concealed hinges. 3 closure points from height 600 mm with single operating point. Simple reversal of linkage. Maximum loading: 50 kg/m2.<br>Choice (enclosures) :<br>- with or without plain chassis<br>- with plain or glazed door, double door range<br>- dedicated dimensions to applications.<br>Choice (accessories) :<br>- plain chassis, silk-screened chassis, micro perforated chassis, telequick perforated chassis, symmetrical chassis,<br>- steel cable gland plate with grid pattern, steel cable gland plate with knock-outs aluminium cable gland plate cable gland plate with membranes.<br>Smart : hinges easily released and captive for easier door removal and door reversal. Wide choice of inserts.<br>Attractive : chamfered door edge, plasma welded, paint epoxy-polyester colour RAL 7035.<br>Adaptable : These enclosures can be supplied on request with :<br>- alternative colours,<br>- accessories pre-mounted,<br>- special machining,<br>- other dimensions,<br>- alternative finishes (zinc chromate, metallization, etc.)<br>Safety for people : 2 welded earth studs (on door and body).<br>Time saving :<br>- 4 welded back studs shouldered 10mm for direct mounting of chassis,<br>- Wall mounting brackets fixed from the outside<br>- Wide choice of cable gland plate that can be equipped with quick cable entrance.<br>- Wide choice of chassis (silk-screened chassis, micro-perforated chassis, perforated chassis ....).<br>Services : Colours, dimensions, mounting of accessories through or customized service (configurated and specific offer).</p> <h3>Technical details</h3> <ul><li>Product colour: Grey</li> <li>Material: Galvanized steel, Steel</li> <li>International Protection (IP) code: IP66</li> </ul> <h3>Weight &amp; dimensions</h3> <ul><li>Width: 400 mm</li> <li>Depth: 200 mm</li> <li>Height: 300 mm</li> </ul> <h3>Packaging data</h3> <ul><li>Package weight: 6.8 kg</li> </ul>
