STMicroelectronics 3-Axis Surface Mount AccelerometerLGAI2CSPI14-Pin -

Beschreibung

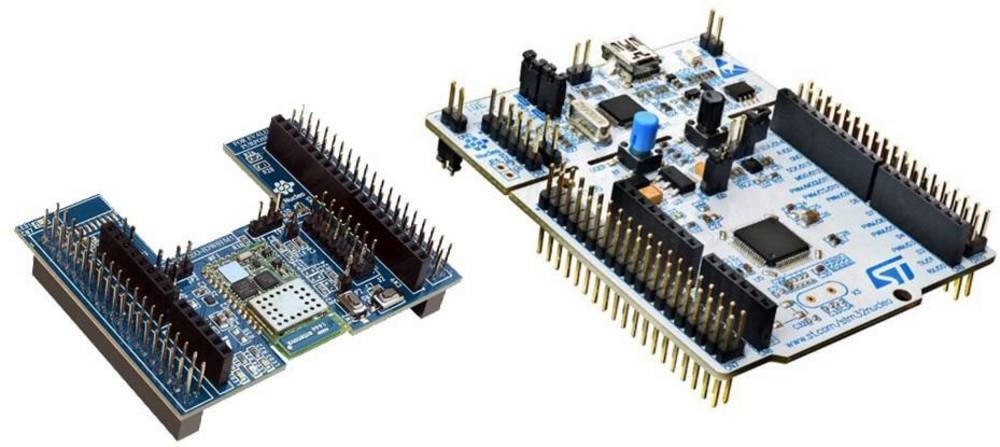

<p>NUCLEO-L476RG Nucleo-64 Development Board<br>From StMicroelectronics, the NUCLEO-L476RG development board features an ultra-low power Arm Cortex M4 STM32L476RGT6 microcontroller in an LQFP64 package. This development board enables you to easily build and evaluate prototypes. The microcontroller features a set of power saving modes that will help you to prototype designs with power consumption limitations.<br>Arduino Uno v3 and ST morpho headers allow you to easily connect with a range of specialised shields and vastly expand the functionality of your development board.<br>A Floating Point Unit (FPU) supports all ARM single precision data-processing instructions and data types. This STM32 development board also has an MPU (Memory Protection Unit) which significantly enhances the security of your applications.<br>The NUCLEO-L476RG has an integrated ST-LINK/V2-1 debugger and programmer which is provided with preinstalled HAL Library software and other packaged software. Tools such as ARM mbed on-line resources mean that you can start developing prototypes immediately. This board is also supported by other IDEs (Integrated Development Environments) such as GCC-based IDEs, IAR and Keil.<br>What's on board?<br> STM32L476RGT6 80MHz Cortex-M4F core microcontroller with 1 MB Flash memory, 128 KB SRAM<br> Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory<br> LCD driver for 8 40 or 4 44 segments with step-up converter<br> Up to 24 capacitive sensing channels: supporting touchkey, linear and rotary touch sensors<br> Up to 18 serial communication interfaces: USART, IrDA, IC, SPI, QSPI, SAI, CAN, USB, SDIO, SWPMI<br> True random number generator<br> CRC calculation unit<br> Real-Time clock and calendar<br> 96-bit unique ID<br> Arduino Uno v3 connectivity support<br> ST morpho extension pin headers for access to STM32 I/Os<br> ST-LINK/V2-1 debugger/programmer with SWD connector<br> Flexible board power supply<br> USB OTG or FS Device with micro-AB connector<br> 4 x filters for sigma delta modulator<br> 3 x LEDs: power LED, USB communication, user LED<br> 2 x pushbuttons (user and reset)<br> 32.768 KHz crystal oscillator<br> ARM mbed Enabled (mbed.org)<br> Supports BAM (Batch Acquisition Mode)<br> Power supply from 1.71 V to 3.6 V<br> Brown out reset (BOR)<br>STM32L4 Series 32-Bit ARMCortex-M4 Microcontrollers, STMicroelectronics<br>The STM32L4 series of ultra-low-power microcontrollers deliver 100DMIPS based on its ARMCortex-M4 core with Floating Point Unit (FPU) and ST ART Accelerator at 80MHz.<br>STM32L4 microcontrollers offer dynamic voltage scaling to balance power consumption with processing demand, low-power peripherals available in Stop mode, safety and security features.<br>Up to 1MB Flash Memory<br>LCD 8x40 or 4x44 with step-up converter<br>USB OTG 2.0 full-speed</p>
