Beschreibung

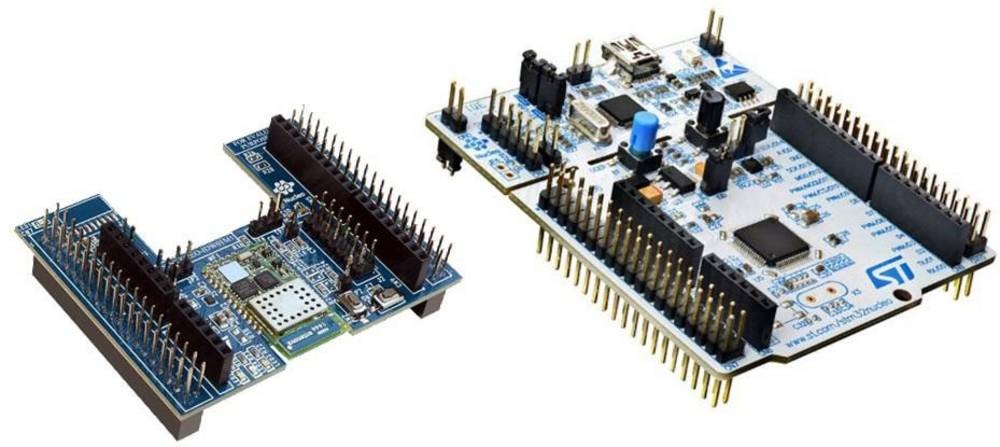

<p>NUCLEO-L053R8 Nucleo-64 Development Board<br>This STM32 Nucleo-64 board provides an affordable and flexible way for users to build prototypes with the ultra-low power STM32L053R8T6 microcontroller. The Arduino Shield connector provides access to more peripherals and with the ST morpho headers expands the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed.<br> STM32L053R8T6 32MHz Cortex-M0+ core microcontroller with 64KB ECC Flash memory, 8KB RAM, 2KB ECC EEPROM<br> Real-Time Clock<br> Serial communication interfaces: USART, SPI, IC, USB<br> CRC calculation unit<br> 96-bit unique ID<br> True Random Number Generator and Firewall protection<br> Arduino Uno v3 connectivity support<br> ST morpho extension pin headers for access to all GPIO<br> On-board ST-LINK/V2-1 debugger/programmer with SWD connector<br> Flexible board power supply<br> 3 x LEDs: USB communication, Power and User<br> Reset pushbutton<br> ARM mbed Enabled (see http://mbed.org)<br>STM32L0 Series 32-Bit ARMCortex-M0+ Microcontrollers, STMicroelectronics<br>The STM32 L0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex-M0+ core; a core specifically developed for embedded applications. STMicroelectronicss STM32 ARM Cortex M processor benefits from the Cortex-M0+ architectural enhancements including digital signal processing, real-time performance, low voltage and ultra low power. STs ARMSTM32 L0 ultra-low power series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.</p>
