DIGITUS

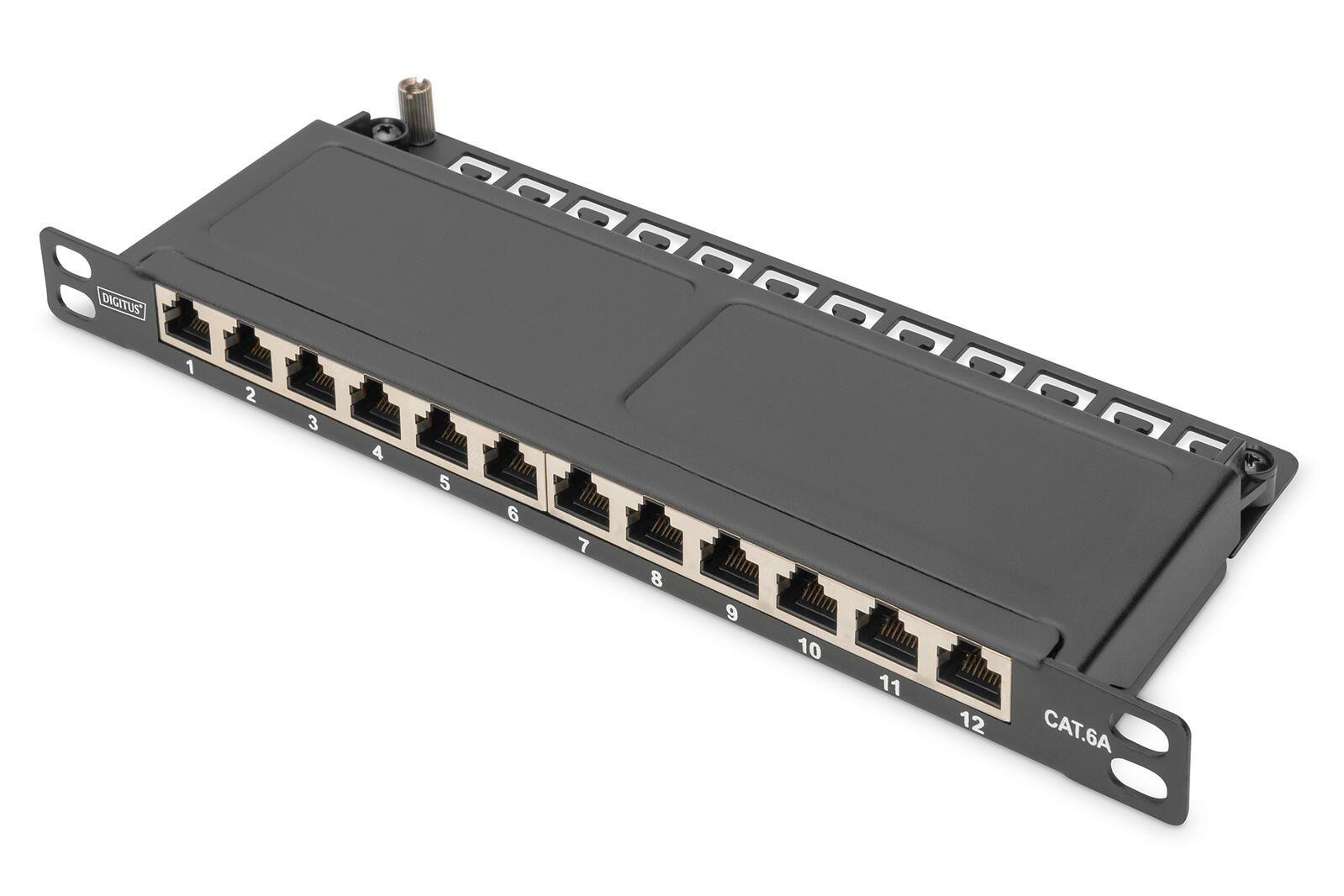

Digitus CAT 6A Slim Patch Panel, shielded, 12-port, 0.5 U, 10", black
Very space-saving (only 0.5U) - future-oriented standards and high-end quality for your network - Slim installation height of only 0.5 U - Complete shielding of housing and shield contacting - Cable installation via LSA strips - Central earthing connection - Dielectric strength up to 1500 VDC (contact / ground) - PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+ - 360° shield contacting - Quick-release fastener to secure the housing cover - Wall mounting possible The DIGITUS® 12-Port Patch Panel offers a very high packing density with only 0.5 U. This means that up to 24 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals. It complies with the 802.3at PoE+ and the 802.3af PoE standard. Operational conditions Operating temperature (T-T): -20 - 70 °C Network Ports quantity: 12 Networking standards: IEEE 802.3af, IEEE 802.3at Cabling technology: 10Base-T Cable types supported: Cat6a AWG wire size: 26/22 Packaging data Package width: 60 mm Package depth: 260 mm Package weight: 890 g Package volume: 1872 cm³ Design Mounting: Rack mounting Rack capacity: 1U/2U Product colour: Black Material: Steel Logistics data Country of origin: China Harmonized System (HS) code: 85371098 UK Trade Tariff code: 85369010Visa mer
Erbjudande
Alla priser inkl. moms; frakt enligt butikens feed. Klicket leder direkt till produktsidan i butiken.
Produktdetaljer
- Märken
- DIGITUS
- GTIN
- 04016032473176
